Remove/install engine oil cooler - AR18.30-P-1000MNA
ENGINE 177 in MODEL 205
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove lower engine compartment paneling | AR61.20-P-1105LW | |
| 2 | Remove screw/bolts (4, 5) | *BA18.30-P-1006-01N | |
| 3 | Detach oil line (2) from engine oil cooler (1) and allow engine oil to drain off | ||
| 4 | Detach oil line (3) from engine oil cooler (1) | ||

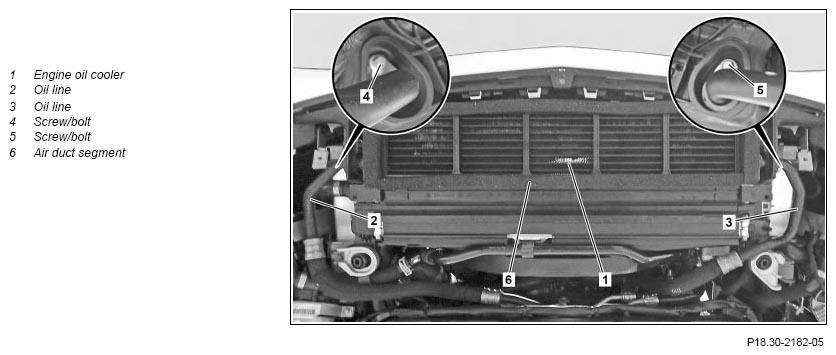

| 5 | Close off openings of oil lines (2, 3) and engine oil cooler (1) with stop plugs | Fig 2 | |
| 6 | Unclip engine oil cooler (1) from retaining frame on radiator package | ||
| 7 | Remove engine oil cooler (1) downwards | ||
| 8 | Detach air duct segment (6) on engine oil cooler (1) | When replacing engine oil cooler (1) | |
| 9 | Install in the reverse order | ||
| 10 | Check engine oil level and correct | ||
| AP18.00-P-0101D | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run and check engine for leaktightness while it is running |
OIL COOLING
| Number | Designation | ENGINE 177.980 | |
|---|---|---|---|
| BA18.30-P-1006-01N | Bolt, oil line to front-end oil cooler | Nm | 8 |
