Remove/install divert air switchover valve - AR09.40-P-3000MNA
ENGINE 177 in MODEL 205
MODIFICATION NOTES
| 26.04.2016 | screw, change-over valve for forced-air circulation on intercooler | Motor 177 | BA09.41-P-1012-01X |
| Remove/install | |||

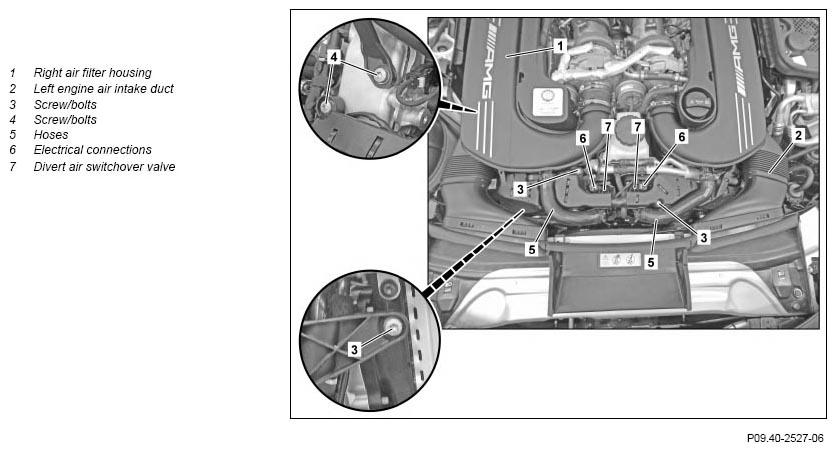

| 1 | Remove right air filter housing (1) | AR09.10-P-1150MNA | |
| 2 | Remove left engine intake air duct (2) | ||
| 3 | Remove screw/bolts (3) and engine wiring harness on left and right and left charge air cooler | ||
| 4 | Remove screw/bolts (4) and engine wiring harness on take off right cylinder head cover | *BA15.18-P-1001-01G | |
| 5 | Remove hoses (5) | Figure | |
| 6 | Unclip vacuum line at right on charge air cooler and place to one side | When removing right-hand divert air switchover valve (7) | |
| 7 | Separate electrical connections (6) | ||
| 8 | Remove screw/bolts on right or left divert air switchover valve (7) | *BA09.41-P-1012-01X | |
| 9 | Take out the right or left divert air switchover valve (7) in the upward direction | ||
| 10 | Install in the reverse order | ||
| 11 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1012-01X | Screw/bolt, bypass air switchover valve to charge air cooler | Nm | 8 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.18-P-1001-01G | Bolt, engine wiring harness to cylinder head cover | Nm | 9 |
