Remove/install left water-cooled charge air cooler - AR09.41-P-6827MNA
ENGINE 177 in MODEL 205
MODIFICATION NOTES
| 20.8.15 | Screw/nut pressure transducer to bracket / intercooler | Motor 177 | BA09.41-P-1009-01X |
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| Remove/install | |||
| 1 | Drain coolant from full-flow radiator | AR20.00-P-1142LW | |
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNA | |
| 3 | Drain air conditioning system | AR83.30-P-1760LW | |
| 4 | Remove left-hand air filter housing | AR09.10-P-1150MNA | |
| 5 | Remove right air filter housing | AR09.10-P-1150MNA | |

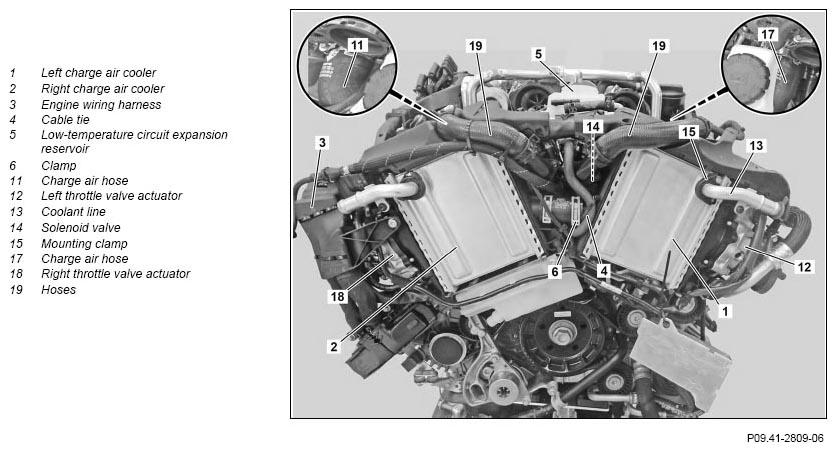

| 6 | Detach hoses (19) at left and right charge air cooler (1, 2) | Figure | |
| 7 | Remove fan unit | AR20.40-P-5050MNA | |
| 8 | Detach both coolant hoses on full-flow radiator | AR20.20-P-7441-01RQ | |
| 9 | Detach both coolant hoses at radiator for low-temperature water circuit | AR20.20-P-7441-01RQ | |
| 10 | Disconnect electrical connection on pressure sensor of the condenser of the A/C | AR83.30-P-6540LWA | |
| 11 | Detach both refrigerant lines at condenser and close off openings with grommets | AR83.30-P-6540LWA | |
| 12 | Unclip engine oil cooler and fix with attached lines outside the working area | AR18.30-P-1000MNA | |
| 13 | Remove radiator package completely upwards | ||
| 14 | Detach low-temperature circuit expansion reservoir (5) and place to one side with connected hoses | AR09.41-P-0001MNA | |

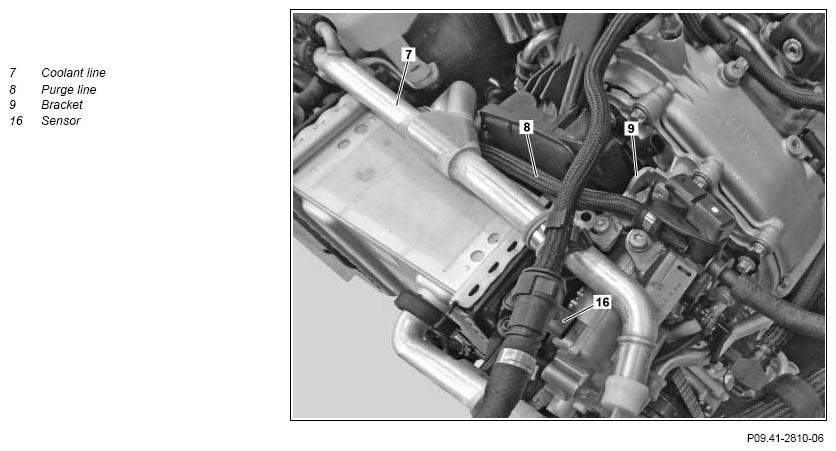

| 15 | Remove coolant line (7) | AR20.20-P-7442MNA | |
| 16 | Disconnect engine wiring harness (3) | AR01.00-P-2410-02MNA | |
| 17 | Disconnect cable tie (4) | ||
| 18 | Detach purge line (8) on bracket (9) | *BA09.41-P-1009-01X | |
| 19 | Open clamp (6) and push in the direction of the right charge air cooler (2) | Figure | |
| 20 | Unfasten mounting clamp of the charge air hose (11) on right charge air cooler (2) | ||
| 21 | Unfasten mounting clamp of the charge air hose (17) on left charge air cooler (1) | ||
| 22 | Remove bracket (9) | *BA09.41-P-1006-01X | |
| 23 | Detach bracket of the right charge air cooler (2) on right front cover of the cylinder head | *BA09.41-P-1006-01X | |
| 24 | Unfasten mounting clamps on left throttle valve actuator (12) and right throttle valve actuator (18) | ||
| 25 | Carefully take out left charge air cooler (1) and right charge air cooler (2) upwards from the brackets and left charge air cooler (1) to the front | ||
| 26 | Remove sensor (16) | When replacing the left charge air cooler (1) | AR09.41-P-0003MNA |
| 27 | Detach left throttle valve actuator (12) from left charge air cooler (1) | When replacing the left charge air cooler (1) | AR09.41-P-1330MNA |
| 28 | Open mounting clamp (15) and remove coolant line (13) from left charge air cooler (1) | When replacing the left charge air cooler (1) |
|
| 29 | Detach solenoid valve (14) from charge air cooler (1) | When replacing the left charge air cooler (1) |
AR09.40-P-3000MNA |
| 30 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1006-01X | Bolt, upper charge air cooler bracket to charge air cooler/chain case cover | Nm | 9 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1009-01X | Bolt/nut, pressure transducer to bracket/charge air cooler | Nm | 6 |
