Wiper/Washer System Location Index (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

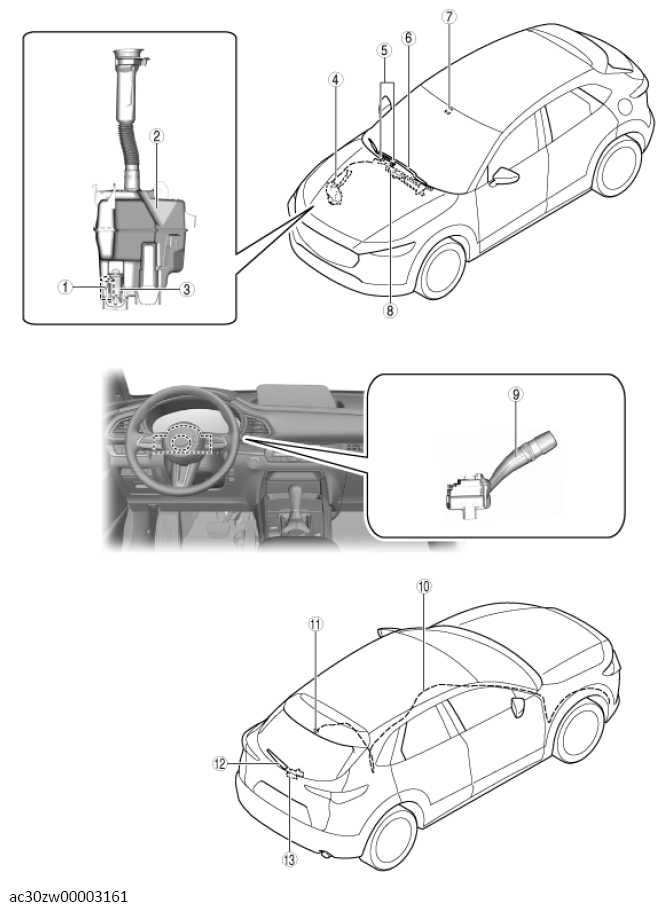

COMPONENT DESCRIPTION

1	Washer fluid-level sensor (with washer fluid-level sensor) (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .) (See WASHER FLUID-LEVEL SENSOR INSPECTION .)
2	Washer tank (See WASHER TANK REMOVAL/INSTALLATION (US) .) (See WASHER FLUID LEVEL INSPECTION .)
3	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION .) (See WASHER MOTOR INSPECTION .)
4	Windshield washer hose (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION (US) .)
5	Windshield washer nozzle (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .) (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
6	Windshield wiper ami and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER BLADE AND RUBBER REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER ARM AND BLADE INITIAL SETTING .)
7	Rain sensor (with auto wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .) (See RAIN SENSOR INSPECTION .)
8	Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER MOTOR AND LINK INSPECTION .)
9	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .) (See WIPER AND WASHER SWITCH INSPECTION .)
10	Rear washer hose (See REAR WASHER HOSE REMOVAL/INSTALLATION (US) .)
11	Rear washer nozzle (See REAR WASHER NOZZLE REMOVAL/INSTALLATION .) (See REAR WASHER NOZZLE ADJUSTMENT .)
12	Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See REAR WIPER ARM AND BLADE ADJUSTMENT .)
13	Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION .) (See REAR WIPER MOTOR INSPECTION .)
