Rear Washer Nozzle Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
- Rear spoiler (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)

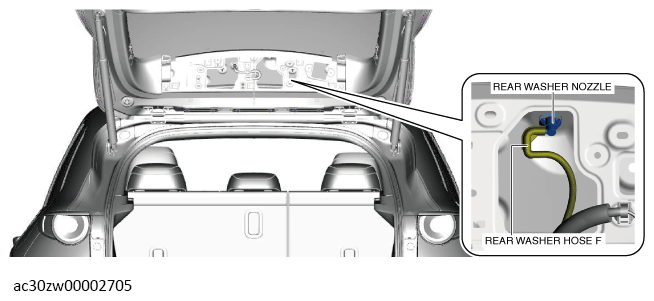

- Disconnect the rear washer hose F from the rear washer nozzle.

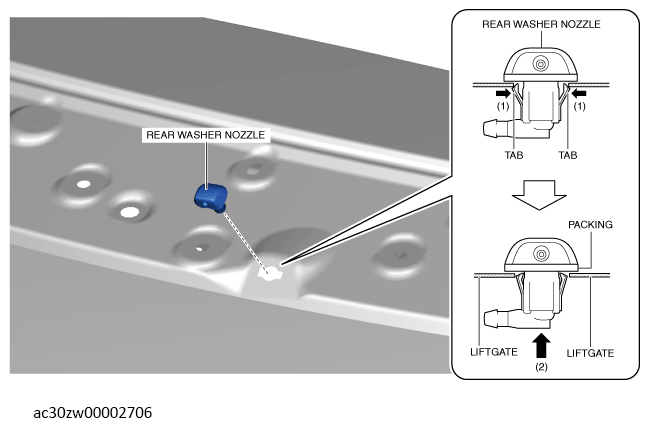

- Press out the rear washer nozzle in the direction of the arrow (2) shown in the illustration while pressing the rear washer nozzle tabs in the direction of the arrows (1) shown in the illustration.
- Remove the rear washer nozzle.
- Install in the reverse order of removal.
- Adjust the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT .)
