Rear Wiper Arm And Blade Adjustment
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Switch the ignition ON (engine off or on).
- Operate the rear wiper.
- Verify that the rear wiper is operating and stop the rear wiper.
- Verify that the rear wiper is stopped at the auto-stop position.
- Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)

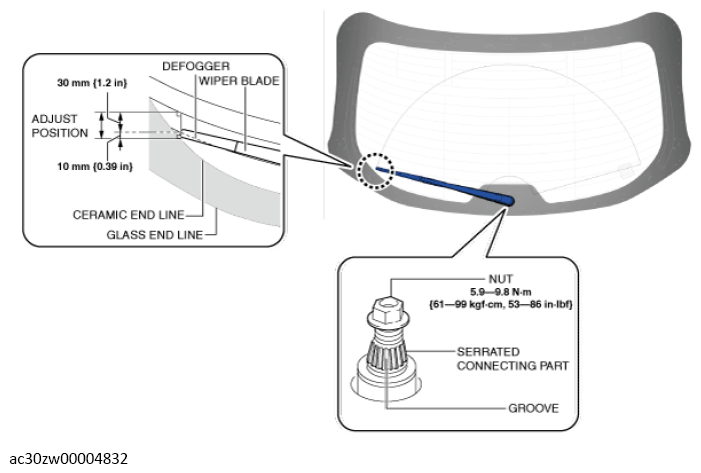

- Install the rear wiper arm to the serrated connecting part, adjust the rear wiper blade end to the area shown in the illustration while sliding the rear wiper arm onto the grooves of the serrated connecting part one by one, and temporarily tighten the nut.
Courtesy of MAZDA MOTORS CORP.
- If the rear wiper arm and blade is not installed to the position shown in the illustration, repeat the adjustment procedure.
- Tighten the nut completely.
