Windshield Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the nozzle angle is adjusted with excessive force by inserting a needle or similar thin tool into the injection nozzle, it could damage the nozzle internally. When adjusting the nozzle, be careful not to apply excessive force.

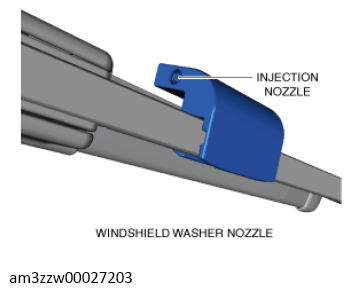

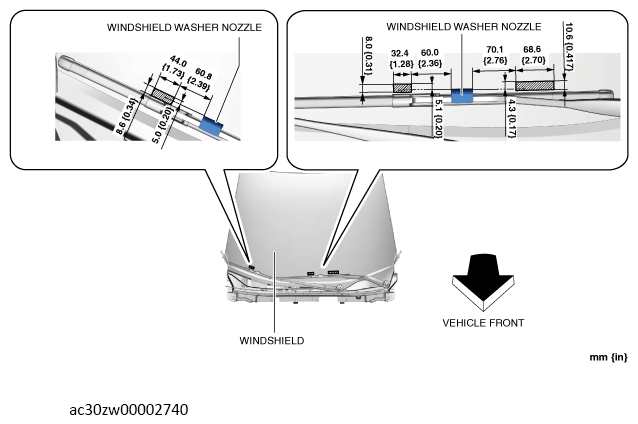

Insert a needle or similar thin tool into the injection nozzle of the windshield washer nozzle and adjust the area where washer fluid is sprayed as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
