Windshield Washer Nozzle Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

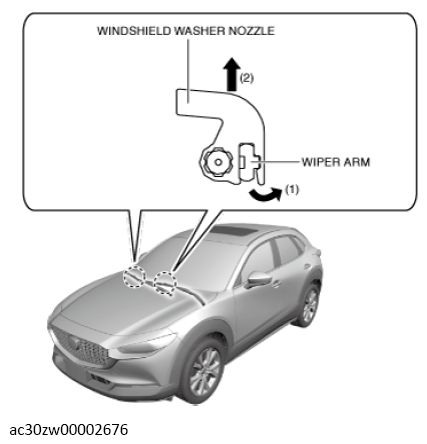

- Remove the windshield washer nozzle in the direction of the arrow (2) shown in the illustration while pressing the windshield washer nozzle tabs in the direction of the arrows (1) shown in the illustration.

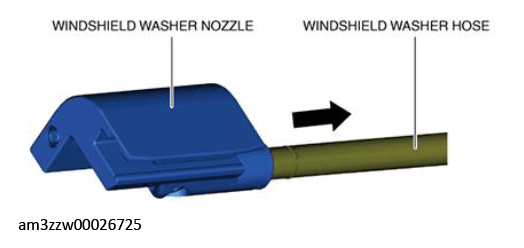

- Disconnect the windshield washer hose from the windshield washer nozzle.
- Remove the windshield washer nozzle.
- Install in the reverse order of removal.
- Adjust the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
