Rear Wiper Motor Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Door lock switch (liftgate) (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .)
    6. Power liftgate (PLG) rear switch (with power liftgate (PLG) rear switch) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    7. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.

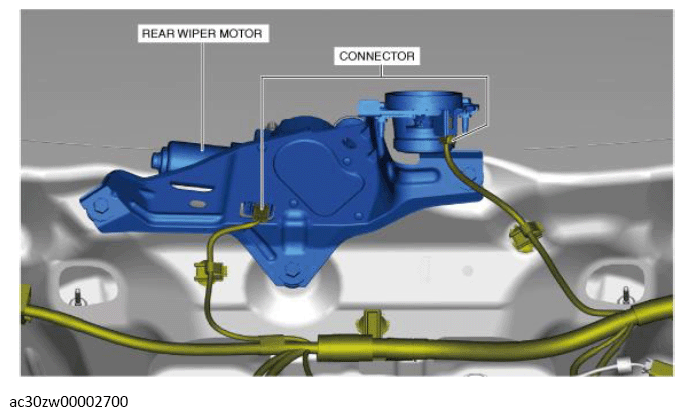

    G13560959Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

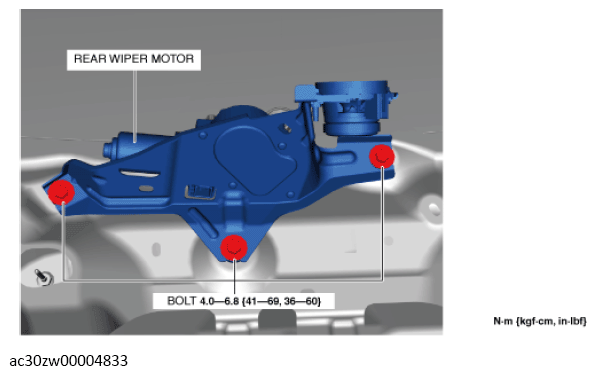

    Fig 1: Rear Wiper Motor And Bolts With Torque Specification
    G13560960Courtesy of MAZDA MOTORS CORP.
  5. Pull out the rear wiper motor pin from the outer bushing and remove the rear wiper motor.

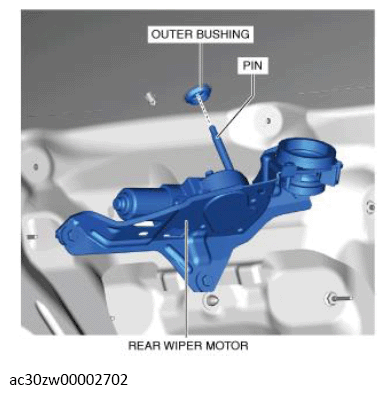

    G13560961Courtesy of MAZDA MOTORS CORP.
  6. Press in the outer bushing from the outside of the liftgate.

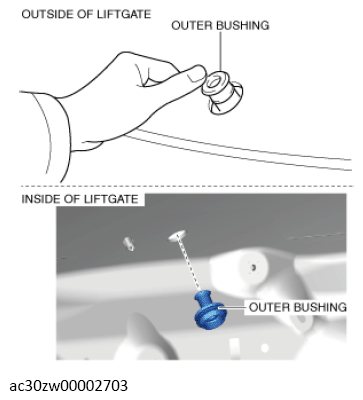

    G13560962Courtesy of MAZDA MOTORS CORP.
  7. Pull the outer bushing from the inside of the liftgate and remove it.
  8. Install in the reverse order of removal.
