Rear Washer Nozzle Adjustment
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If the nozzle angle is adjusted with excessive force by inserting a needle or similar thin tool into the rear washer nozzle, it could damage the nozzle internally. When adjusting the rear washer nozzle, be careful not to apply excessive force.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
- Rear spoiler (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)

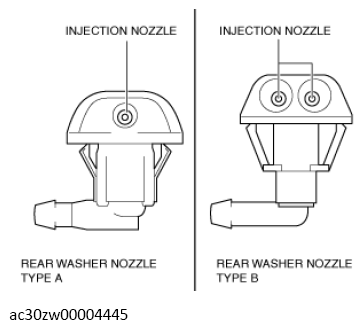

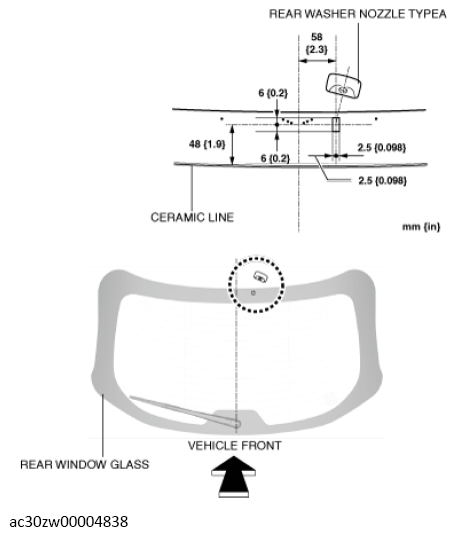

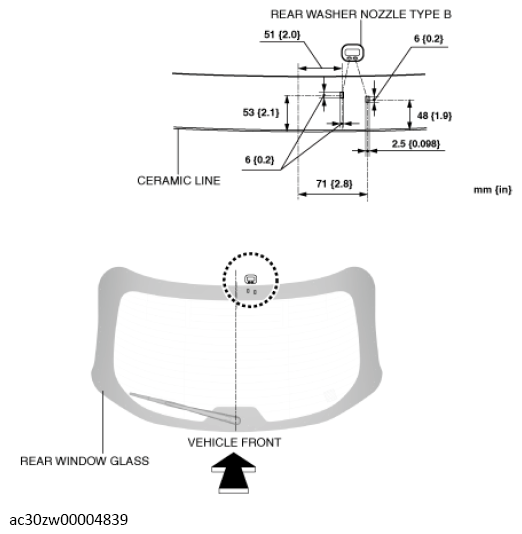

- Insert a needle or similar thin tool into the rear washer nozzle and adjust the area where washer fluid is sprayed as shown in the illustration.
