Washer Motor Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the front deflector (RH). (See DEFLECTOR REMOVAL/INSTALLATION .)
  4. Remove the fasteners.

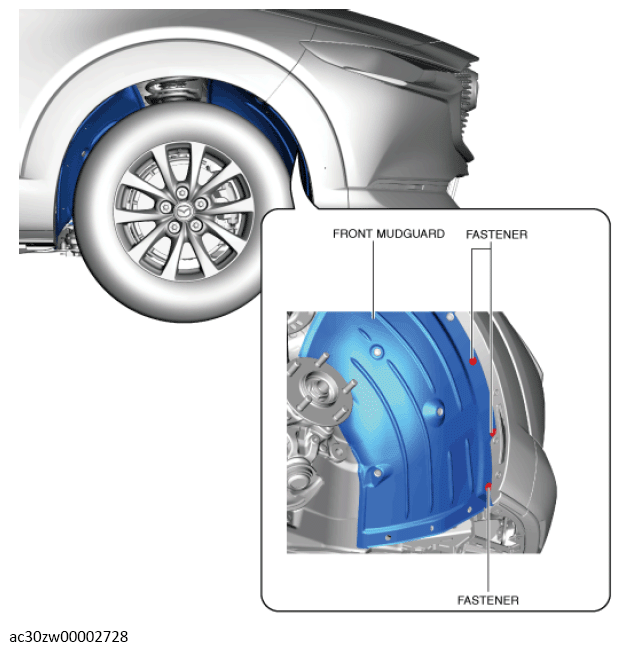

    G13560972Courtesy of MAZDA MOTORS CORP.
  5. Set the front mudguard (RH) aside.
  6. Disconnect the connector.

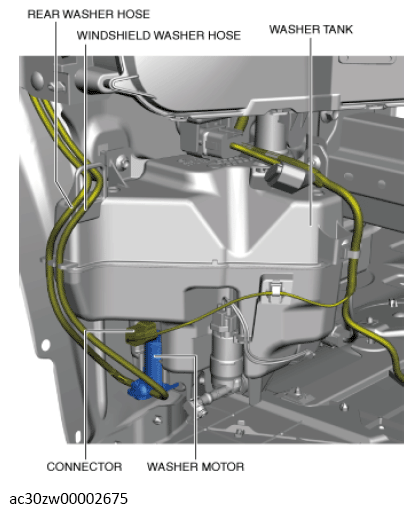

    G13560973Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the washer hose from the washer motor.
  8. Remove the washer motor in the direction of arrow shown in the illustration.

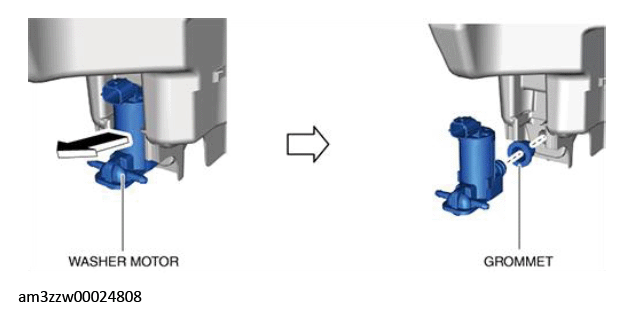

    G13179724Courtesy of MAZDA MOTORS CORP.
  9. Remove the grommet.
  10. Install in the reverse order of removal.
