Windshield Wiper Arm And Blade Initial Setting

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Connect the M-MDS to the DLC-2.
Switch the ignition ON (engine off or on).
Activate the M-MDS and perform the following procedure.
1. Press [Start] to start the vehicle identification.
2. Press the [Toolbox] tab.
3. Press the [Work Support] icon.
4. Press [WIPER/WASHER SYSTEM].
  NOTE:
  - When [Run] for [Calibrating Front Wiper position] is pressed, the windshield wipers operate and the driver's windshield wiper blade moves close to the A pillar.
5. Press [Run] for [Calibrating Front Wiper position].
6. Confirm the Calibrating Front Wiper position procedure from Step (7) to Step 11, and press [Next].
7. Verify that the ignition is switched ON (engine off or on) and press [Next].
  NOTE:
  - Perform the work from Step (8) to Step 7 within 10 min.
8. When [Carry out the position learning of the wiper according to the service procedures recommended in the workshop service information.] is displayed, move to the driver's windshield wiper arm and blade calibration procedure.
Lift the driver's windshield wiper blade by hand and lower it gently.

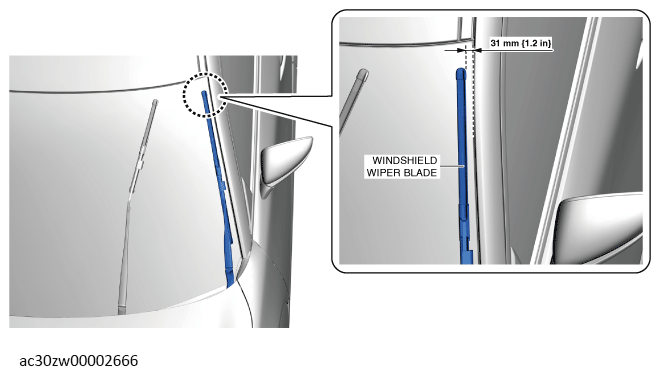

Verify that the driver's windshield wiper blade is at the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
- If the driver's windshield wiper blade is not at the position shown in the illustration, move the driver's windshield wiper arm by hand and adjust, and then return to Step 4.
Turn the light switch off. (With headlight cleaner)
NOTE:
- When [Calibrating Front Wiper position] is performed, the windshield wipers return to their initial positions.
Pull the windshield wiper switch 2 times and perform [Calibrating Front Wiper position].
Return to the M-MDS operation and press [Continue].
Switch the ignition OFF and press [Next].
Switch the ignition ON (engine off) and press [Next].
Press [Next] to complete [Calibrating Front Wiper position].
Inspect for DTCs. (See DTC INSPECTION .)
- If a DTC is detected, repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [BODY CONTROL MODULE (BCM) (US)] .)
