Body Panels Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

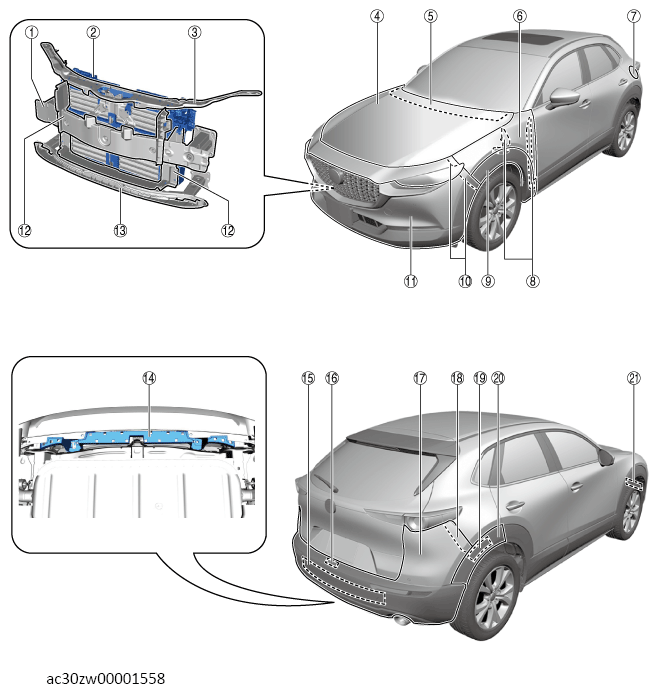

COMPONENT DESCRIPTION

1	Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
2	Shroud panel (See SHROUD PANEL REMOVAL/INSTALLATION (US) .)
3	Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION .)
4	Hood (See HOOD REMOVAL/INSTALLATION .) (See HOOD DISASSEMBLY/ASSEMBLY (US) .) (See HOOD ADJUSTMENT .)
5	Cowl panel (See COWL PANEL REMOVAL/INSTALLATION (US) .)
6	Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
7	Fuel-filler lid (See FUEL-FILLER LID REMOVAL/INSTALLATION .)
8	Front fender insulator (See FRONT FENDER INSULATOR NO. 1 REMOVAL/INSTALLATION .) (See FRONT FENDER INSULATOR NO. 2 REMOVAL/INSTALLATION .)
9	Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
10	Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION .)
11	Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .) (See FRONT BUMPER DISASSEMBLY/ASSEMBLY (US) .)
12	Intake air guide (See INTAKE AIR GUIDE REMOVAL/INSTALLATION (US) .)
13	Bumper stiffener lower (See BUMPER STIFFENER LOWER REMOVAL/INSTALLATION .)
14	Rear bumper stay (See REAR BUMPER STAY REMOVAL/INSTALLATION .)
15	Rear bumper reinforcement (See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
16	Rear bumper bracket (See REAR BUMPER BRACKET REMOVAL/INSTALLATION .)
17	Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION (US) .) (See REAR BUMPER DISASSEMBLY/ASSEMBLY (US) .)
18	Rear bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION .)
19	Rear over fender bracket (See REAR OVER FENDER BRACKET REMOVAL/INSTALLATION .)
20	Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION .)
21	Front fender stay (See FRONT FENDER STAY REMOVAL/INSTALLATION (US) .)
