Cowl Panel Removal/Installation (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
3. Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
4. Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)

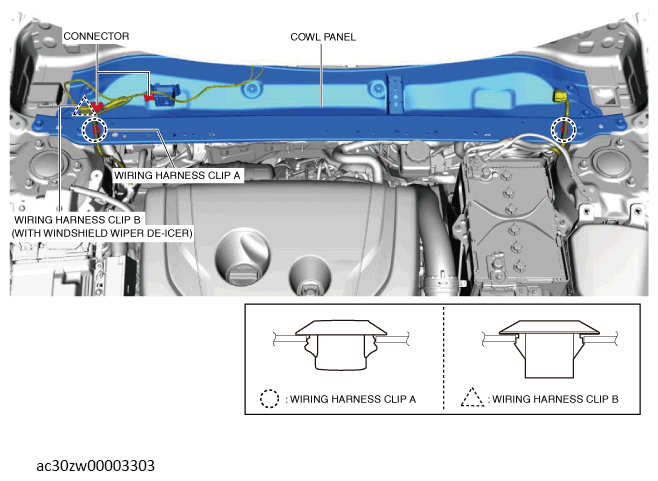

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove wiring harness clips A.
Remove wiring harness clip B. (with windshield wiper de-icer)

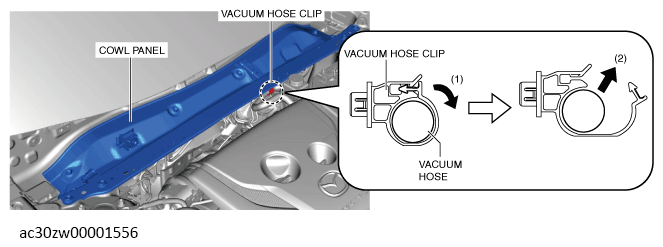

Open the vacuum hose clip in the direction of arrow (1) shown in the illustration and remove the vacuum hose in the direction of arrow (2).

Courtesy of MAZDA MOTORS CORP.

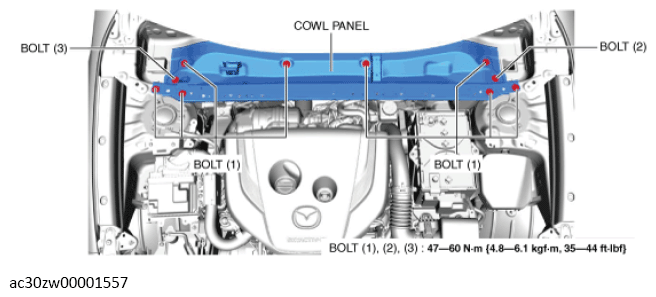

Remove the bolts shown in the illustration in the order of (1), (2) and (3).

Fig 1: Cowl Panel Bolts Loosening Sequence
Courtesy of MAZDA MOTORS CORP.
Remove the cowl panel.
NOTE:
- When replacing the cowl panel, remove the keyless beeper. (See KEYLESS BEEPER REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
