Bumper Stiffener Lower Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
  4. Slightly bend back the front under cover No. 1 and remove the bolts.

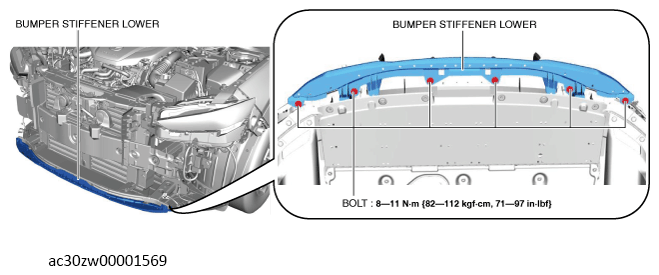

    Fig 1: Bumper Stiffener Lower Bolts With Torque Specification
    G13559813Courtesy of MAZDA MOTORS CORP.

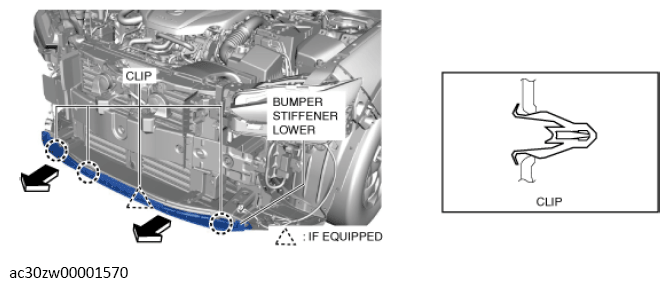

  5. Move the bumper stiffener lower in the direction of the arrows shown in the illustration and remove it toward the vehicle front while detaching the clips.
    G13559814Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
  8. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  9. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
