Shroud Upper Member Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Horn (See HORN REMOVAL/INSTALLATION .)
  3. Remove the hood release cable from clips. (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION (US) .)
  4. Remove the nuts.

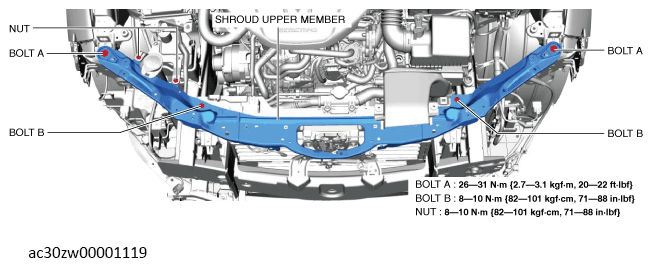

    Fig 1: Shroud Upper Member Bolts And Nuts With Torque Specification
    G13559920Courtesy of MAZDA MOTORS CORP.
  5. Remove bolts A and B.

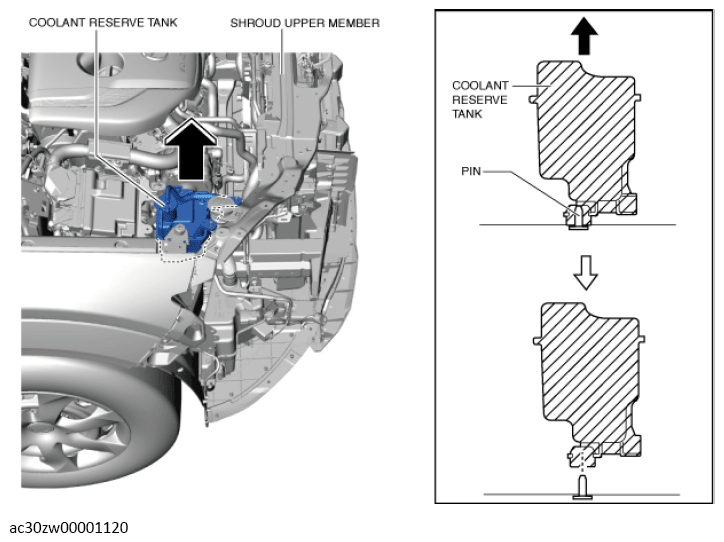

  6. Move the coolant reserve tank in the direction of the arrow shown in the illustration and detach the pin.
    G13559921Courtesy of MAZDA MOTORS CORP.

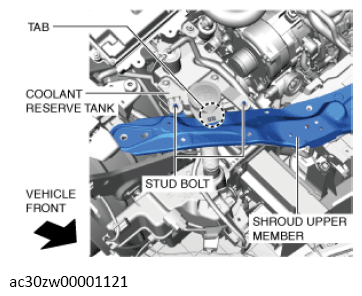

  7. Detach the tab from the shroud upper member.
    G13559922Courtesy of MAZDA MOTORS CORP.
  8. Pull out the coolant reserve tank from the stud bolts of the shroud upper member.

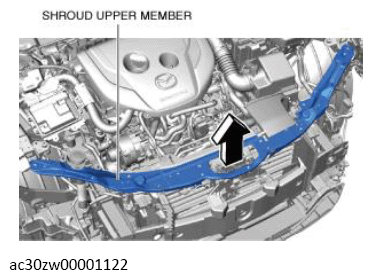

  9. Remove the shroud upper member in the direction of the arrow.
    G13559923Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
  11. Adjust the headlight aiming. (See HEADLIGHT AIMING (US) .)
  12. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
  13. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  14. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
