Hood Disassembly/Assembly (Us)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

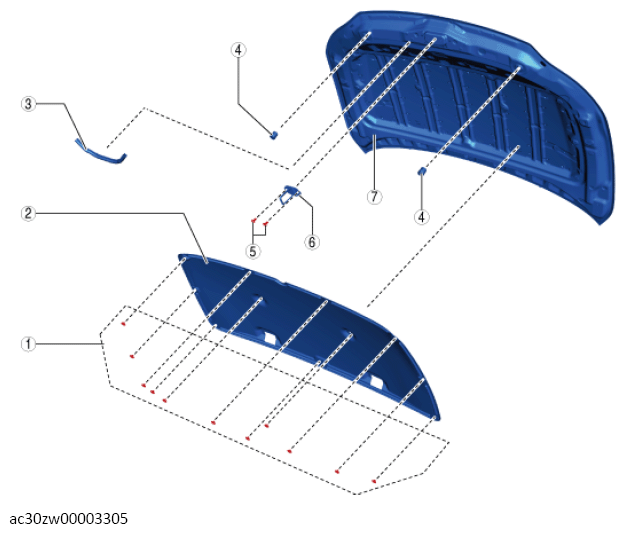

- Disassemble in the order indicated in the table.COMPONENT DESCRIPTION
1 Fastener 2 Hood insulator 3 Shroud seal weatherstrip 4 Stop rubber 5 Screw
(See HOOD STRIKER REMOVAL/INSTALLATION .)6 Hood striker
(See HOOD STRIKER REMOVAL/INSTALLATION .)7 Hood component - Assemble in the reverse order of disassembly.
