Shroud Panel Removal/Installation (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Lift up the vehicle.
  3. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  4. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  5. Lower the vehicle.
  6. Remove the following parts:
    1. Hood (See HOOD REMOVAL/INSTALLATION .)
    2. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
    3. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
    4. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    5. Horn (See HORN REMOVAL/INSTALLATION .)
    6. Intake air guide (upper) (See INTAKE AIR GUIDE REMOVAL/INSTALLATION (US) .)
    7. Intake air guide (lower) (See INTAKE AIR GUIDE REMOVAL/INSTALLATION (US) .)
      CAUTION:
      • The front bumper reinforcement supports the shroud panel. After removing the front bumper reinforcement, an excessive load applied to the shroud panel could result in damage. When removing the front bumper reinforcement, always use a floor jack to support the shroud panel.

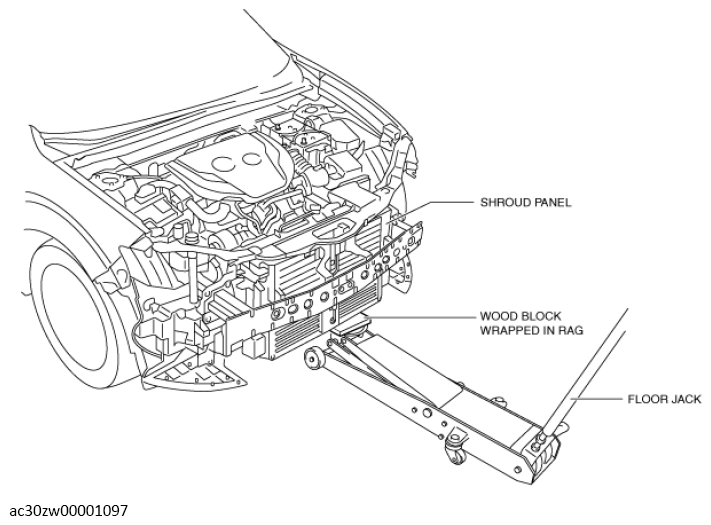

  7. Support the shroud panel using a floor jack.
    G13559909Courtesy of MAZDA MOTORS CORP.
  8. Remove the following parts:
    1. Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
    2. Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION .)
    3. Hood latch (See HOOD LATCH REMOVAL/INSTALLATION .)
    4. Crash zone sensor

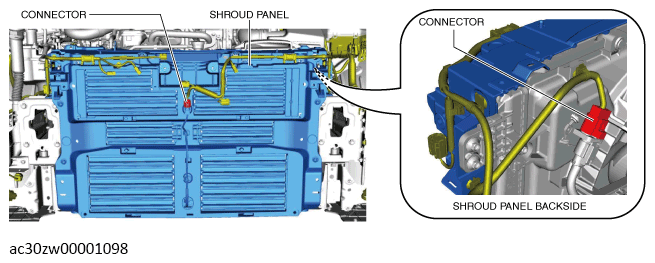

  9. Disconnect the connectors.
    G13559910Courtesy of MAZDA MOTORS CORP.

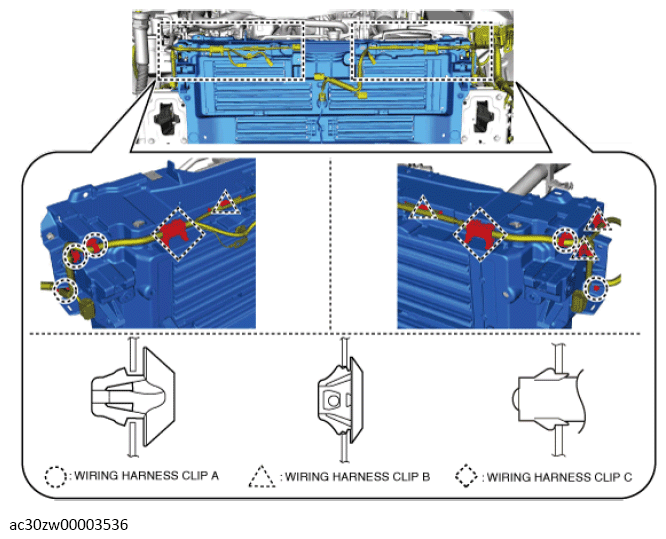

  10. Remove wiring harness clips A, B and C secured to the shroud panel.
    G13559911Courtesy of MAZDA MOTORS CORP.

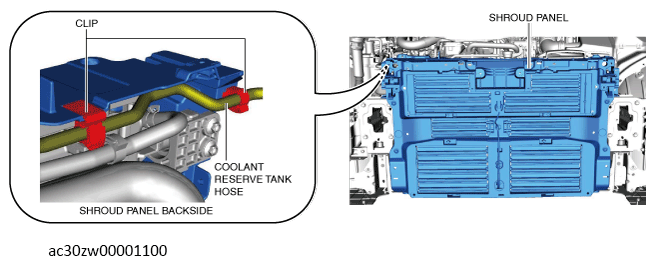

  11. Remove the clips from the shroud panel.
    G13559912Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Remove the radiator from the shroud panel using two people. Otherwise, the radiator may fall and cause injury.

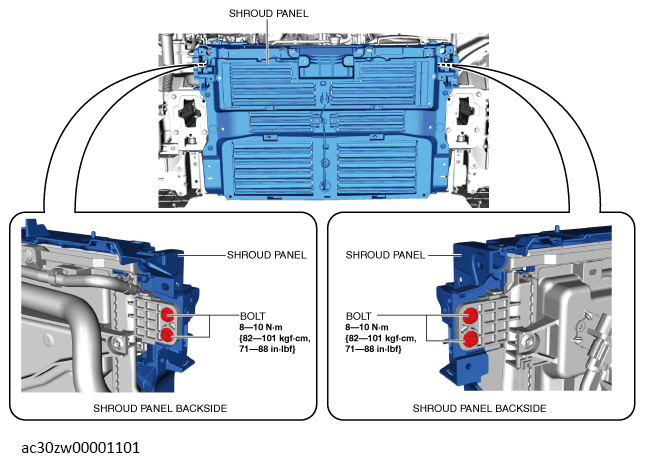

  12. Remove the bolts.
    Fig 1: Shroud Panel Bolts With Torque Specification
    G13559913Courtesy of MAZDA MOTORS CORP.
  13. Remove the floor jack which has supported the shroud panel.

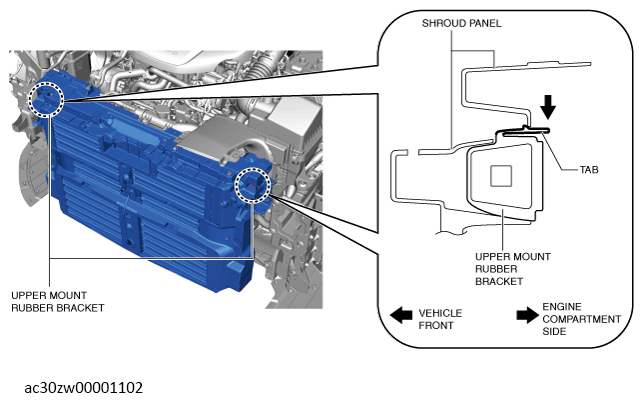

  14. Press down the tabs shown in the illustration in the direction of the arrow, pull out the upper mount rubber bracket toward the vehicle rear, and remove it.
    G13559914Courtesy of MAZDA MOTORS CORP.

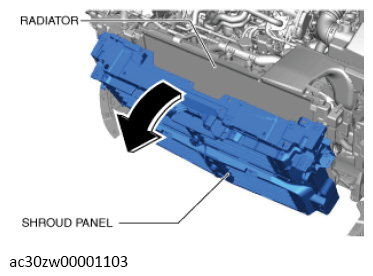

  15. Hold the upper part of the radiator by hand and tilt the shroud panel toward the vehicle front.
    G13559915Courtesy of MAZDA MOTORS CORP.

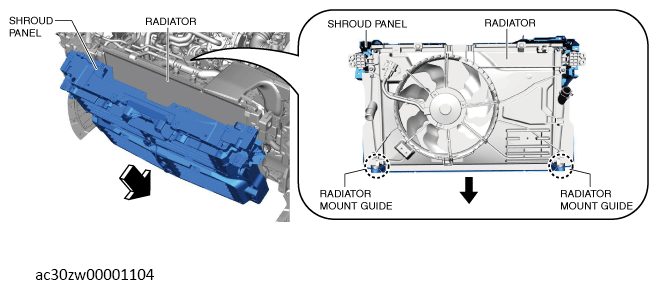

  16. Move the shroud panel to the lower side with the radiator held by hand, detach it from the radiator mount guide, and remove the shroud panel toward the vehicle front.
    G13559916Courtesy of MAZDA MOTORS CORP.

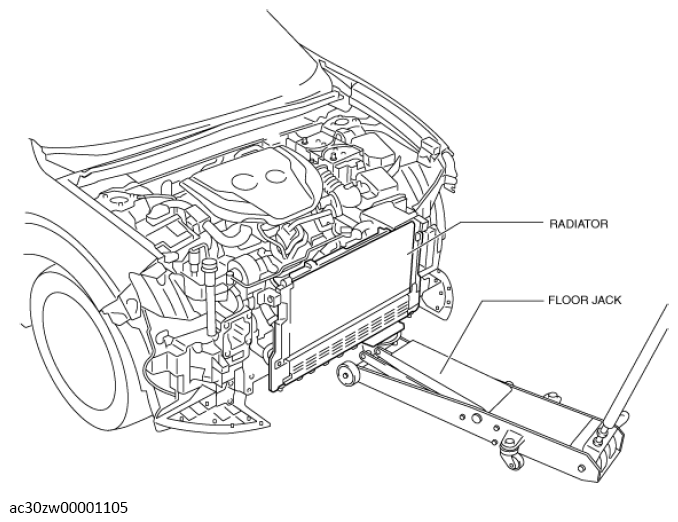

  17. Support the radiator using a floor jack at the position shown in the illustration.
    G13559917Courtesy of MAZDA MOTORS CORP.

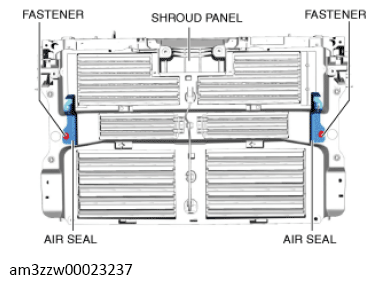

    • When removing the air seal, perform the following procedure:
      1. Remove the fastener.
        G13559918Courtesy of MAZDA MOTORS CORP.
      2. Remove the air seal.

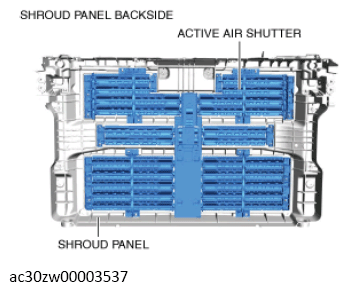

        CAUTION:
        • When replacing the active air shutter, replace it together with the shroud panel.
        G13559919Courtesy of MAZDA MOTORS CORP.
  18. Install in the reverse order of removal.
  19. Adjust the headlight aiming. (See HEADLIGHT AIMING (US) .)
  20. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
  21. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  22. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
