Rear Over Fender Bracket Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear over fender. (See REAR OVER FENDER REMOVAL/INSTALLATION .)

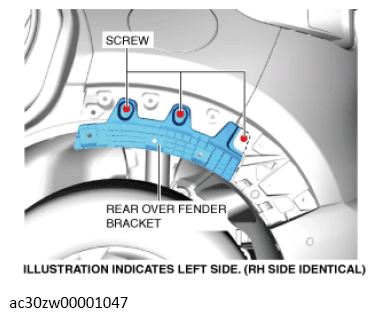

  2. Remove the screws.
    G13559905Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear over fender bracket.
  4. Install in the reverse order of removal.
