Fuel-Filler Lid Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

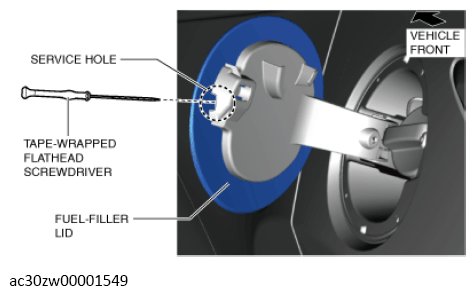

- Insert a tape-wrapped flathead screwdriver into the service hole.

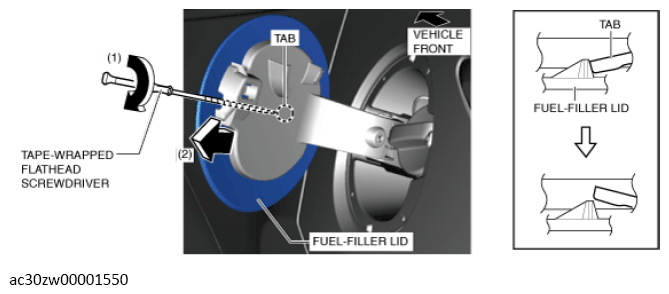

- Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the illustration and detach the tab.
- Move the fuel-filler lid in the direction of arrow (2) shown in the illustration with the tab left detached, and remove the fuel-filler lid.
- Install in the reverse order of removal.
