Interior Trim Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

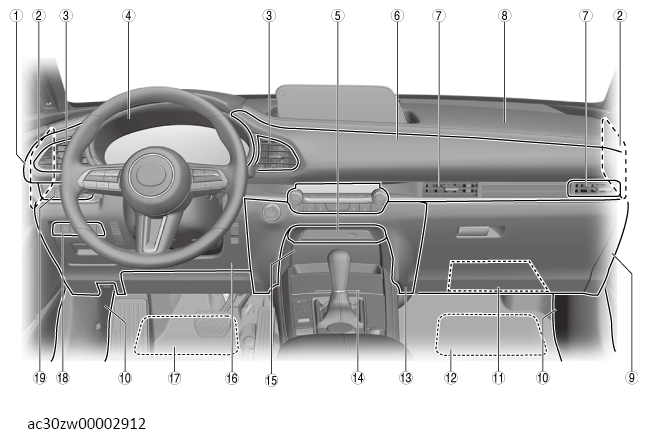

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
2	Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
3	Driver-side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION (US) .)
4	Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
5	Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
6	Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
7	Passenger-side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION (US) .)
8	Dashboard (See DASHBOARD REMOVAL (US) .) (See DASHBOARD INSTALLATION (US) .) (See DASHBOARD DISASSEMBLY/ASSEMBLY (US) .)
9	Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .) (See LOWER PANEL DISASSEMBLY/ASSEMBLY (US) .)
10	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
11	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
12	Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION .)
13	Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
14	Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .) (See CUP HOLDER DISASSEMBLY/ASSEMBLY .)
15	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
16	Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .) (See LOWER PANEL DISASSEMBLY/ASSEMBLY (US) .)
17	Heel cushion (See HEEL CUSHION REMOVAL/INSTALLATION .)
18	Cluster switch No. 2 (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
19	Cluster switch No. 1 (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

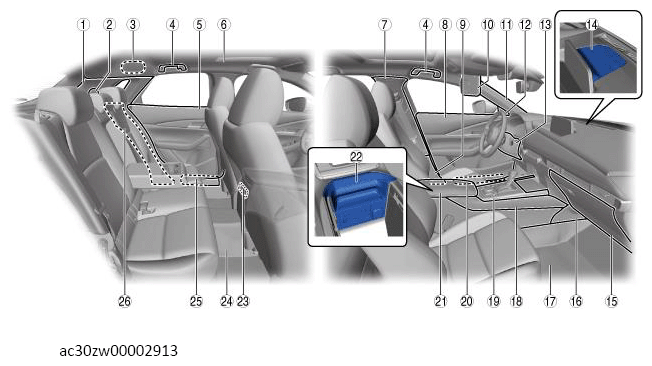

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
2	Rear side speaker grille (with Bose') (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
3	Shock absorbing pad (See SHOCK ABSORBING PAD REMOVAL/INSTALLATION .)
4	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
5	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
6	Headliner (See HEADLINER REMOVAL/INSTALLATION (US) .)
7	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
8	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)
9	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
10	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
11	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
12	Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
13	Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
14	Center speaker grille (with Bose°) (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
15	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
16	Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
17	Front floor covering (See FLOOR COVERING REMOVAL/INSTALLATION (US) .)
18	Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
19	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
20	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
21	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .) (See REAR CONSOLE DISASSEMBLY/ASSEMBLY .) (See CONSOLE LID LOCK REMOVAL/INSTALLATION .)
22	Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
23	Rear ventilator grille (with rear ventilator grille) (See VENTILATOR GRILLE REMOVAL/INSTALLATION (US) .)
24	Rear floor covering (See FLOOR COVERING REMOVAL/INSTALLATION (US) .)
25	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
26	Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)

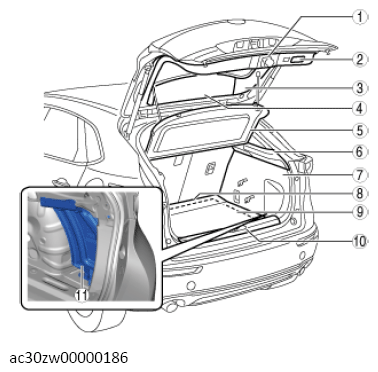

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
2	Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
3	Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
4	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
5	Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
6	Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
7	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)
8	Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
9	Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
10	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
11	Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION .)
