B-Pillar Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)

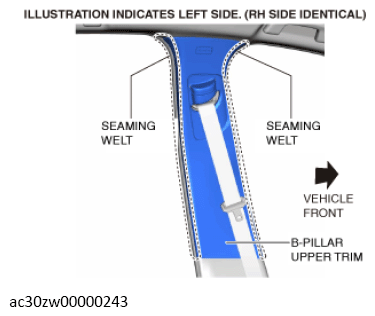

Partially peel back the seaming welt.

Courtesy of MAZDA MOTORS CORP.

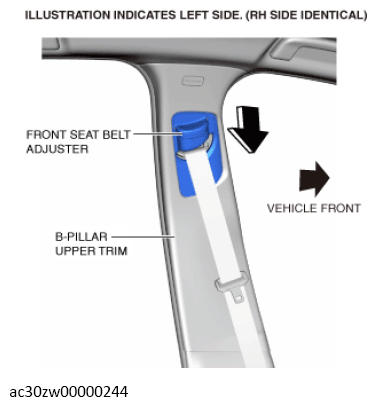

Move the front seat belt adjuster in the direction of the arrow shown in the illustration and place it at the lowest position.

Courtesy of MAZDA MOTORS CORP.

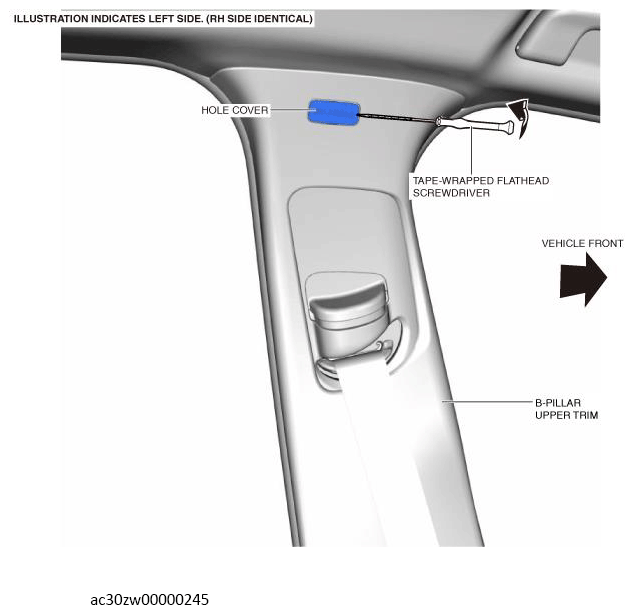

Insert a tape-wrapped flathead screwdriver into the position shown in the illustration, move it in the direction of the arrow and remove the hole cover.

Courtesy of MAZDA MOTORS CORP.

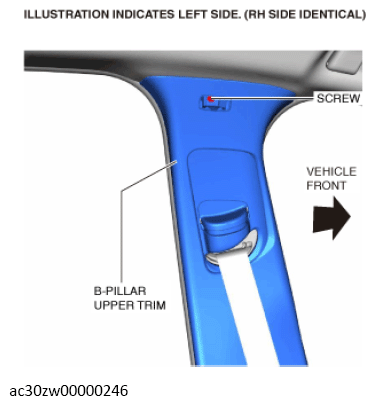

Remove the screw.

Courtesy of MAZDA MOTORS CORP.

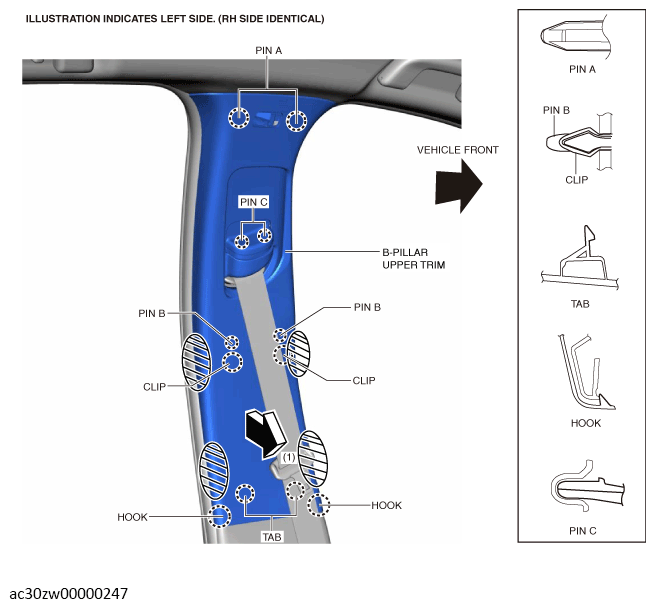

Grasp the shaded areas shown in the illustration, and move the B-pillar upper trim in the order of arrows (1), (2) shown in the illustration, and remove it while detaching the clips, pins A, pins B, pins C, tabs, and hooks.

Courtesy of MAZDA MOTORS CORP.
Remove the B-pillar upper trim from the front seat belt.
Install in the reverse order of removal.
