Front Door Trim Removal/Installation (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    3. Power window sub switch (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)

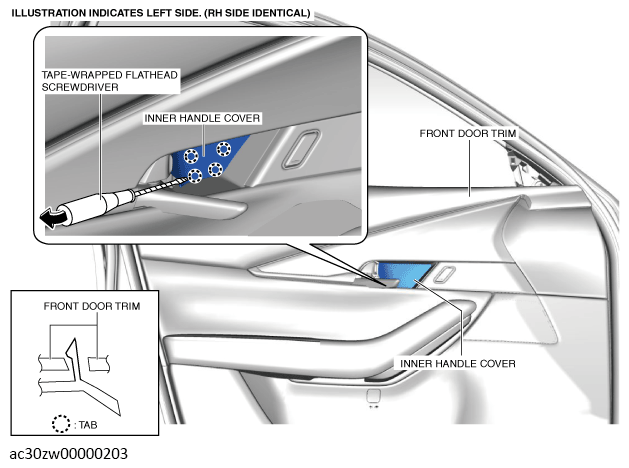

  3. Insert a tape-wrapped flathead screwdriver into the position shown in the illustration, move it in the direction of the arrow and remove the inner handle cover while detaching the tabs.
    G13560702Courtesy of MAZDA MOTORS CORP.

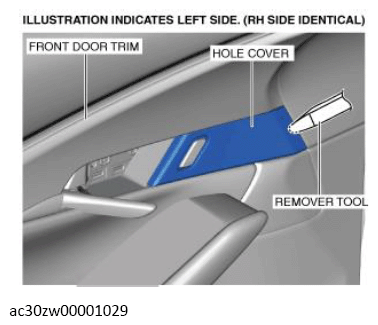

  4. Insert a remover tool into the position shown in the illustration.
    G13560703Courtesy of MAZDA MOTORS CORP.

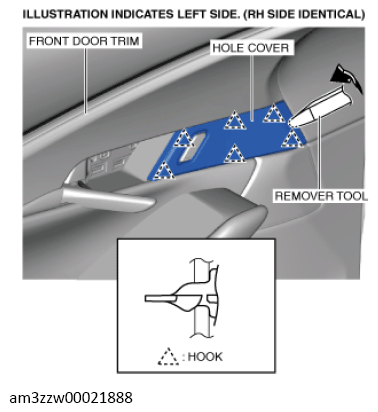

  5. Move the remover tool in the direction of the arrow shown in the illustration and detach the hooks.
    G13560704Courtesy of MAZDA MOTORS CORP.

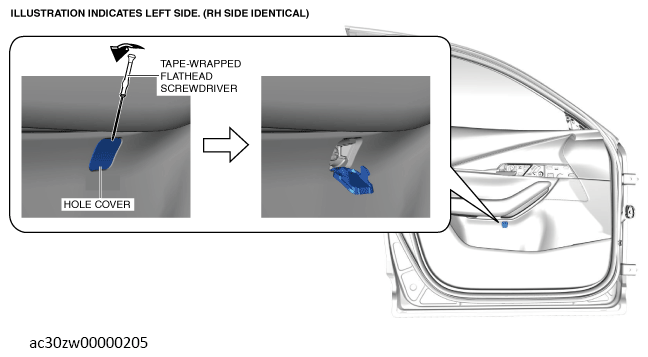

  6. Insert a tape-wrapped flathead screwdriver into the position shown in the illustration, move it in the direction of the arrow and remove the hole cover.
    G13560705Courtesy of MAZDA MOTORS CORP.

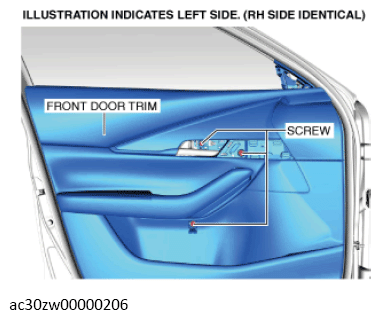

  7. Remove the screws.
    G13560706Courtesy of MAZDA MOTORS CORP.

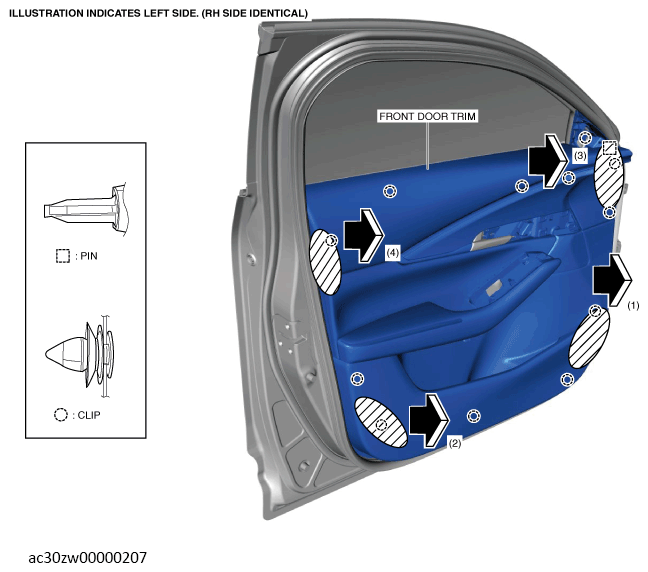

  8. Hold each shaded area and pull the front door trim in the order of arrows (1), (2), (3), and (4), and detach the clips and pin.
    G13560707Courtesy of MAZDA MOTORS CORP.

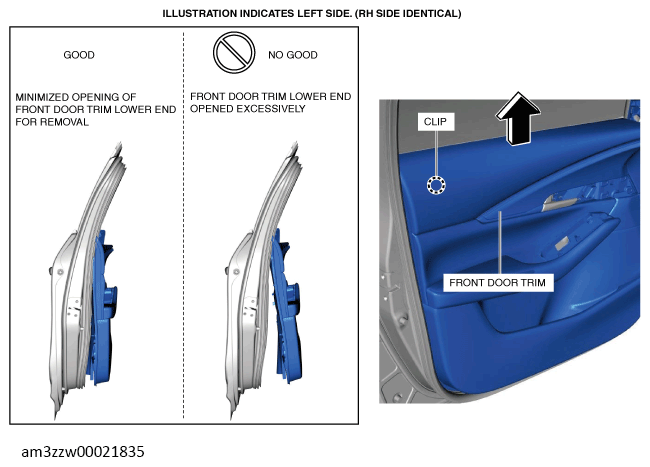

  9. Lift up the front door trim in the direction of the arrow shown in the illustration being careful not to open the lower end of the front door trim excessively, and remove the front door trim from the clip.
    G13560708Courtesy of MAZDA MOTORS CORP.
  10. Remove the front door trim.

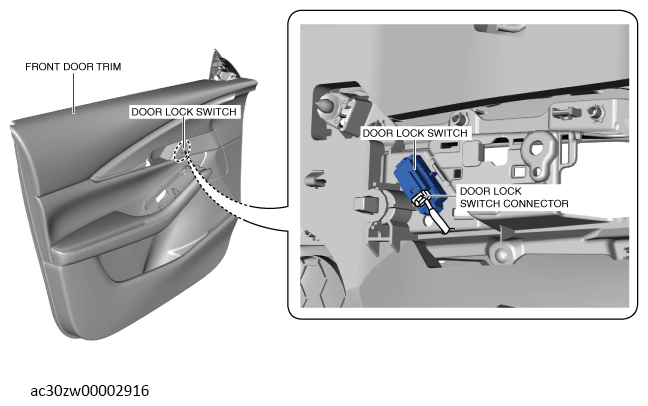

  11. Disconnect the door lock switch connector.
    G13560709Courtesy of MAZDA MOTORS CORP.

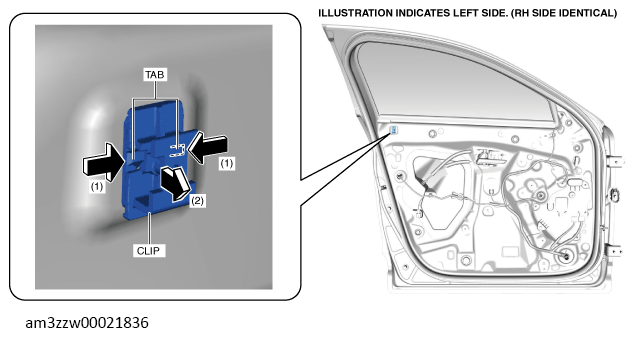

  12. While pressing the tabs of the clip in the directions of arrows (1) shown in the illustration, pull the clip in the direction of arrow (2) to remove the clip from the front door.
    G13560710Courtesy of MAZDA MOTORS CORP.

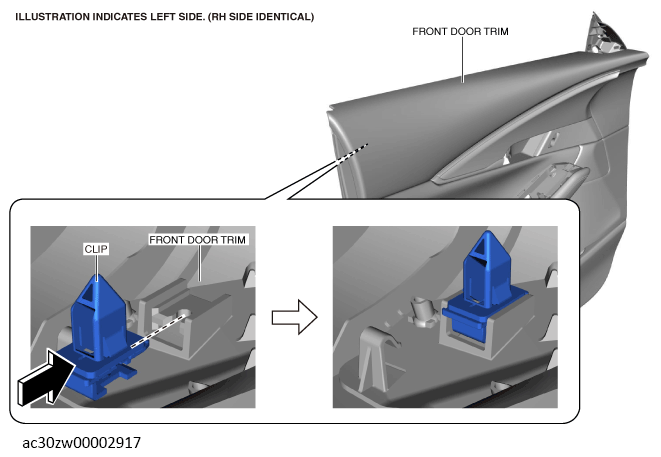

  13. Install the clip removed in Step 12 to the front door trim.
    G13560711Courtesy of MAZDA MOTORS CORP.
  14. Install in the reverse order of removal.
