Cup Holder Disassembly/Assembly
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

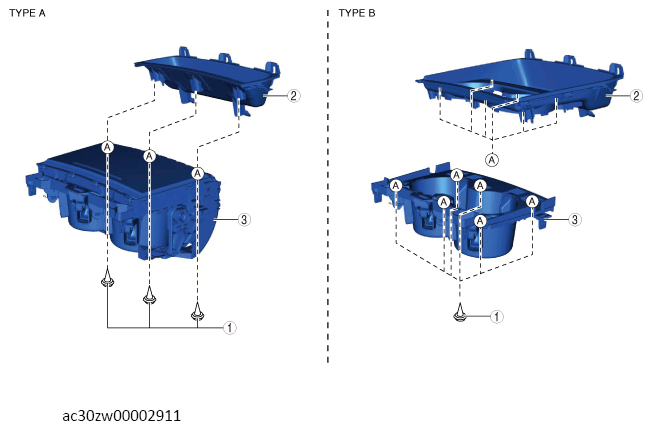

- There are two types of cup holder. Verify the cup holder shape before performing the procedures.
- Disassemble in the order indicated in the table.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT DESCRIPTION
| 1 |
Screw |
| 2 |
Box mat |
| 3 |
Cup holder |
- Assemble in the reverse order of disassembly.
