Shock Absorbing Pad Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the headliner preparation. (See HEADLINER REMOVAL/INSTALLATION (US) .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
    2. Sun visor (See SUN VISOR REMOVAL/INSTALLATION .)
    3. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
    5. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    7. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    8. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    9. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    10. Shift lever knob (MTX)
    11. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    12. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    13. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    14. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    15. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    16. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    17. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    18. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    19. Driver-side air bag module
    20. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    21. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
    22. Rear vent duct No. 2 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    23. Rear vent duct No. 1 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    24. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    25. Headliner (See HEADLINER REMOVAL/INSTALLATION (US) .)
  4. Remove the bolt.

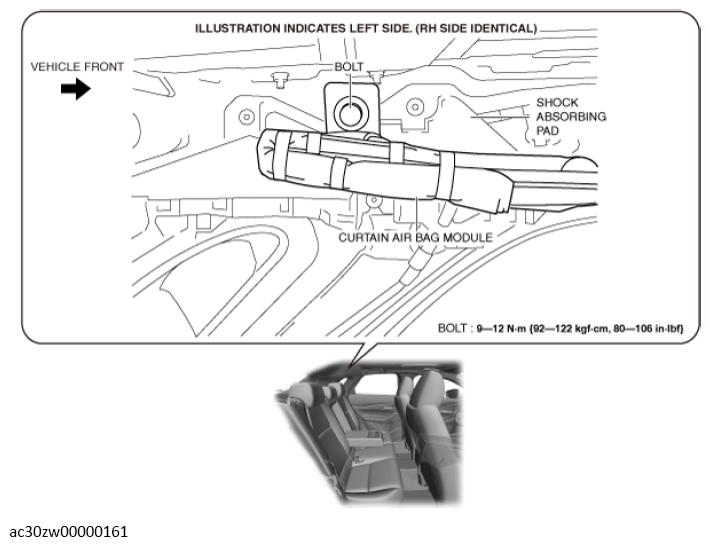

    Fig 1: Curtain Air Bag Module, Shock Absorbing Pad And Bolt With Torque Specification
    G13560799Courtesy of MAZDA MOTORS CORP.
  5. Set the curtain air bag module aside.
  6. Remove the clips.

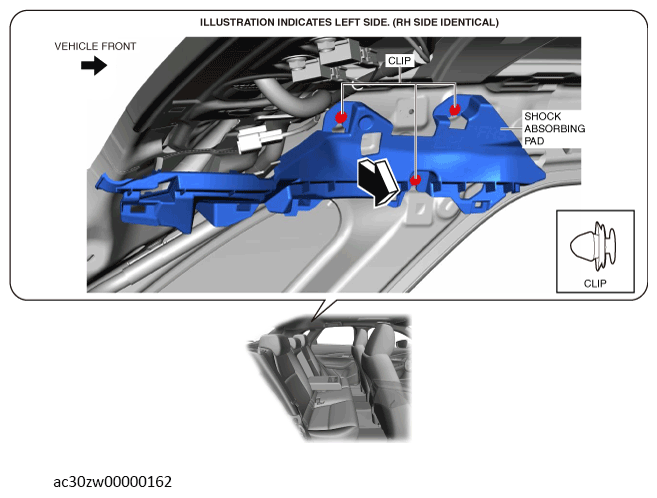

    G13560800Courtesy of MAZDA MOTORS CORP.
  7. Remove the shock absorbing pad in the direction of the arrows shown in the illustration.
  8. Install in the reverse order of removal.
