Heel Cushion Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
    5. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
  3. Partially peel back the floor covering.
  4. Remove the fastener.

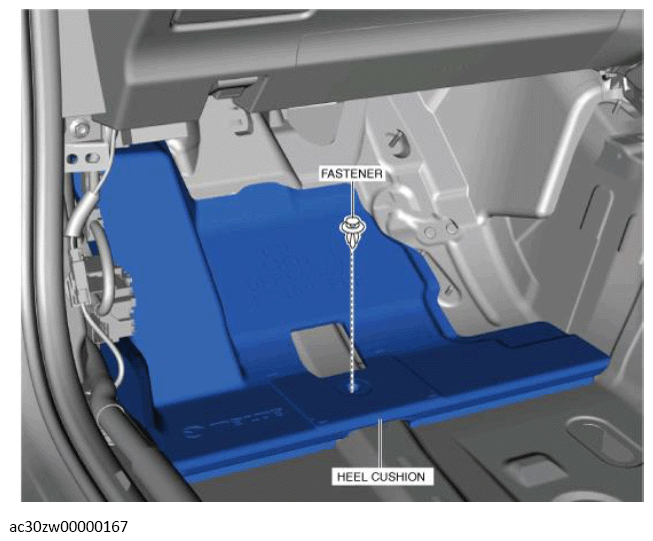

    G13560733Courtesy of MAZDA MOTORS CORP.
  5. Pull the heel cushion in the direction of the arrow shown in the illustration and remove it.

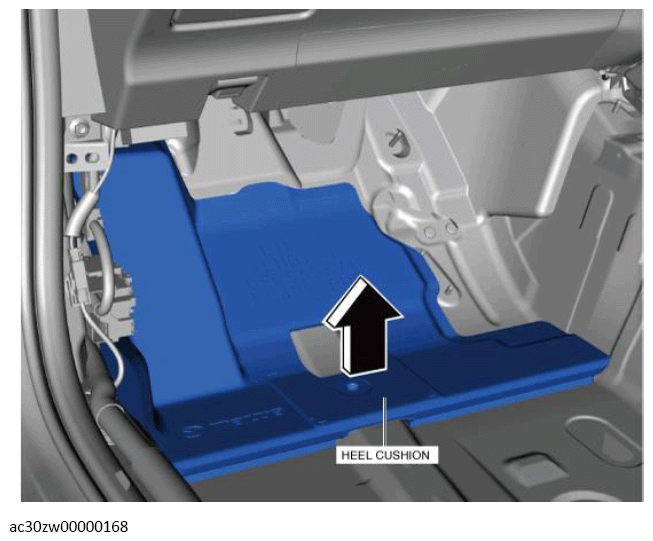

    G13560734Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
