Liftgate Upper Trim Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

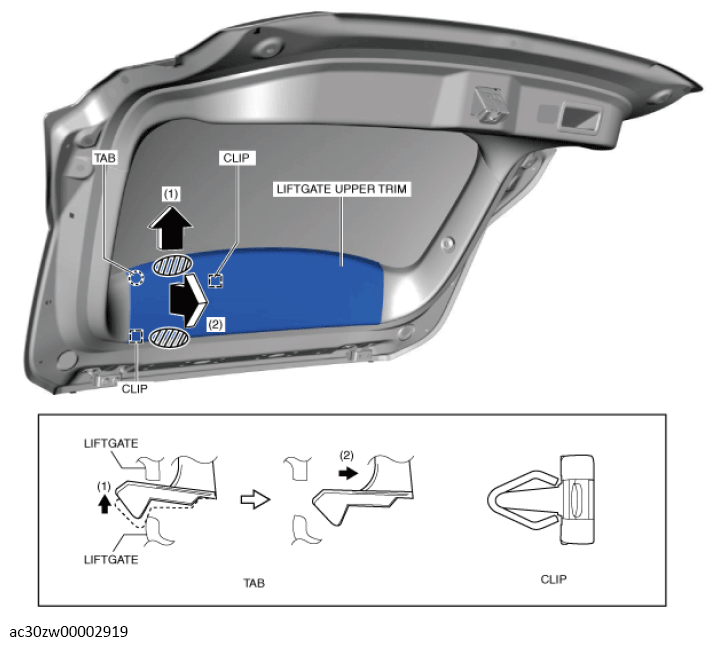

- Hold the shaded areas shown in the illustration and partially peel back the edge of the liftgate upper trim in the direction of arrow (1) to detach the tab, move the liftgate upper trim in the direction of arrow (2) with the tab detached, and detach the clips.

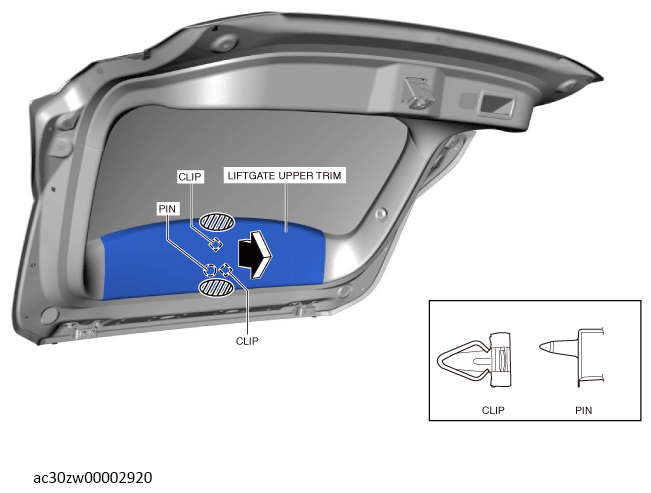

- Hold the shaded areas shown in the illustration, move the liftgate upper trim in the direction of the arrow and detach the clips and pin.

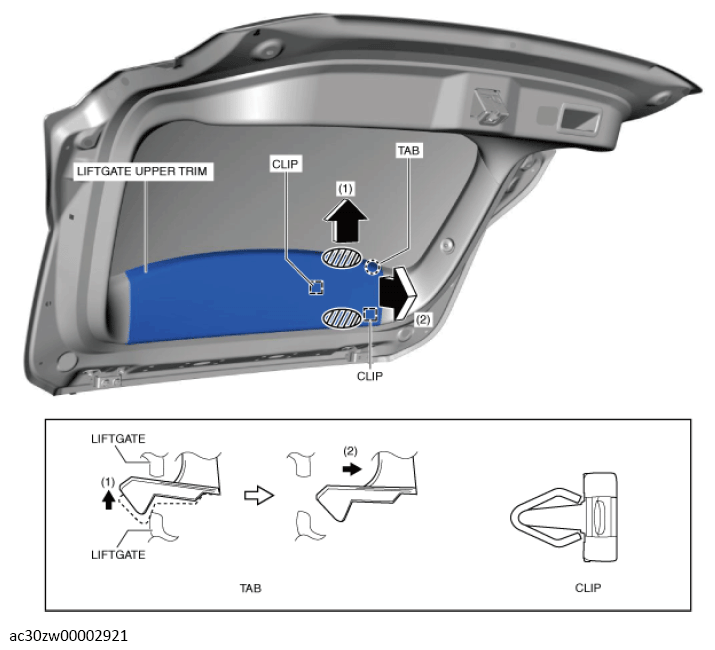

- Hold the shaded areas shown in the illustration and partially peel back the edge of the liftgate upper trim in the direction of arrow (1) to detach the tab, move the liftgate upper trim in the direction of arrow (2) with the tab detached, and detach the clips.
- Install in the reverse order of removal.
