Interior Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    11. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    12. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    13. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    14. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    15. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
    16. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    17. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    18. Rear header trim (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
    19. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    20. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  3. Release the tabs and remove the bulb housing.

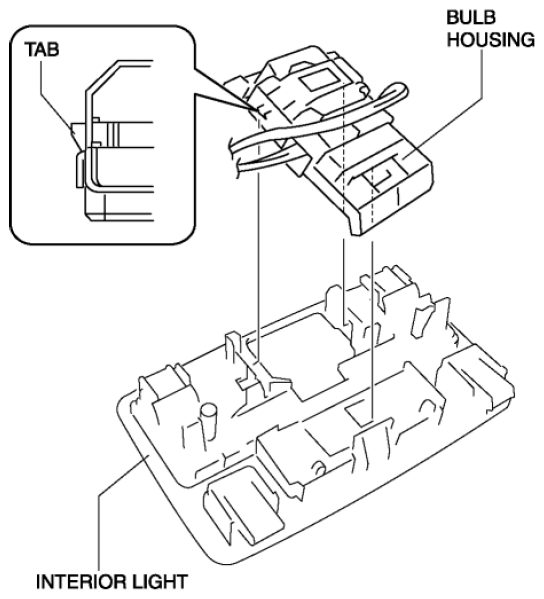

    Fig 1: Identifying Interior Light Tabs And Bulb Housing
    G08153366
    NOTE:
    • The bulb housing and the wiring harness have been integrated and attached to the headliner. When replacing the bulb housing, remove the wiring harness which passes under the urethane by cutting the urethane.
  4. Pull the tabs shown in the figure in the direction of the arrow, and detach the tabs.

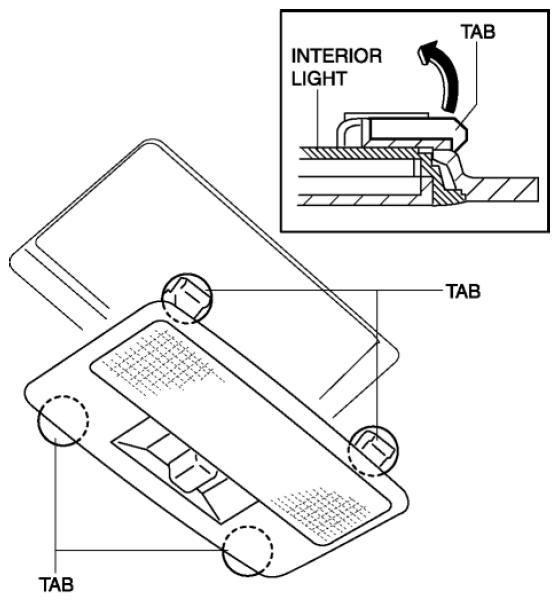

    Fig 2: Identifying Interior Light Tabs Pulling Direction
    G08153367
  5. Remove the interior light.
  6. Install in the reverse order of removal.
    NOTE:
    • After installing the wiring harness, reinforce the urethane that was cut when removing the bulb housing with vinyl tape.
