Trunk Side Trim Removal/Installation

  1. Disconnect the negative battery cable. (right-side only)
  2. Partially peel back the seaming welts.
  3. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    6. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
  4. Remove the screws A.

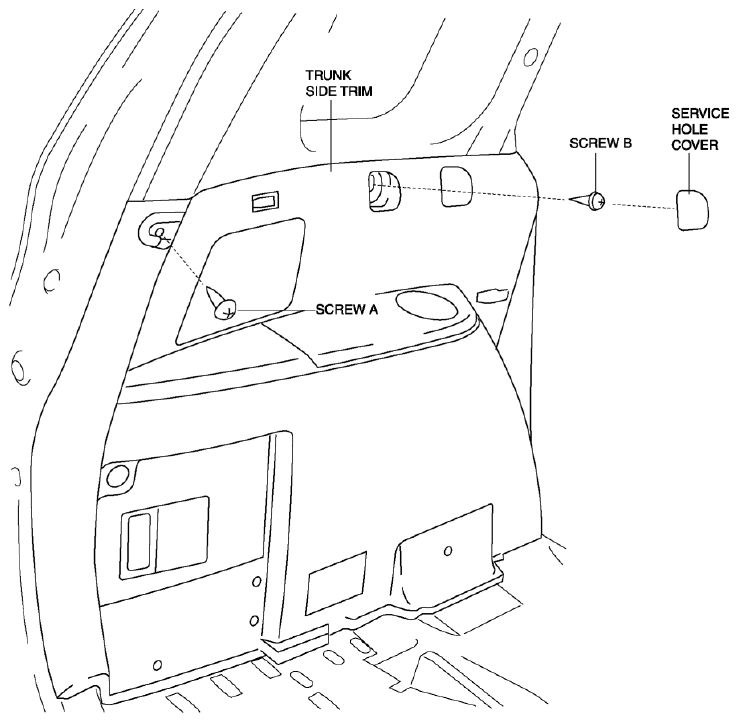

    Fig 1: Identifying Trunk Side Trim, Service Hole Cover, Screws A And Screw B
    G08153240
  5. Remove the service hole cover, then remove the screw B.
  6. Remove the bolt C, then remove the cargo net hook.

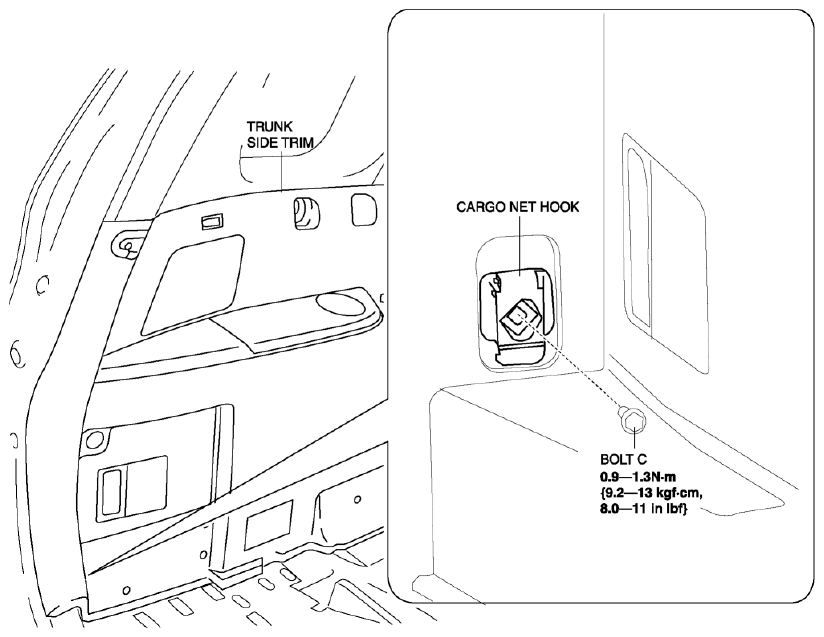

    Fig 2: Trunk Side Trim, Cargo Net Hook And Bolt C With Torque Specifications
    G08153241
  7. Hold C-pillar trim with your hands and pull the trunk side trim in the direction of the arrow (1), (2), (3), (4) and remove hooks A and guides B.

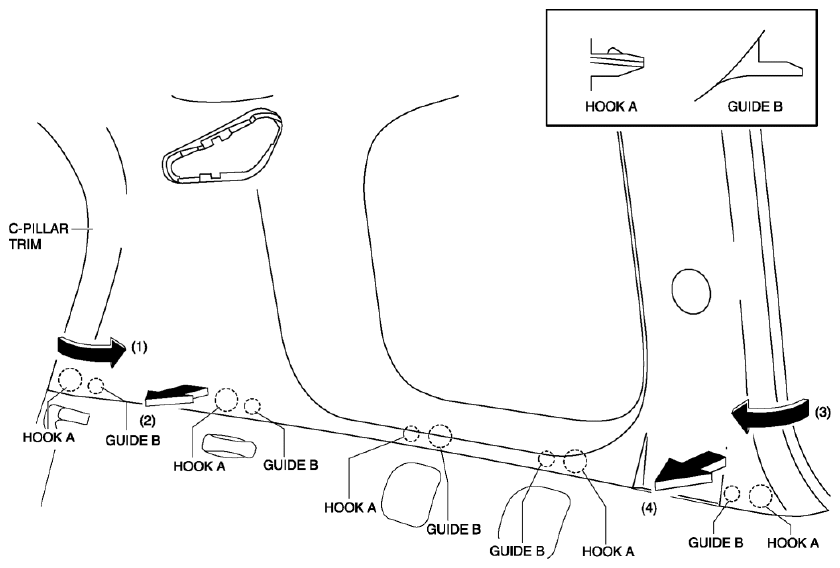

    Fig 3: Removing C-Pillar Trim Hooks A And Guides B
    G08153242
  8. Pull the trunk side trim in the direction of arrow, while remove the clips C and pin D.

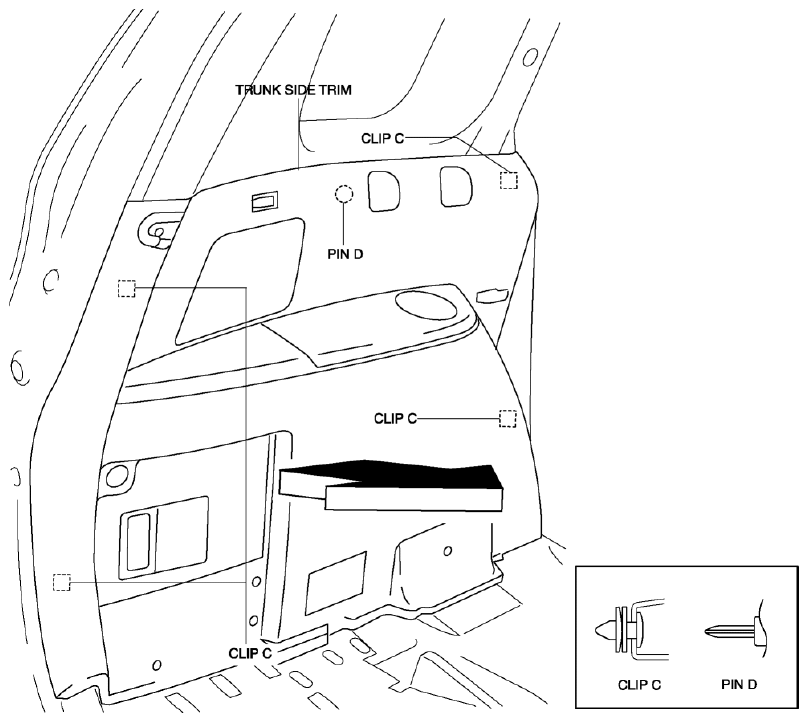

    Fig 4: Pulling Trunk Side Trim
    G08153243
  9. Remove the trunk side trim.
  10. Install in the reverse order of removal.
