Rear Header Trim Removal/Installation

  1. Pull the rear header trim in the direction of the arrow (1), (2), (3) and detach the clips A, clip B, pin C and guide D.

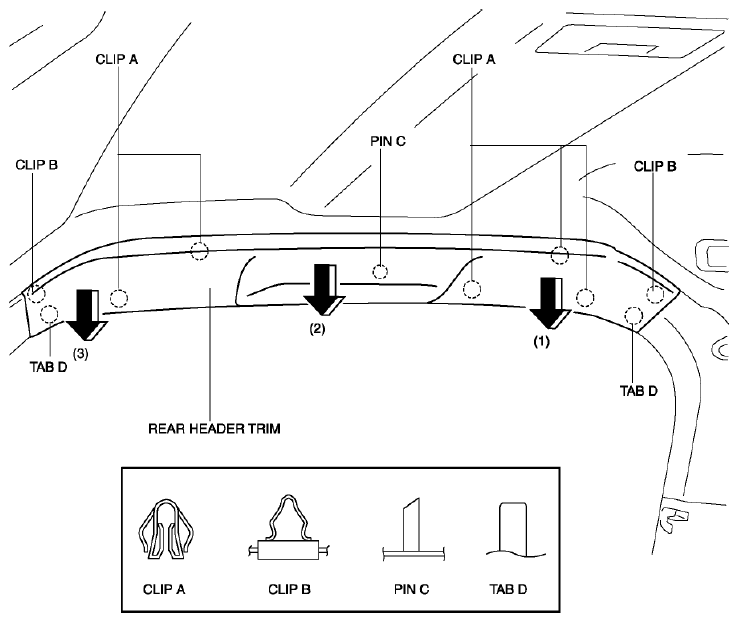

    Fig 1: Pulling Rear Header Trim
    G08153268
  2. Remove the rear header trim.
  3. Install in the reverse order of removal.
