Cargo Compartment Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Insert a tape-wrapped flathead screwdriver in the position shown in the figure, detach the tab by prying it in the direction of the arrow.

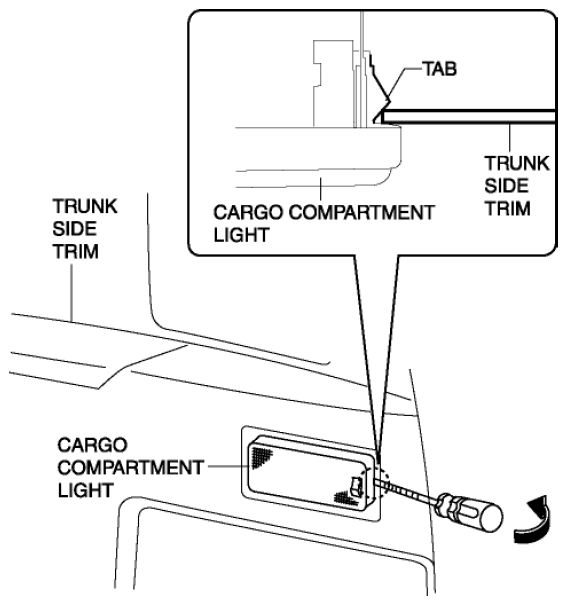

    Fig 1: Identifying Cargo Compartment Light Tab Prying Direction
    G08153372
  3. Disconnect the connector.

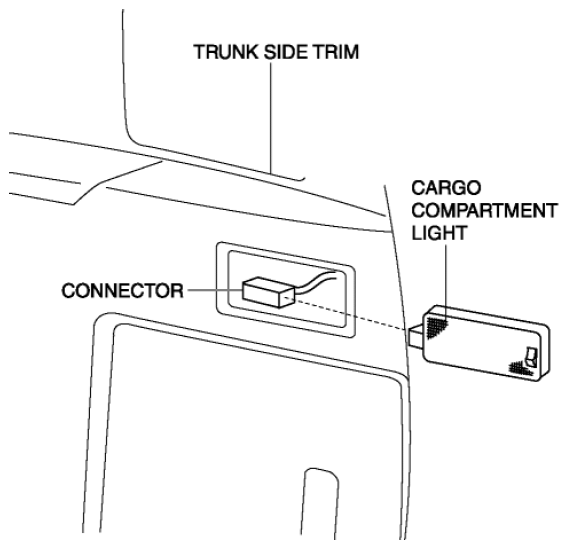

    Fig 2: Identifying Cargo Compartment Light And Connector
    G08153373
  4. Remove the cargo compartment light.
  5. Install in the reverse order of removal.
