Rear Scuff Plate Removal/Installation

  1. Detach tabs A while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach pins B, clips C, pins D while pulling in the direction of the arrow (2).

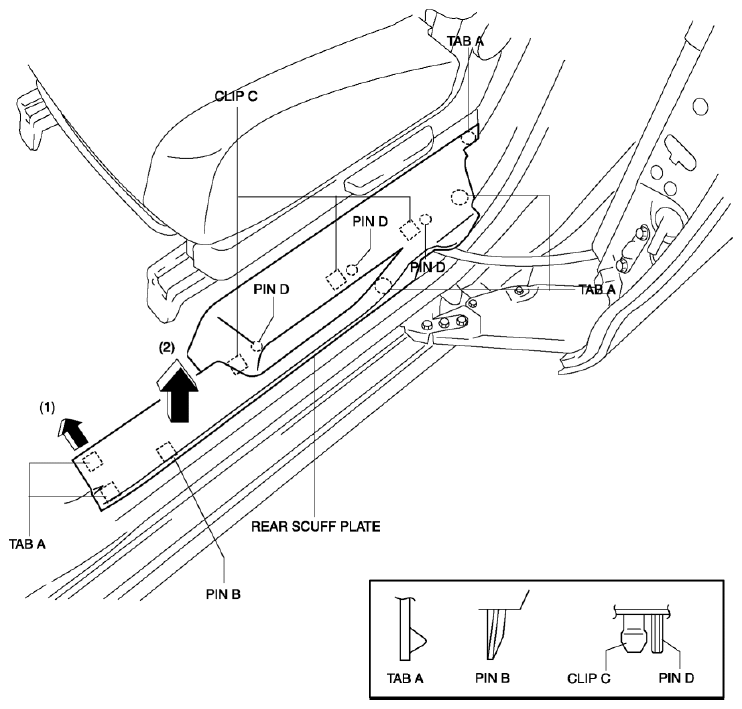

    Fig 1: Pulling Rear Scuff Plate
    G08153271
  2. Remove the rear scuff plate.
  3. Install in the reverse order of removal.
