Trunk End Trim Removal/Installation

  1. Remove the sub-trunk. (See SUB-TRUNK REMOVAL/INSTALLATION .)
  2. Remove the fasteners A.

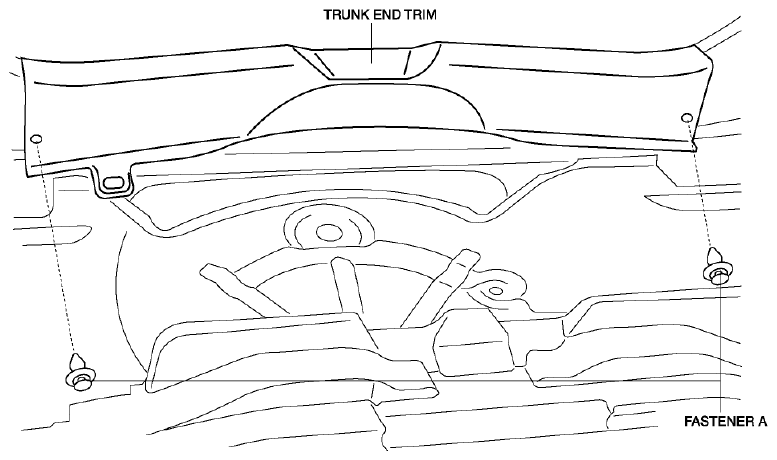

    Fig 1: Identifying Trunk End Trim And Fasteners A
    G08153244
  3. Pull in the direction of the arrow (1), (2), (3) shown in the figure and remove pins B, clips C, clip D, pins E.

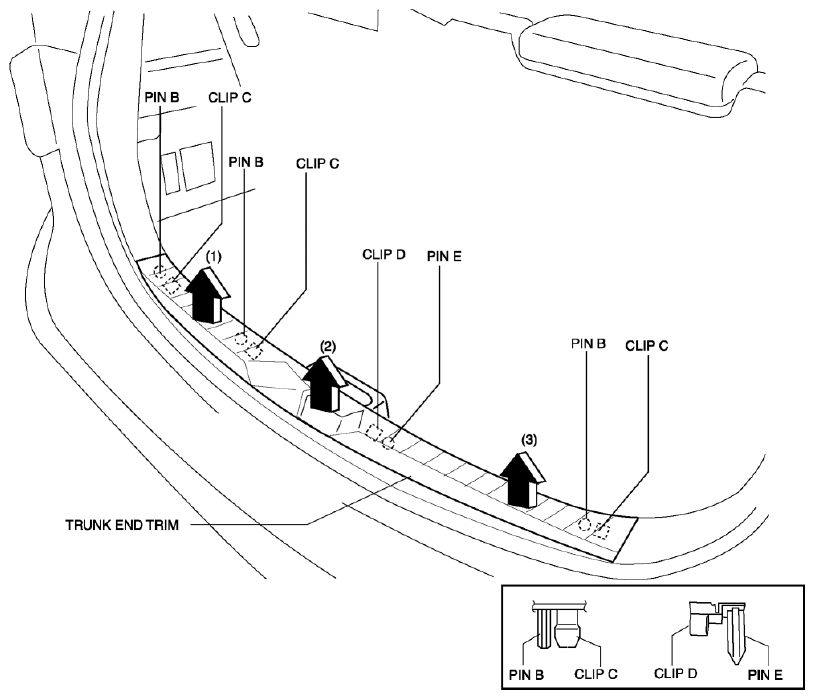

    Fig 2: Removing Trunk End Trim Pins B, Clips C, Clip D And Pins E
    G08153245
  4. Remove the trunk end trim.
  5. Install in the reverse order of removal.
