B-Pillar Upper Trim Removal/Installation

  1. Partially peel back the seaming welts.
  2. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    4. Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    5. Upper anchor installation bolts on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  3. Pull the B-pillar upper trim in the direction of the arrow shown in the figure, then detaching clips A and pin B.

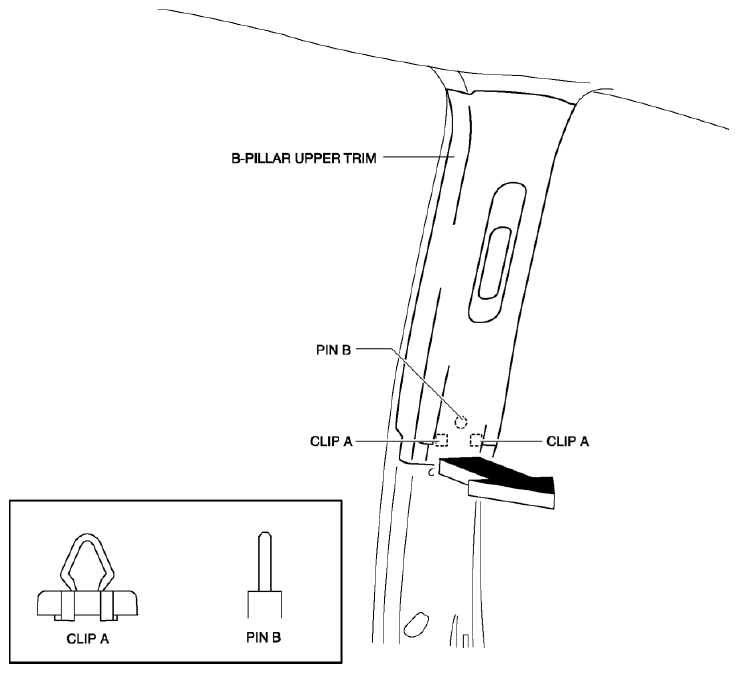

    Fig 1: Detaching B-Pillar Upper Trim Clips A And Pin B
    G08153223
  4. Remove the B-pillar upper trim in the direction of the arrow shown in the figure.
    Fig 2: Removing B-Pillar Upper Trim
    G08153224
    CAUTION:
    • When removing the B-pillar upper trim, be careful not to damage the tab C.
  5. Install in the reverse order of removal.
