B-Pillar Lower Trim Removal/Installation

  1. Partially peel back the seaming welt.
  2. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  4. Pull the B-pillar lower trim in the direction of the arrow (1), (2) shown in the figure, detach tab A, clips B, pins C.

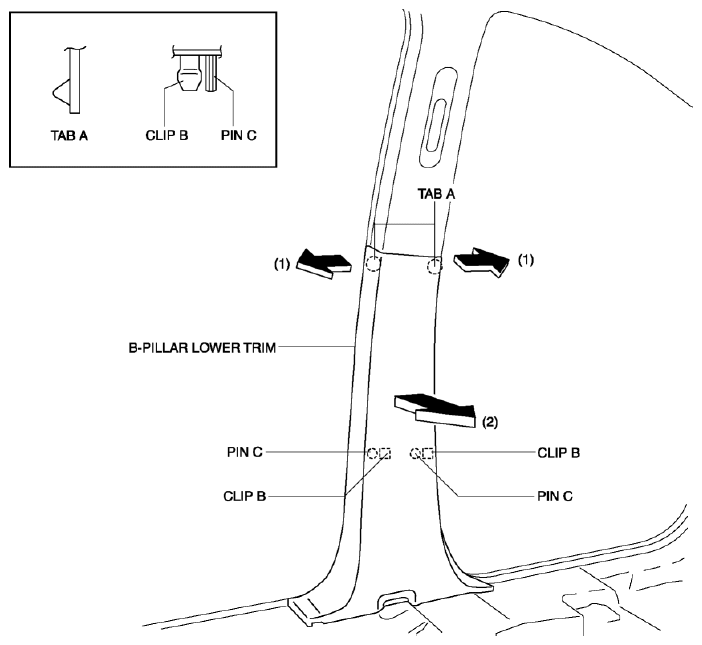

    Fig 1: Pulling B-Pillar Lower Trim
    G08153225
  5. Remove the B-pillar lower trim.
  6. Install in the reverse order of removal.
