A-Pillar Trim Removal/Installation

  1. Partially peel back the seaming welt.
  2. Pull the upper end of the A-pillar trim in the direction of the arrow (1) shown in the figure and remove clip A and B.

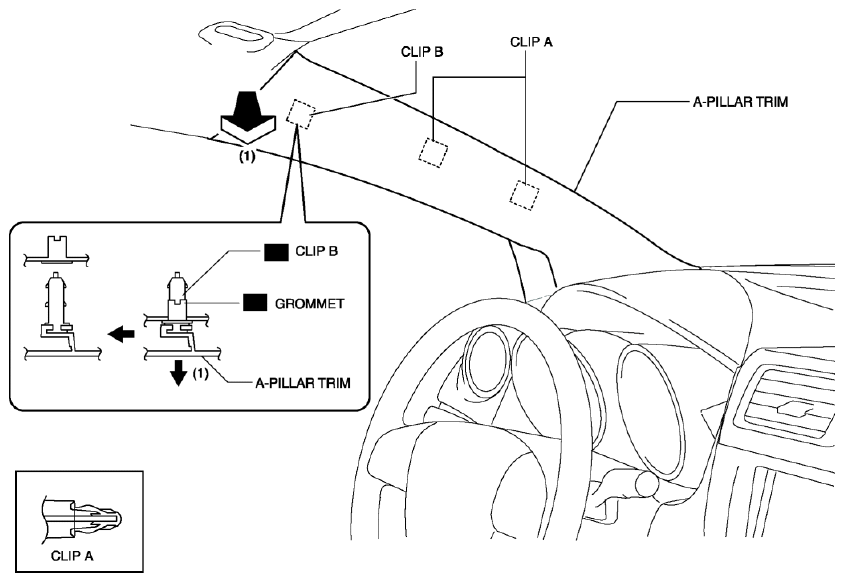

    Fig 1: Pulling Upper End Of A-Pillar Trim
    G08153219
  3. Pull the A-pillar trim in the direction of the arrow in the order of (2) and remove the A-pillar trim while detaching the tab C.

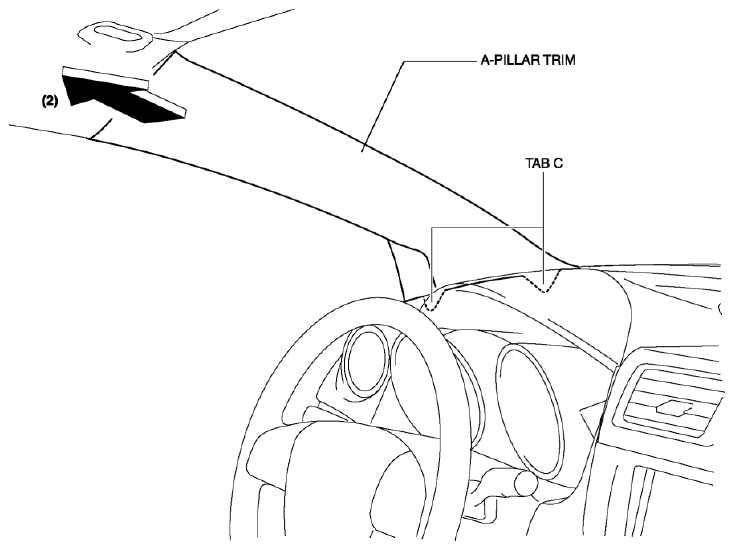

    Fig 2: Pulling A-Pillar Trim
    G08153220
    CAUTION:
    • When pulling out the A-pillar trim, be careful not to damage the tabs C.
  4. Rotate and pull clip B in the direction of the arrow shown in the figure until it is no longer loose, and feels tight.
    Fig 3: Rotating Grommet Clip B
    G08153221
  5. Pull clip B and remove it from the grommet.
  6. Insert a tape-wrapped flathead screwdriver between the body and the grommet.

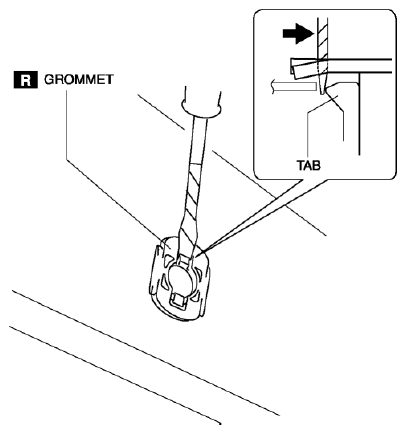

    Fig 4: Inserting Tape-Wrapped Flathead Screwdriver Between Body And Grommet
    G08153222
  7. Press the tabs and remove the grommet.
  8. Install the new grommet to the body.
  9. Install the new clip B to the A-pillar trim.
  10. Install in the reverse order of removal.
