Antenna Feeder No.2 Removal/Installation
- Disconnect the negative battery cable.
- Remove the following parts:
- A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
- Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
- Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
- Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
- Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
- Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
- Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
- Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
- Rear header trim (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
- C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Headliner (See HEADLINER REMOVAL/INSTALLATION .)

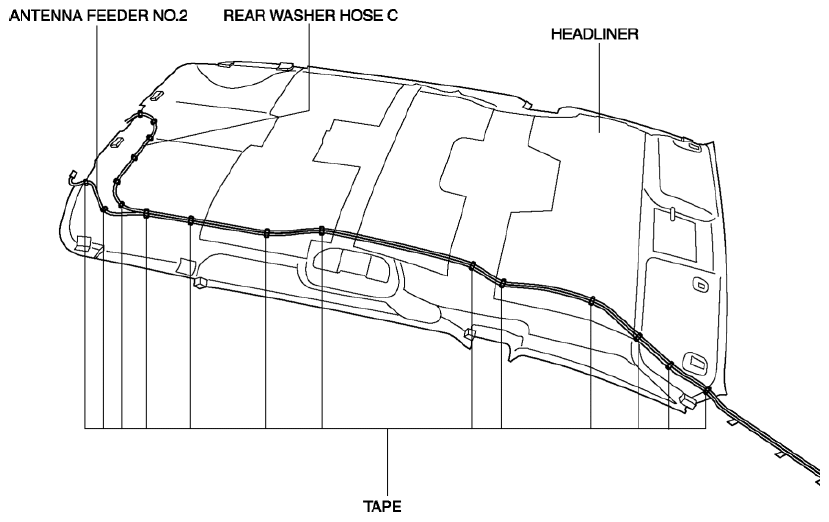

- Peel off the tape and remove antenna feeder No.2.
- Install in the reverse order of removal.
