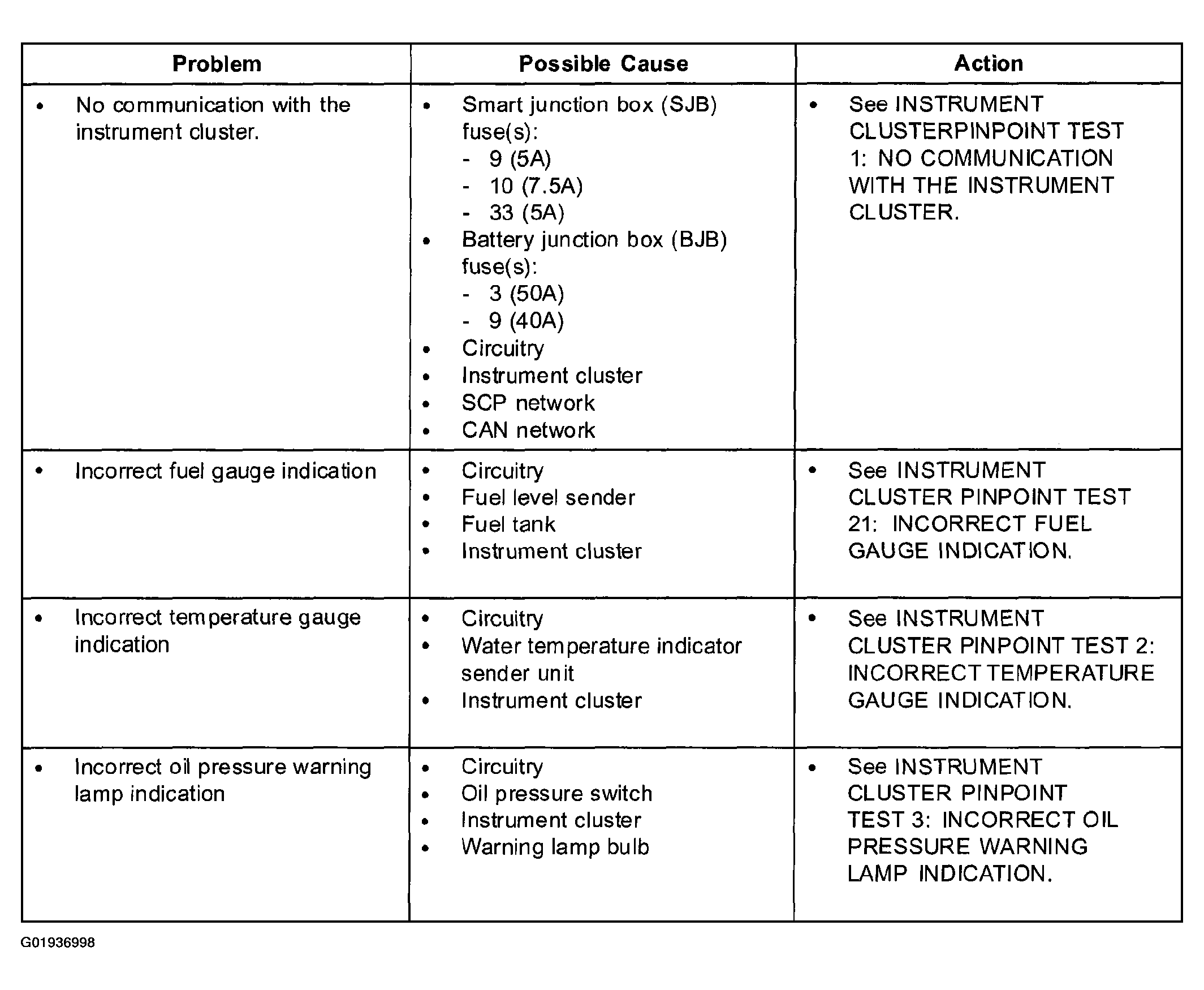

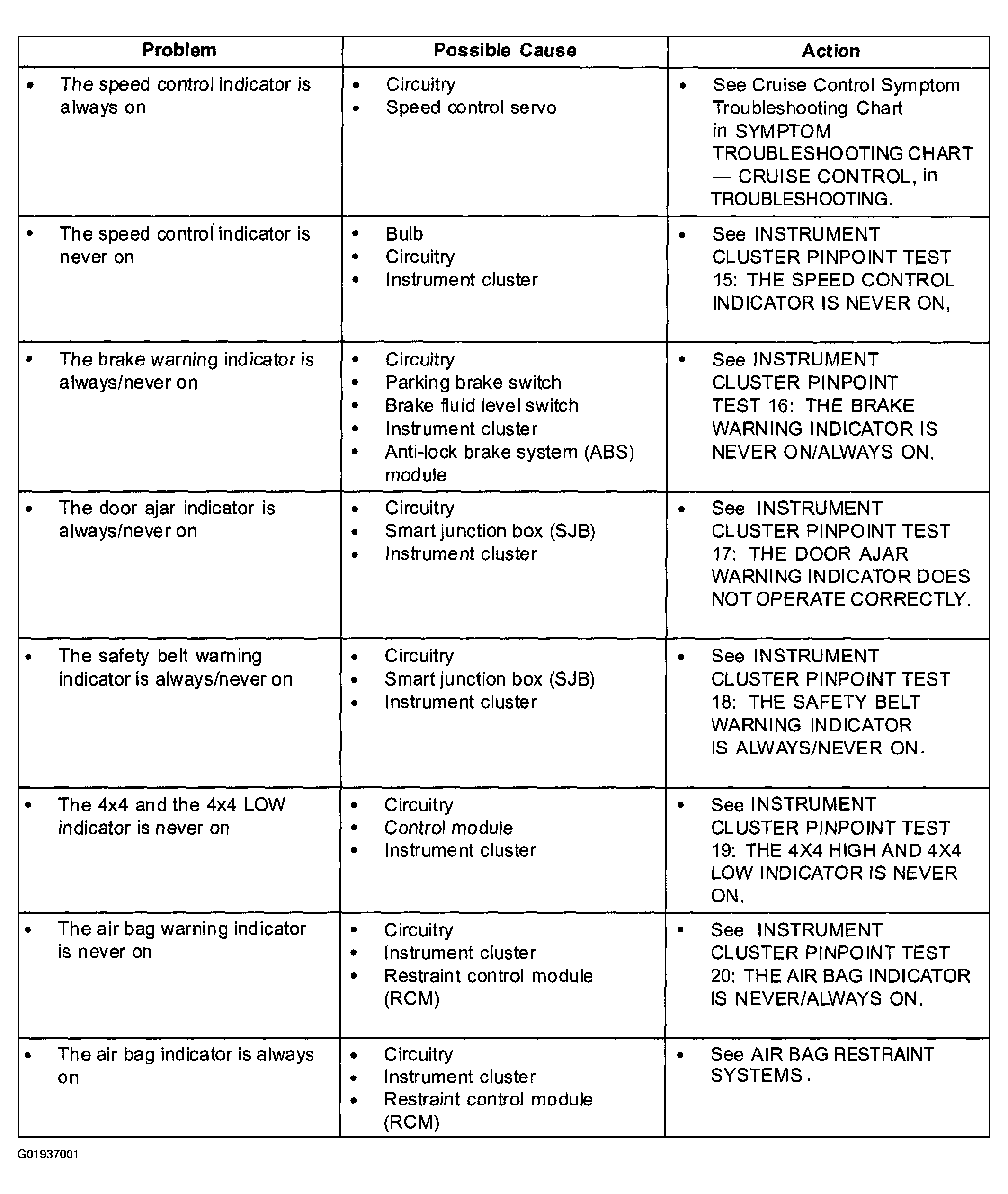

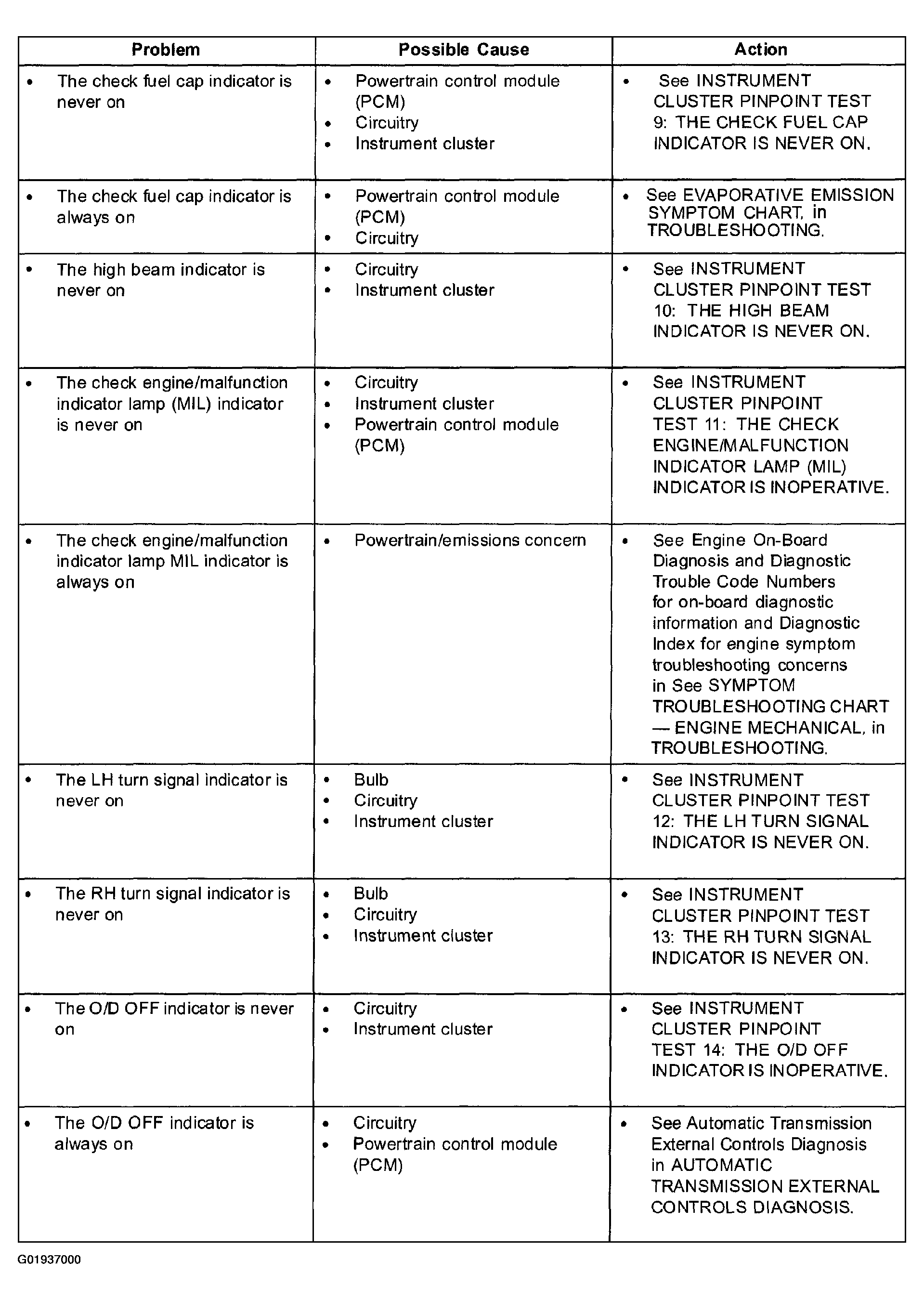

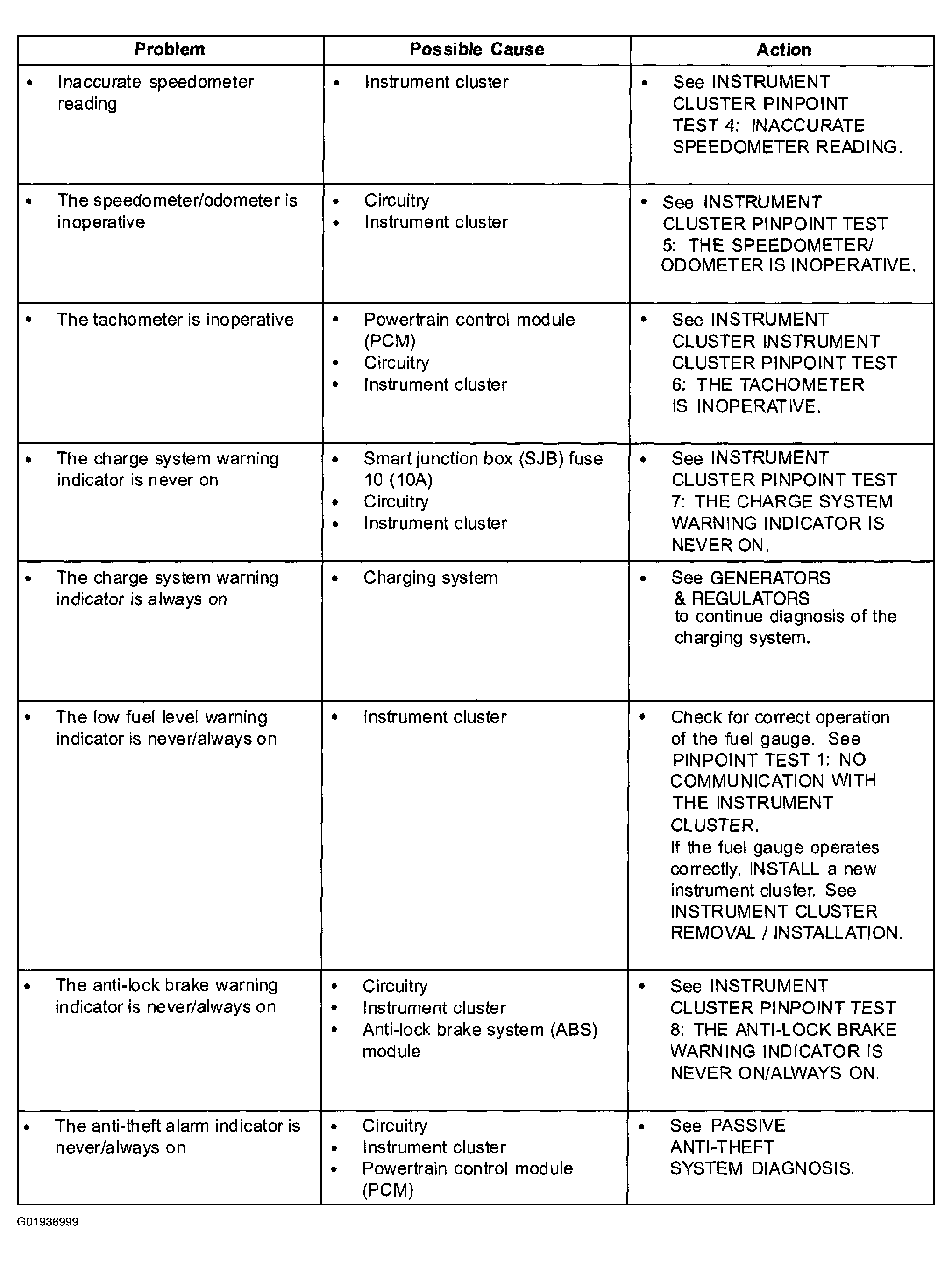

Symptom Troubleshooting Chart - Instrument Cluster: Notes
DTC INDEX
| DTC | Description |
| B1202 | Fuel Sender Circuit Open |
| B1204 | Fuel Sender Circuit Short to Ground |
| B1317 | Battery Voltage High |
| B1318 | Battery Voltage Low |
| B1322 | Driver Door Ajar Circuit Short to Ground |
| B1330 | Passenger Door Ajar Circuit Short to Ground |
| B1869 | Lamp Air Bag Warning Indicator Circuit Open |
| B1870 | Lamp Air Bag Warning Indicator Circuit Short To Battery |
| B2143 | NVM Memory Failure |
| B2432 | Drivers Seat Belt Buckle Switch Circuit Open |
| B2434 | Drivers Seat Belt Buckle Switch Circuit Short to Ground |
| B2435 | Drivers Seat Belt Buckle Switch Circuit Resistance out of Range |
| B2436 | Passengers Seat Belt Buckle Switch Circuit Open |
| B2438 | Passengers Seat Belt Buckle Switch Circuit Short to Ground |
| B2439 | Passengers Seat Belt Buckle Switch Circuit Resistance out of Range |
| C1221 | ABS Warning Lamp Output Circuit Short to Ground |
| C1226 | Brake Warning Lamp Output Circuit Short to Ground |
| P0117 | Engine Coolant Temperature Low Input |
| P0118 | Engine Coolant Temperature High Input |
| P1804 | 4X4 Indicator Circuit Failure |
| P1806 | 4X4 Indicator Circuit Short to Battery |
| P1808 | 4X4 LOW Indicator Circuit Failure |
| P1810 | 4X4 LOW Indicator Circuit Short to Battery |
