Instrument Cluster Pinpoint Test 5: Speedometer/Odometer Is Inoperative

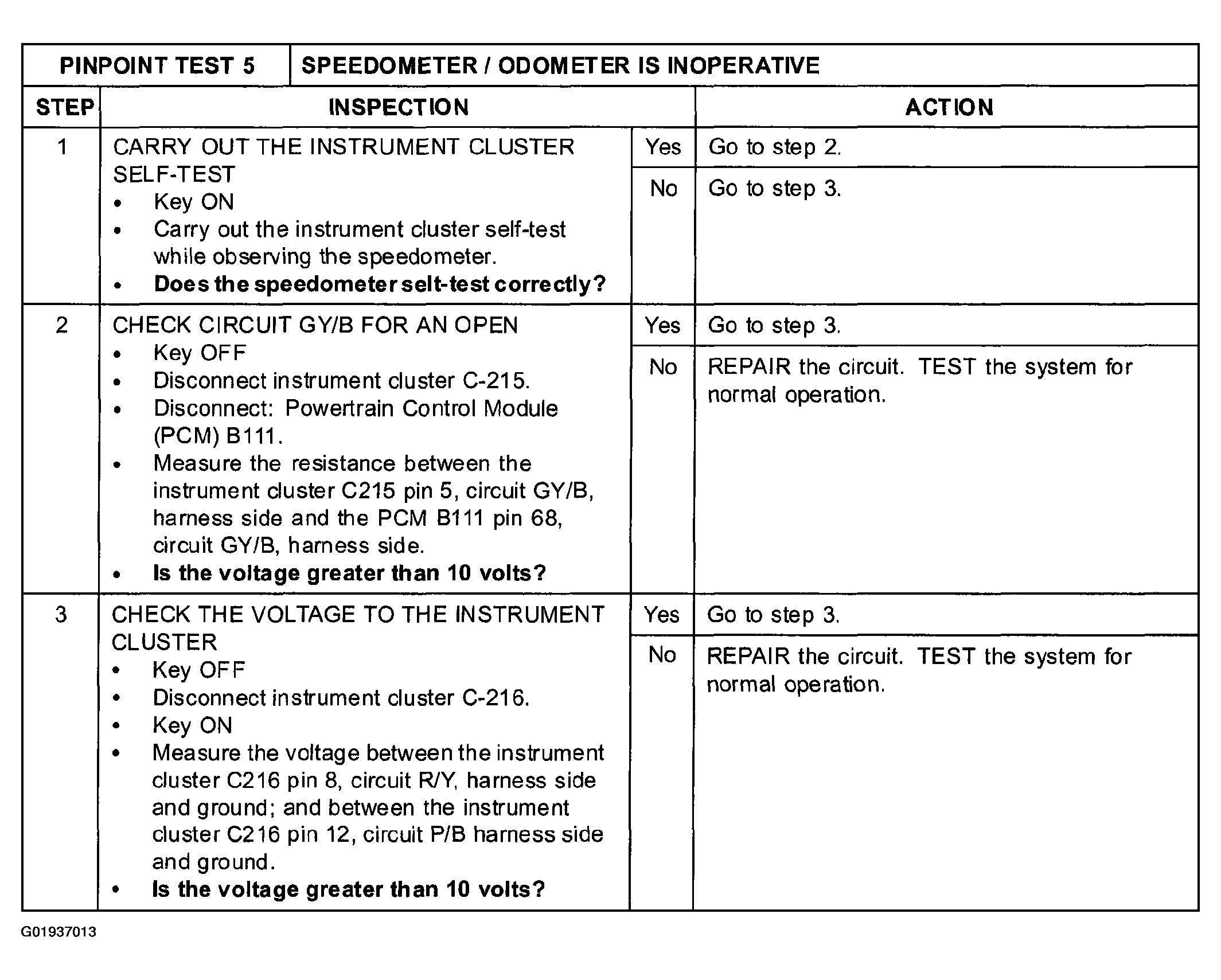

Fig 1: Instrument Cluster Pinpoint Test 5: Speedometer/Odometer Is Inoperative (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

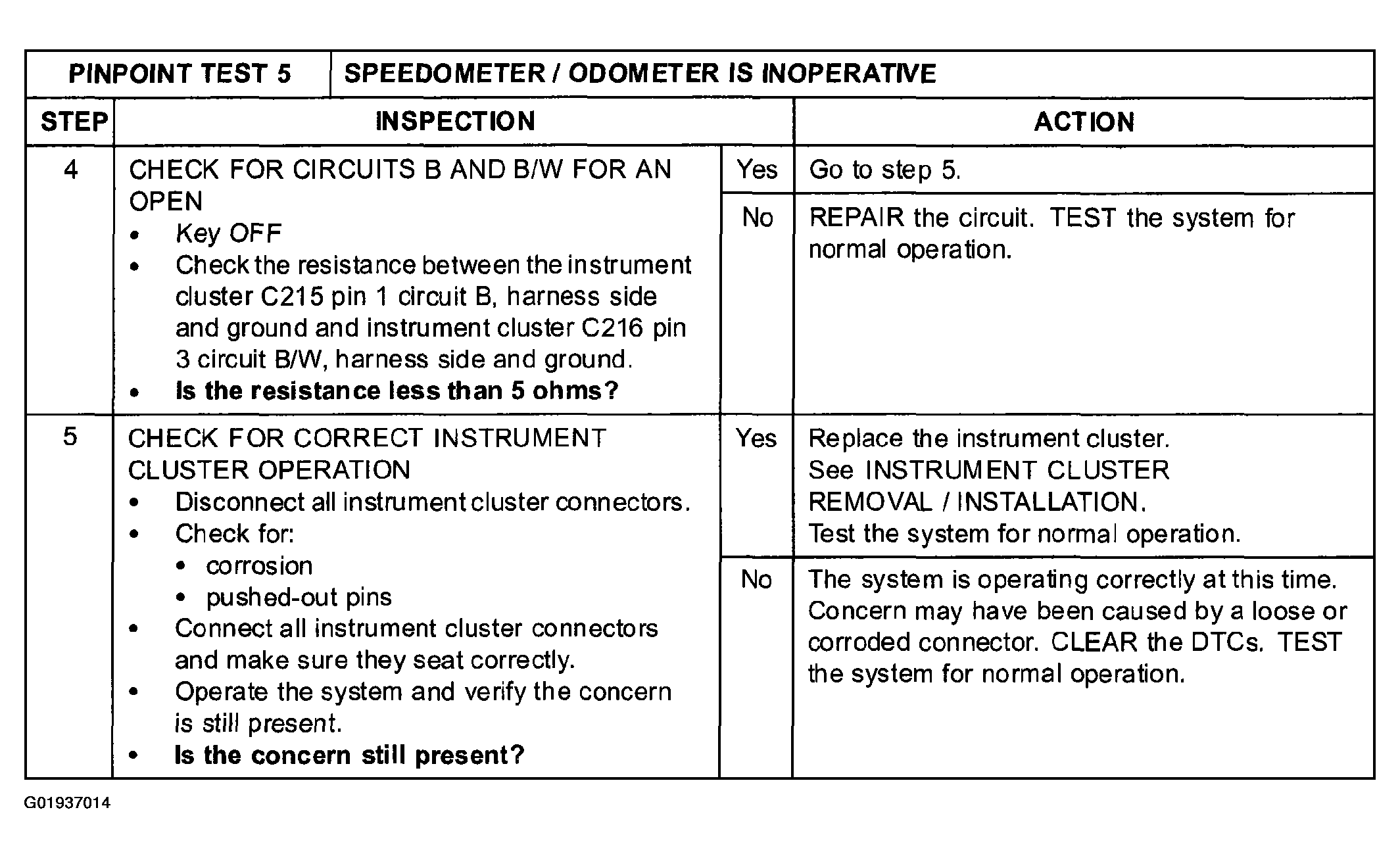

Fig 2: Instrument Cluster Pinpoint Test 5: Speedometer/Odometer Is Inoperative (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

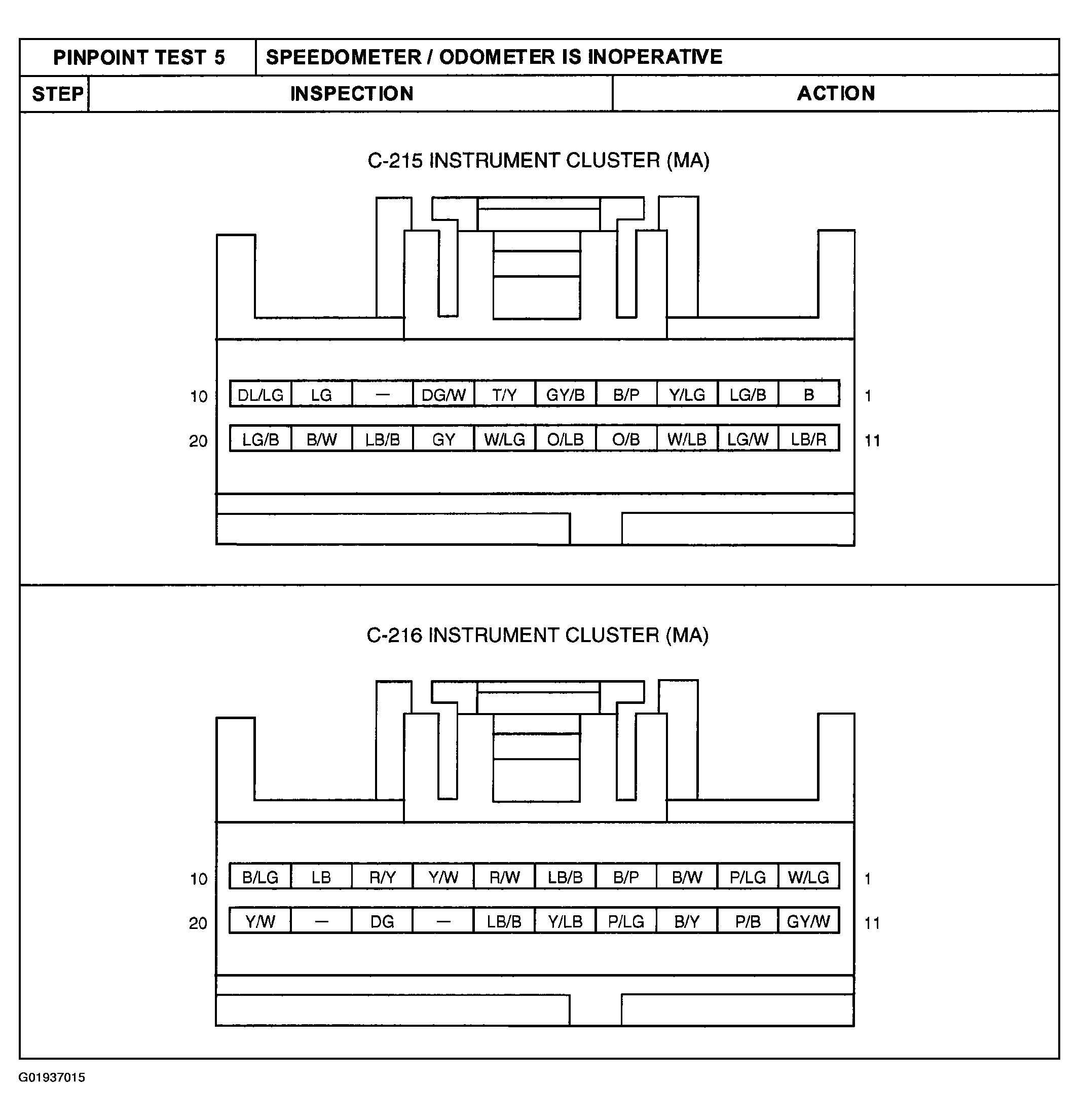

Fig 3: Identifying C-215 & C-216 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
