Instrument Cluster Pinpoint Test 18: Safety Belt Warning Indicator Is Always/Never On

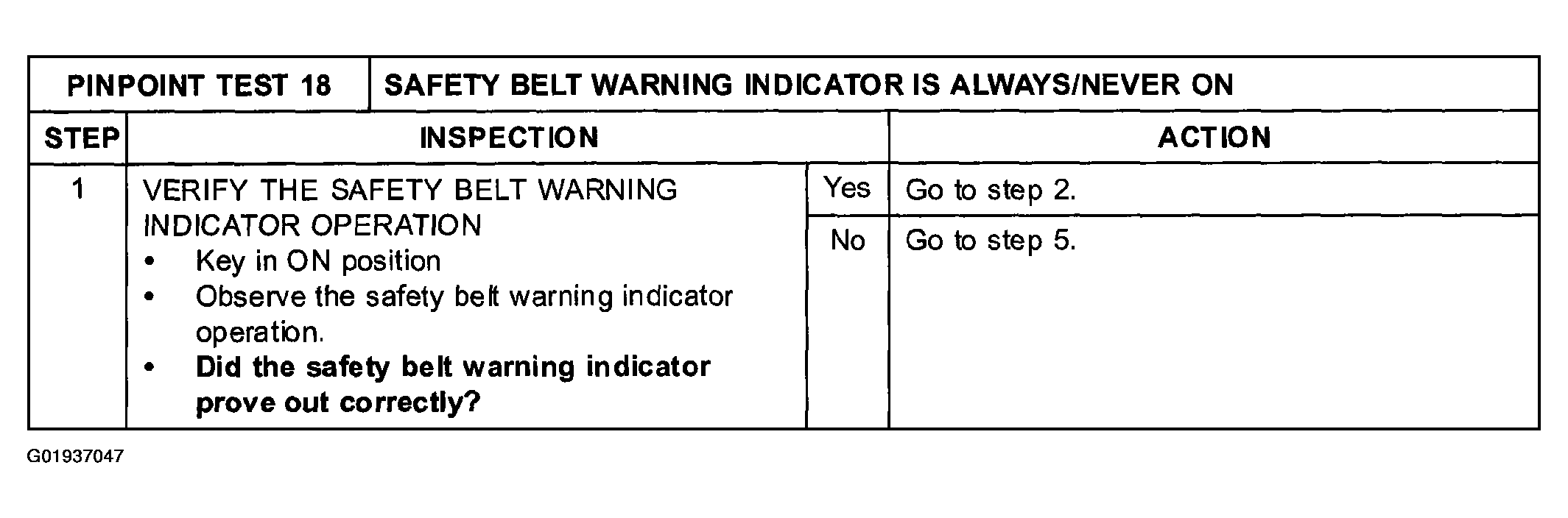

Fig 1: Instrument Cluster Pinpoint Test 18: Safety Belt Warning Indicator Is Always/Never On (Step 1)

Courtesy of MAZDA MOTORS CORP.

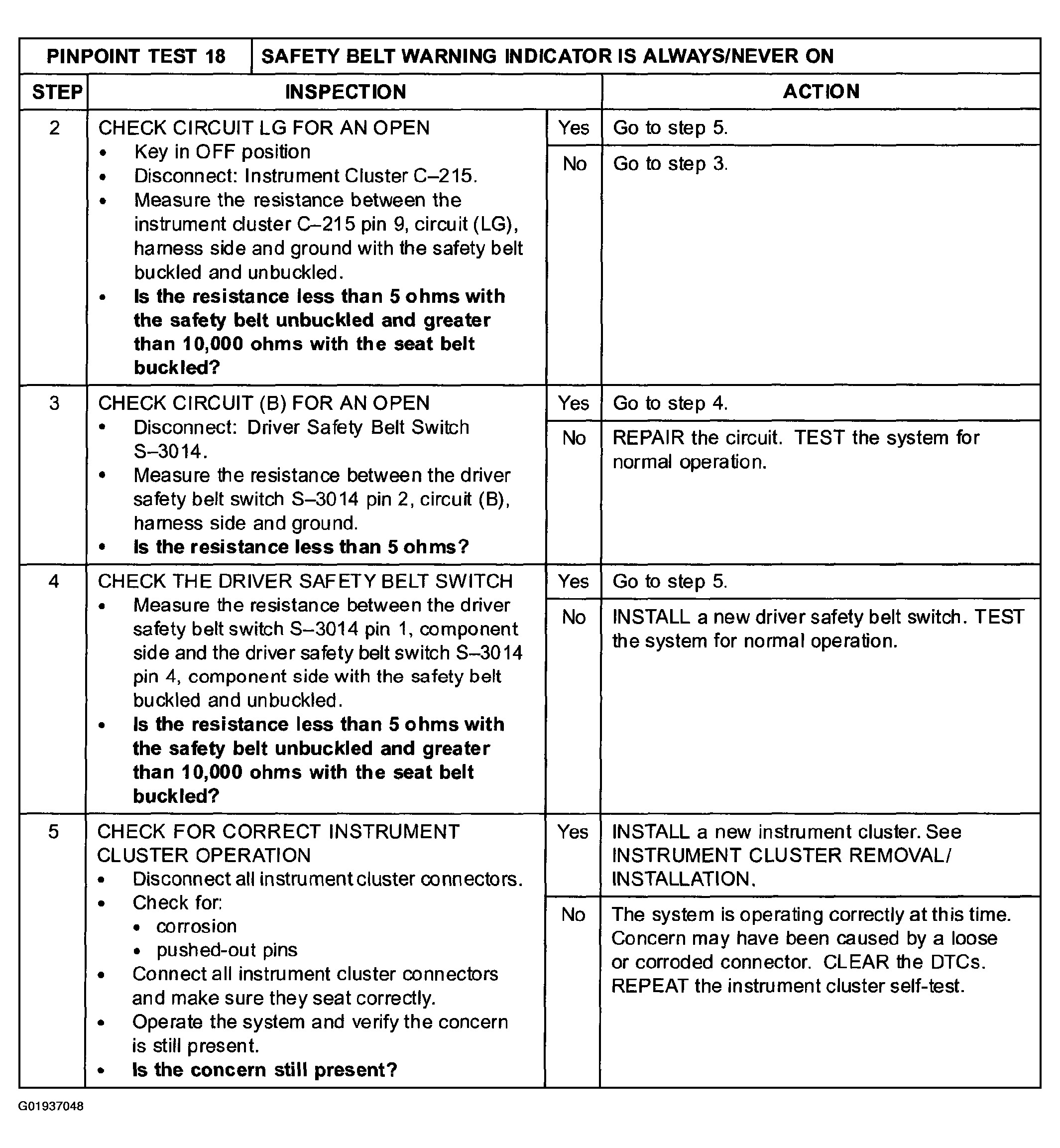

Fig 2: Instrument Cluster Pinpoint Test 18: Safety Belt Warning Indicator Is Always/Never On (Steps 2-5)

Courtesy of MAZDA MOTORS CORP.

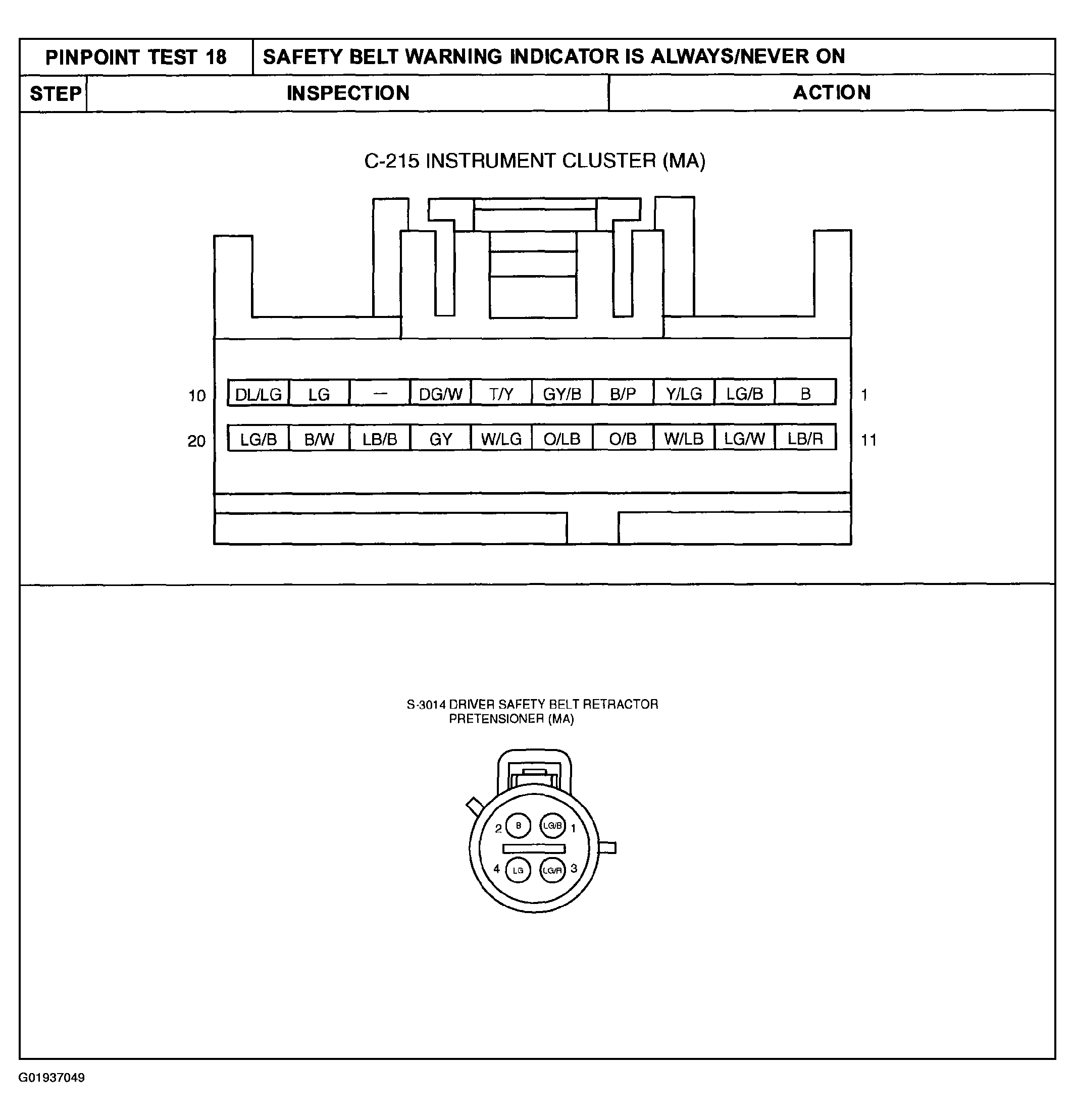

Fig 3: Identifying S-3014 Driver Safety Belt Pretensioner Reactor Pretensioner & C-215 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
