Instrument Cluster Pinpoint Test 21: Incorrect Fuel Gauge Indication

NOTE:

• Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

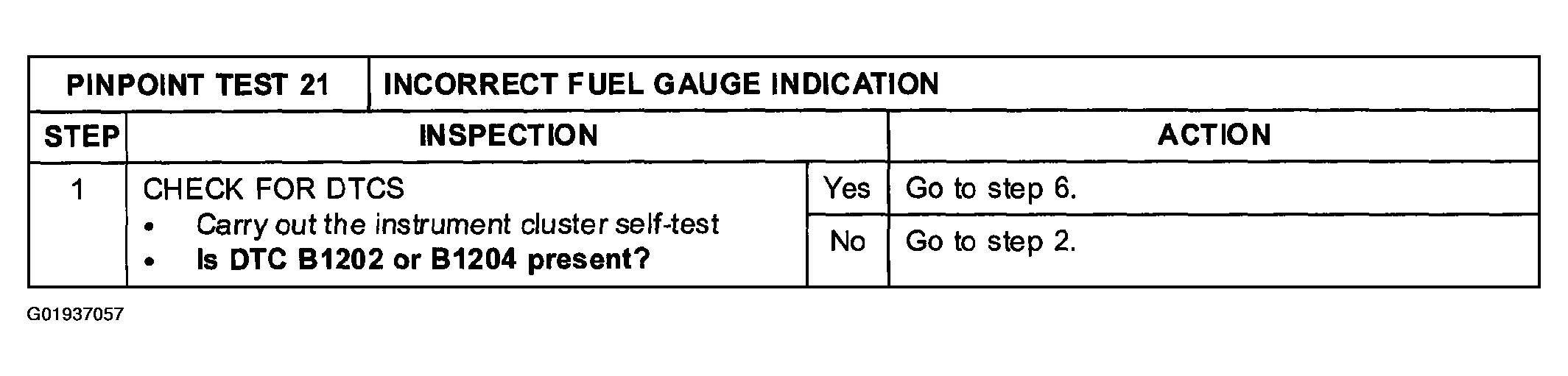

Fig 1: Instrument Cluster Pinpoint Test 21: Incorrect Fuel Gauge Indication (Step 1)

Courtesy of MAZDA MOTORS CORP.

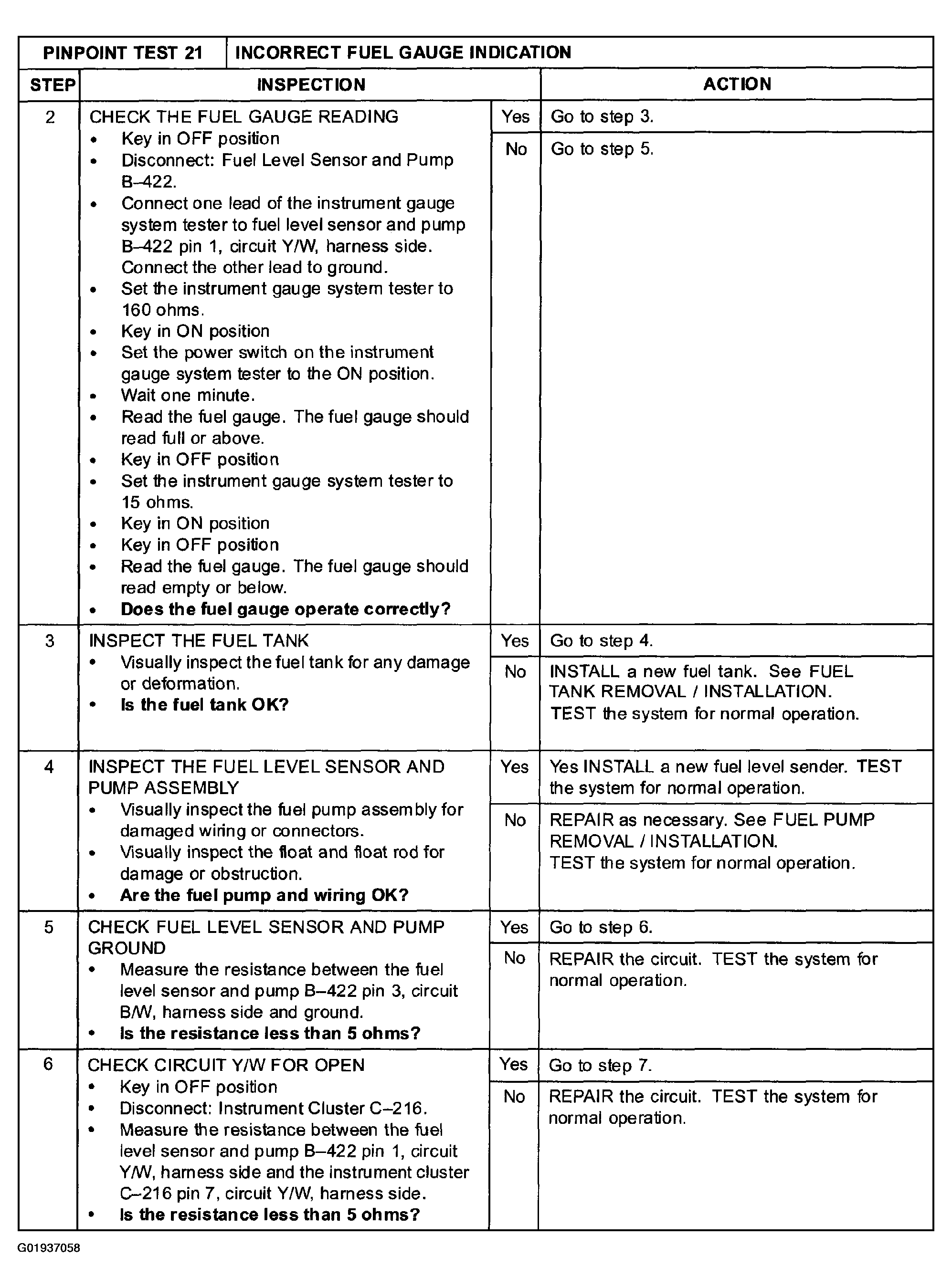

Fig 2: Instrument Cluster Pinpoint Test 21: Incorrect Fuel Gauge Indication (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.

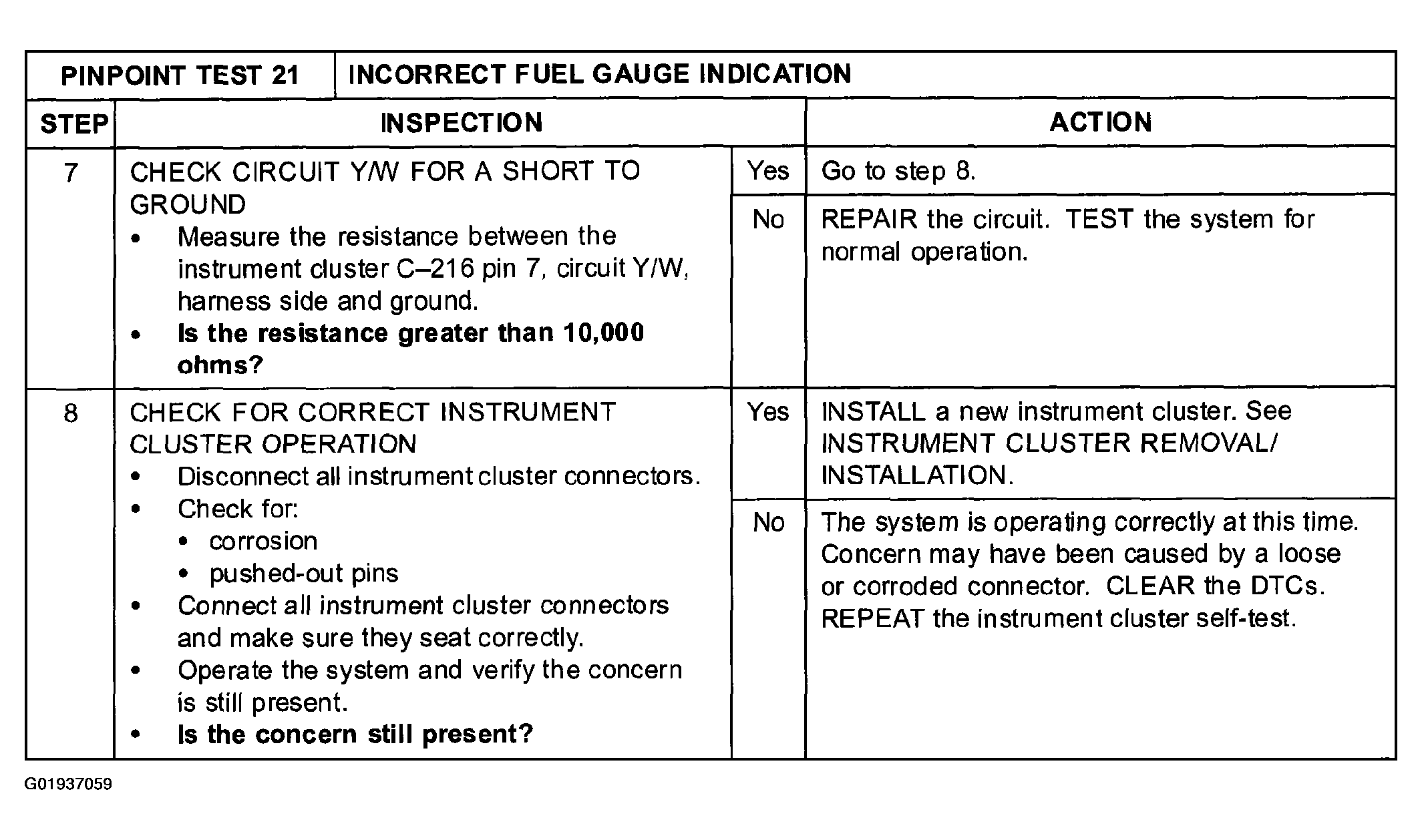

Fig 3: Instrument Cluster Pinpoint Test 21: Incorrect Fuel Gauge Indication (Steps 7-8)

Courtesy of MAZDA MOTORS CORP.

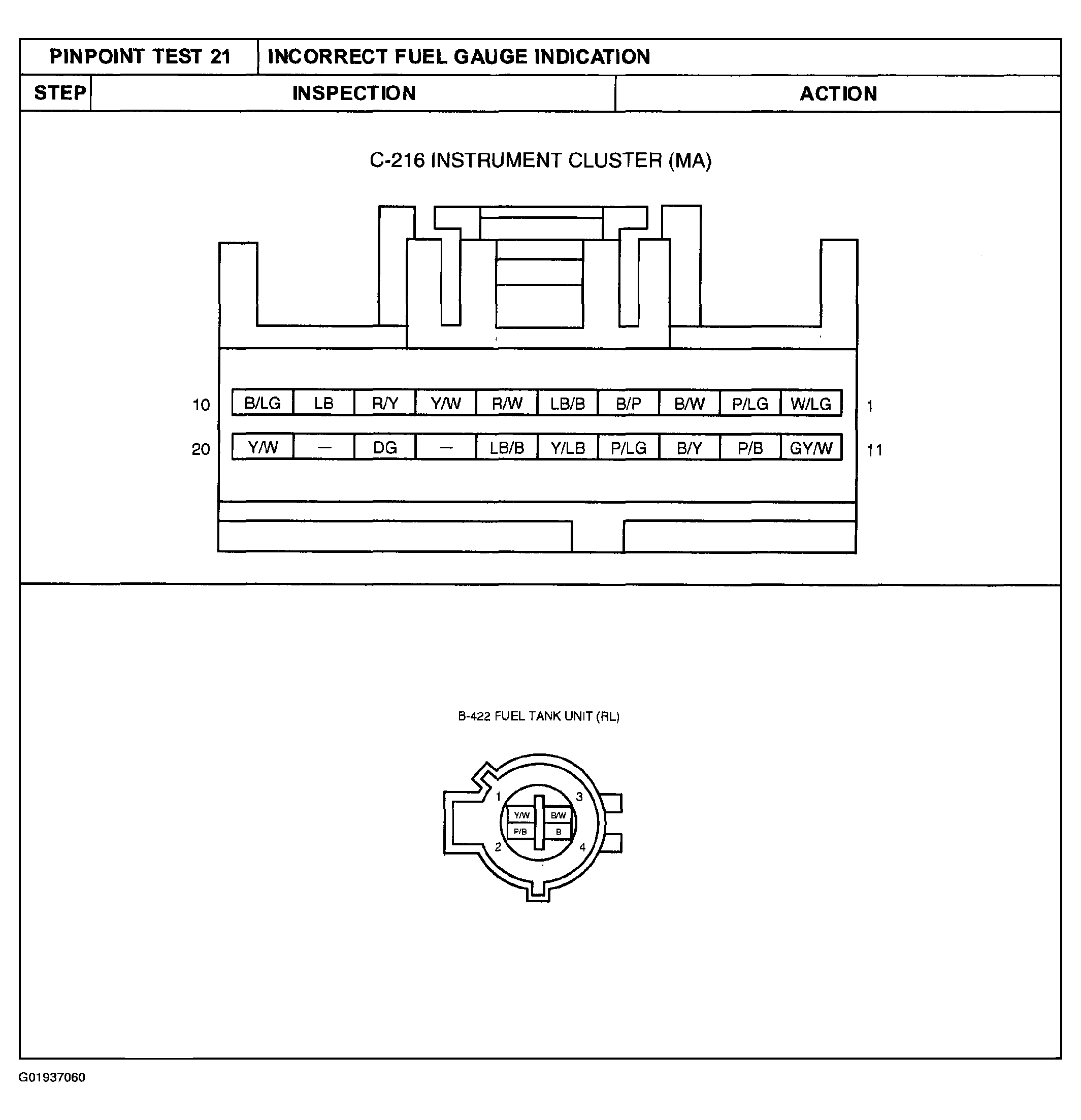

Fig 4: Identifying B-422 Fuel Tank Unit (RL) & C-216 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
