Instrument Cluster Pinpoint Test 2: Incorrect Temperature Gauge Indication

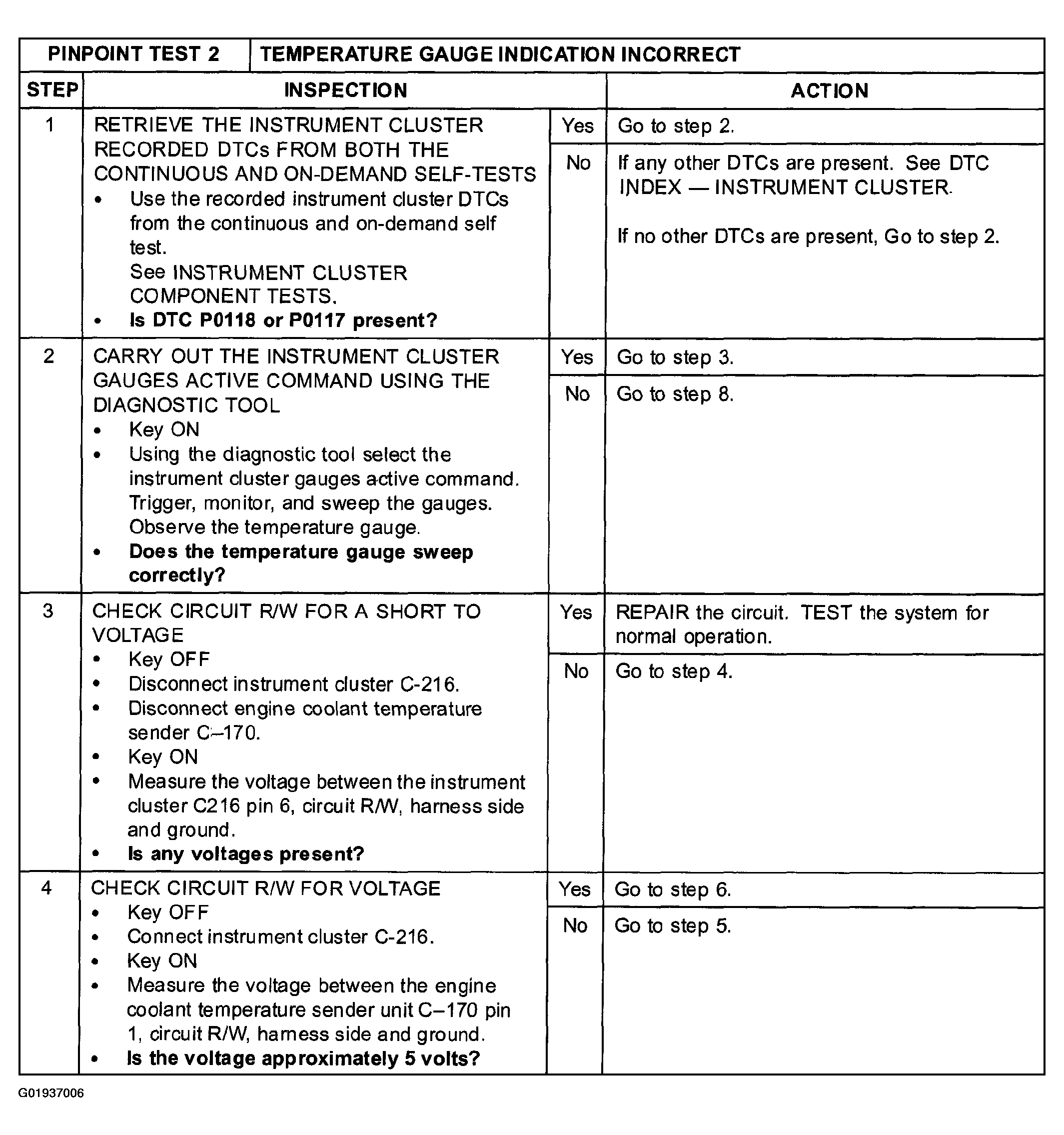

Fig 1: Instrument Cluster Pinpoint Test 2: Incorrect Temperature Gauge Indication (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

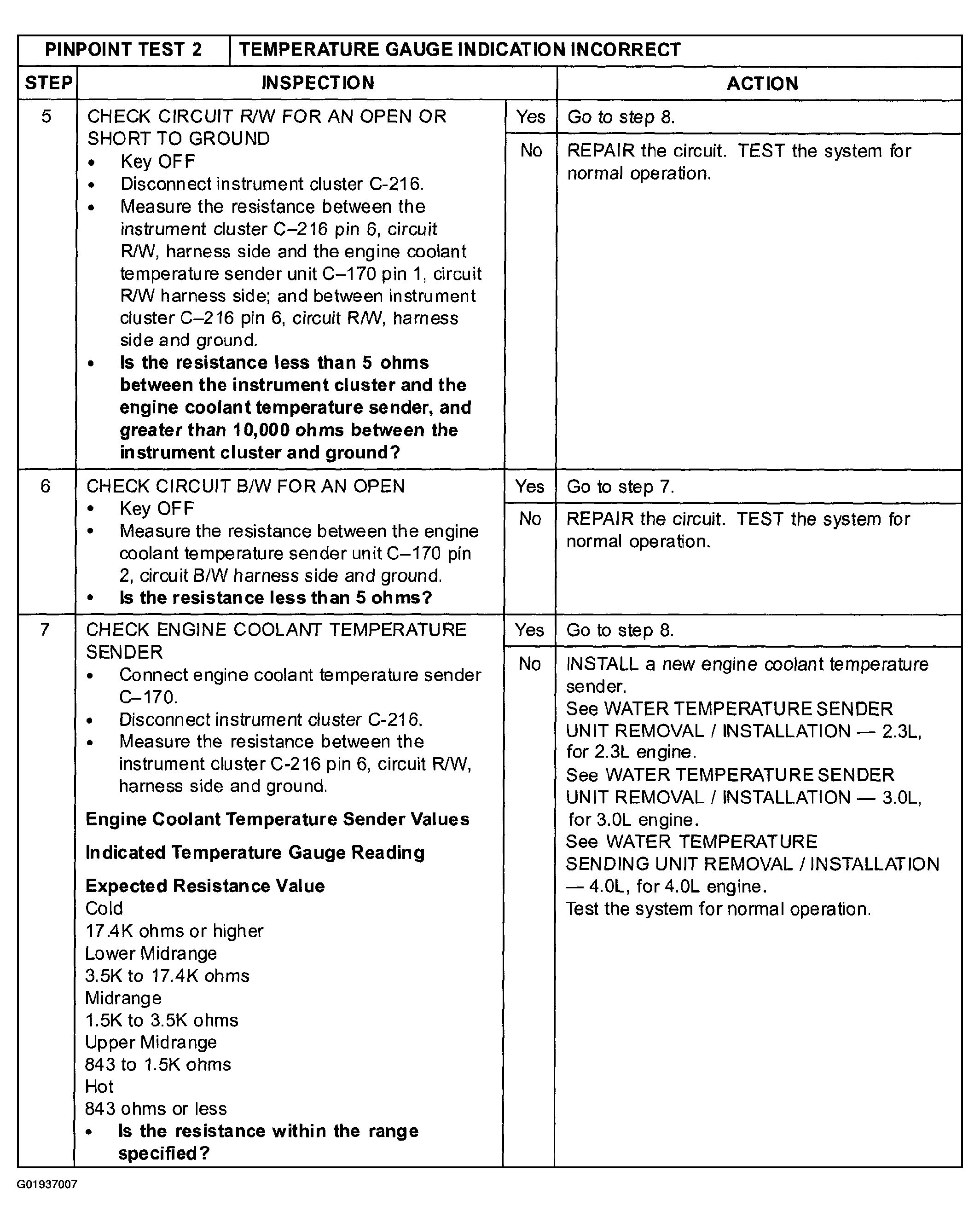

Fig 2: Instrument Cluster Pinpoint Test 2: Incorrect Temperature Gauge Indication (Steps 5-7)

Courtesy of MAZDA MOTORS CORP.

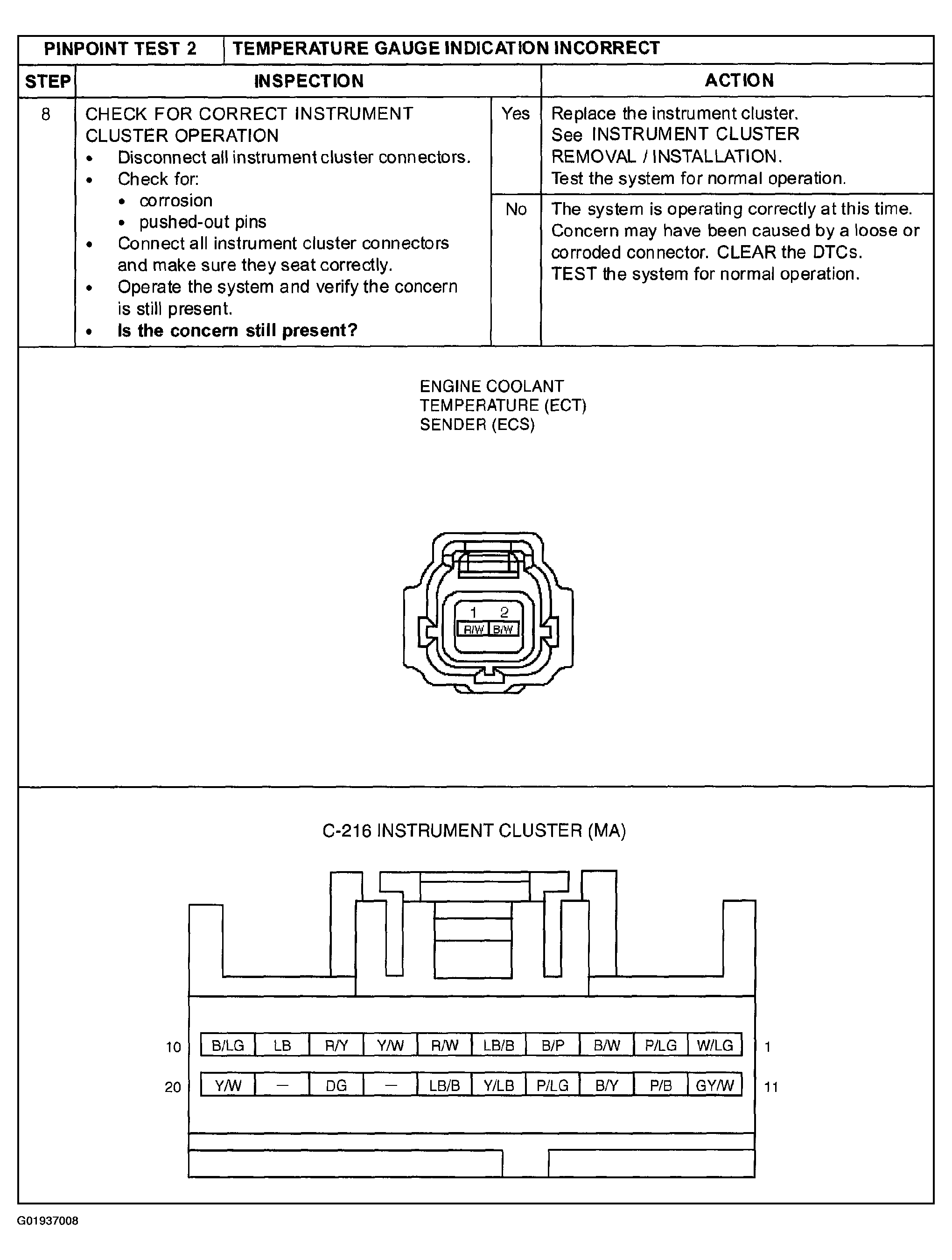

Fig 3: Instrument Cluster Pinpoint Test 2: Incorrect Temperature Gauge Indication (Step 8 & ECT Sender & Instrument Cluster Connector Terminals Wire Color)

Courtesy of MAZDA MOTORS CORP.
