Instrument Cluster Pinpoint Test 20: Air Bag Indicator Is Never/Always On

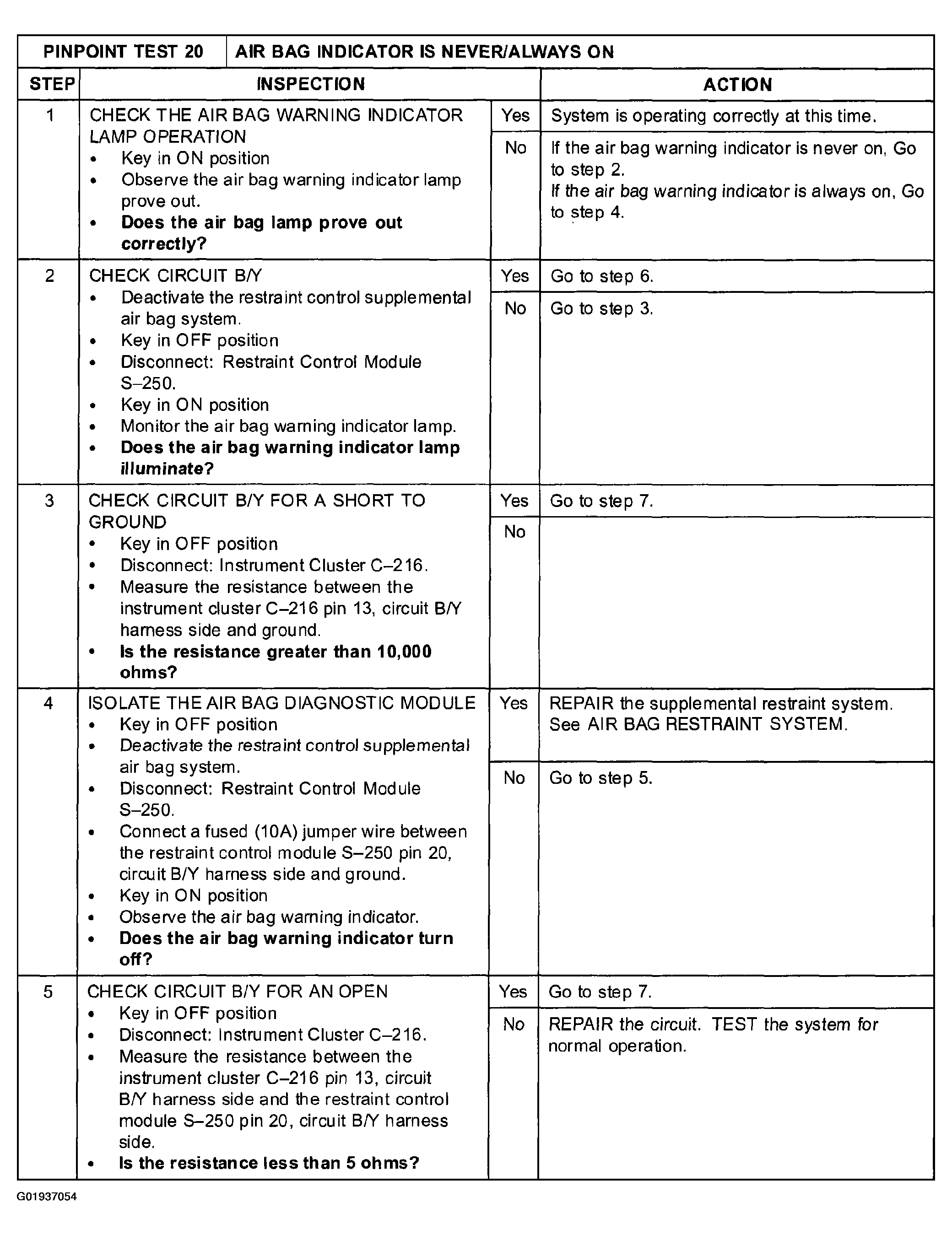

Fig 1: Instrument Cluster Pinpoint Test 20: Air Bag Indicator Is Never/Always On (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

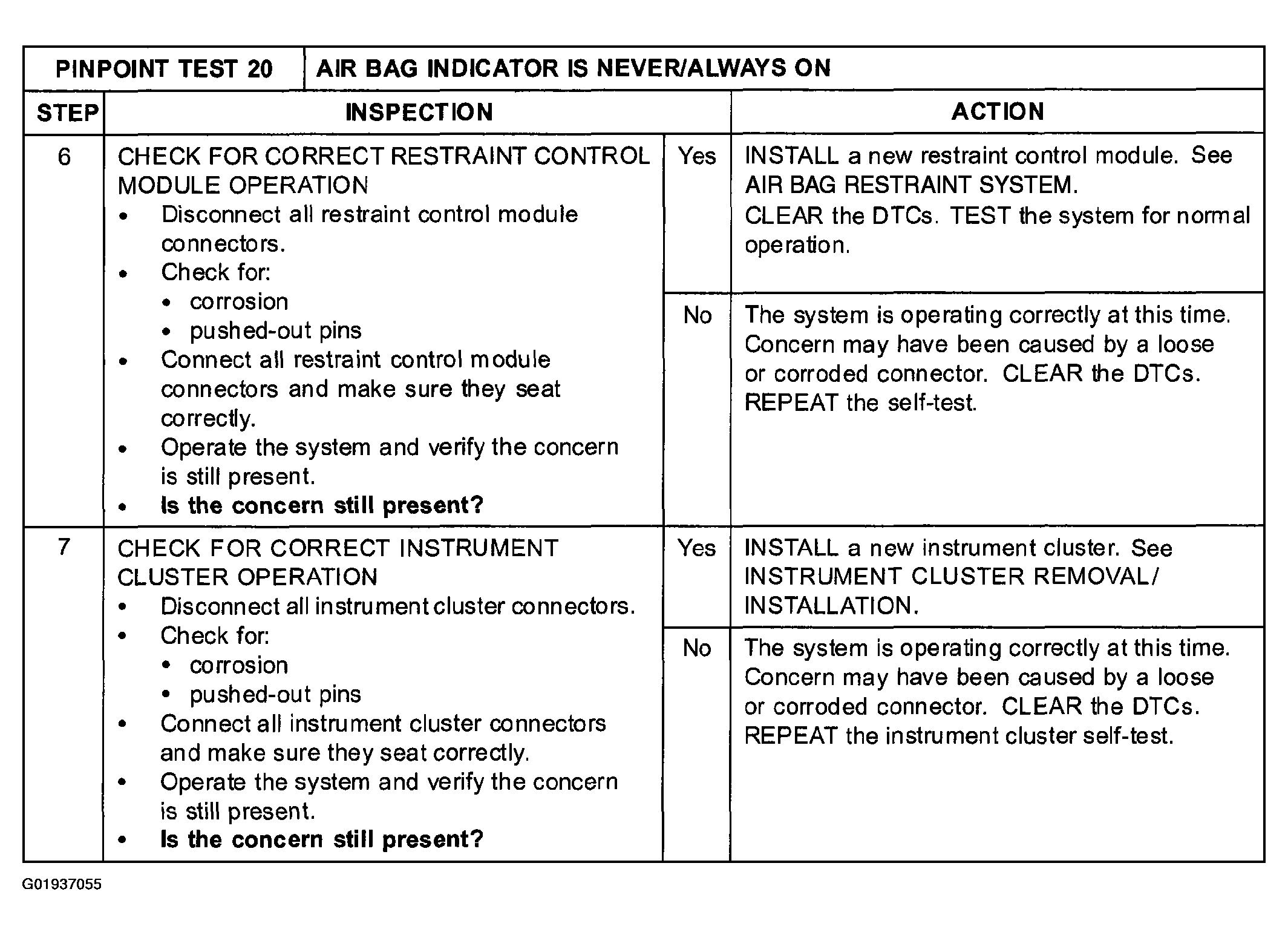

Fig 2: Instrument Cluster Pinpoint Test 20: Air Bag Indicator Is Never/Always On (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.

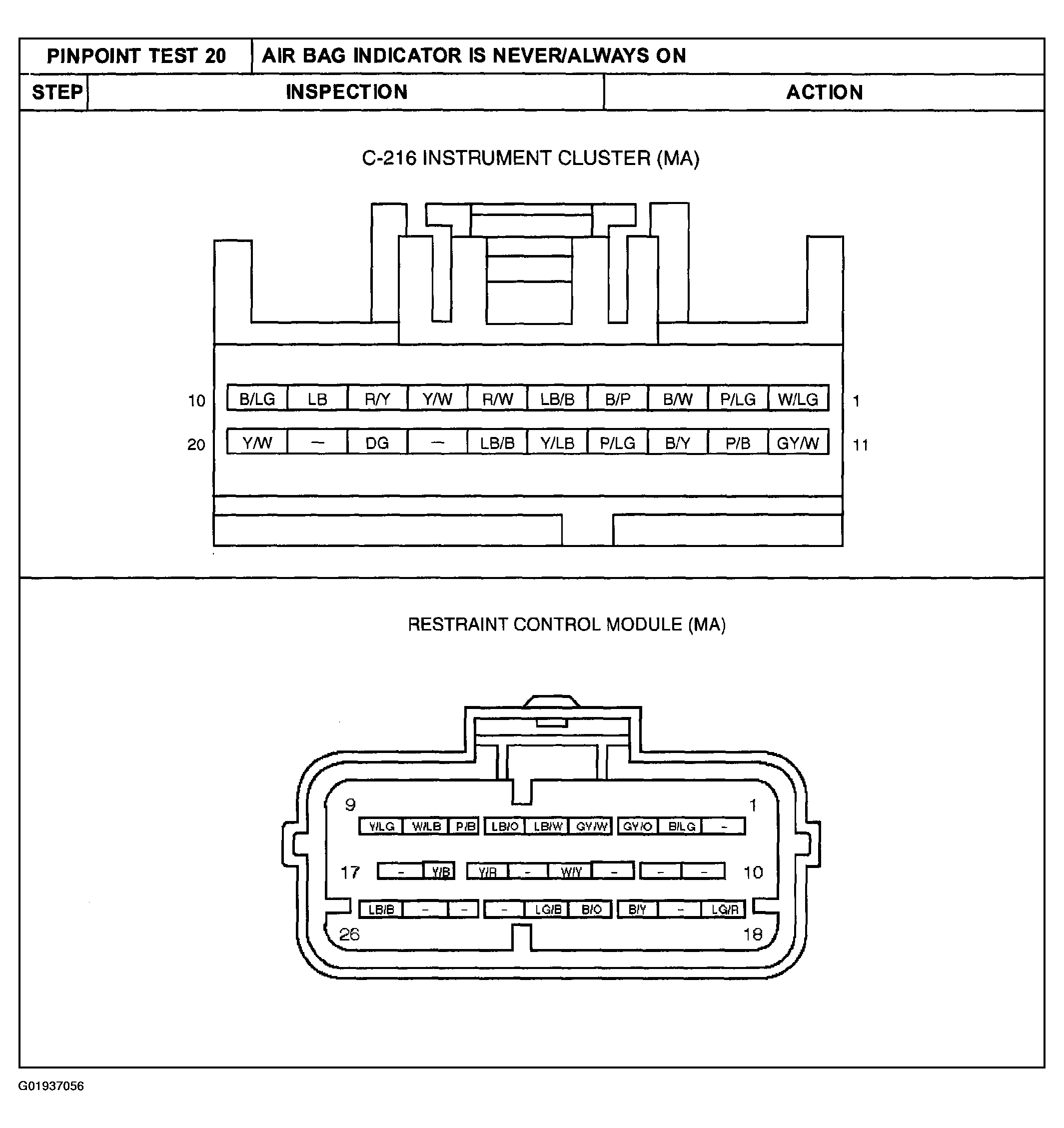

Fig 3: Identifying Restraint Control Module & C-216 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
