Instrument Cluster Pinpoint Test 16: Brake Warning Indicator Is Never On/Always On

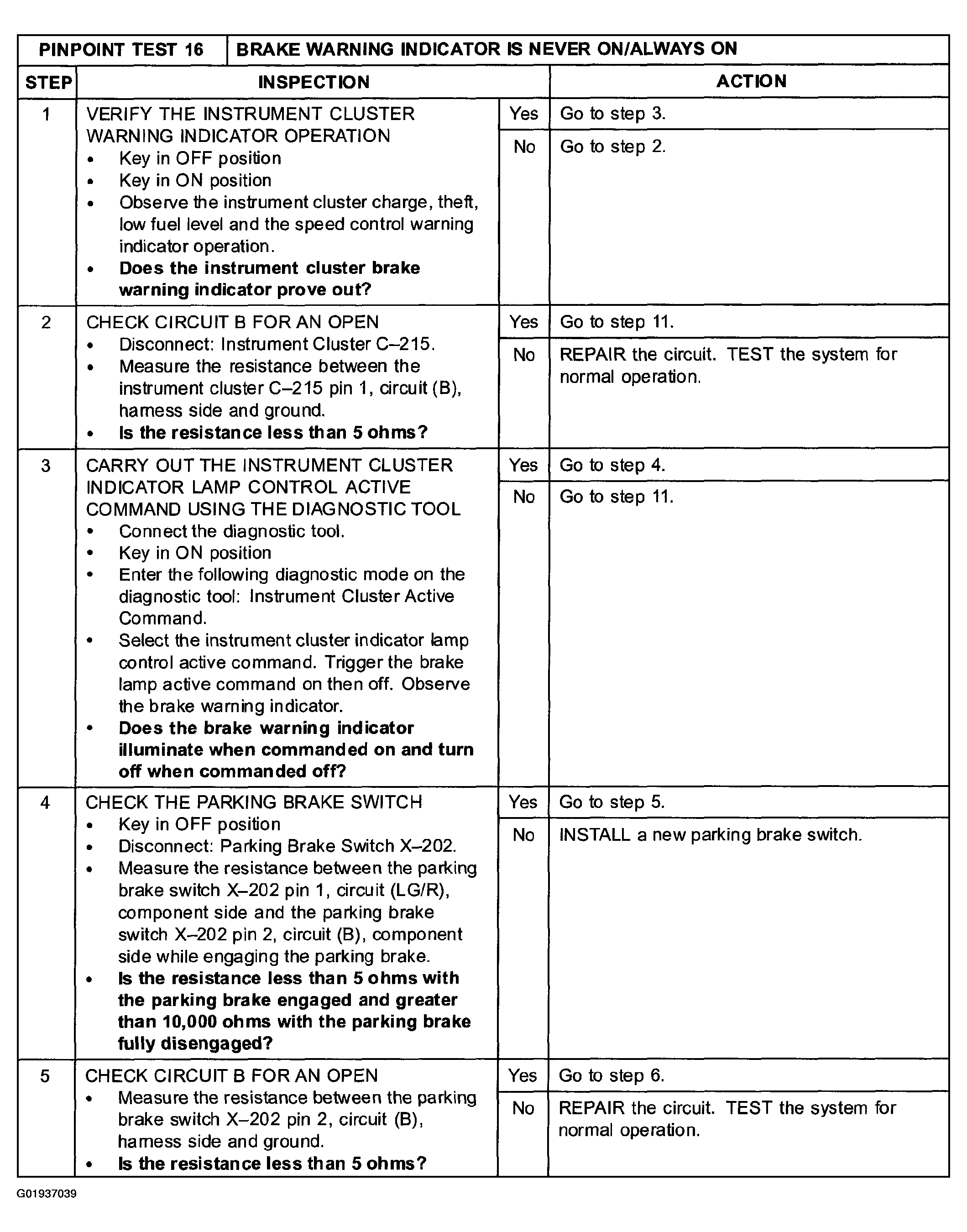

Fig 1: Instrument Cluster Pinpoint Test 16: Brake Warning Indicator Is Never On/Always On (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

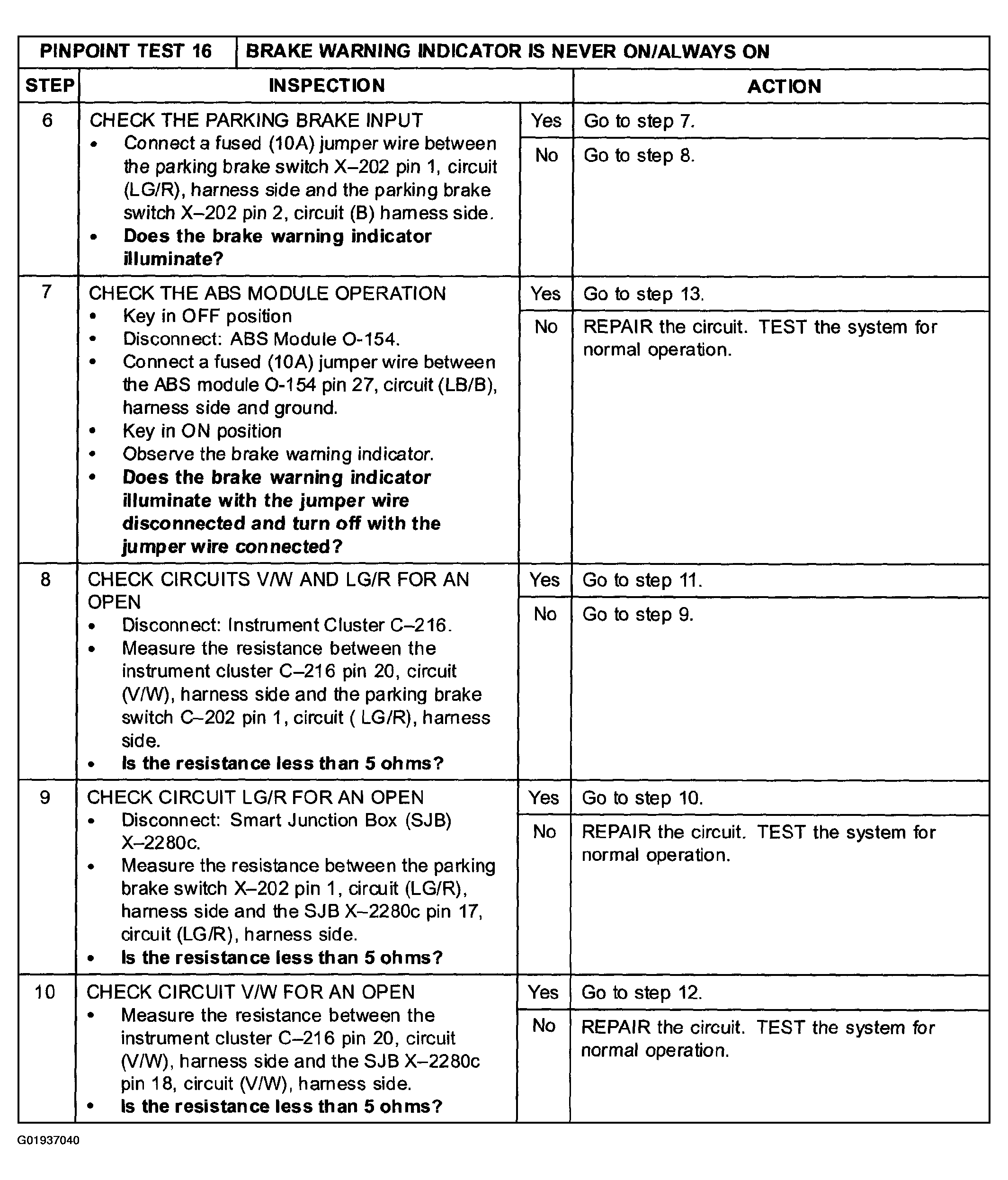

Fig 2: Instrument Cluster Pinpoint Test 16: Brake Warning Indicator Is Never On/Always On (Steps 6-10)

Courtesy of MAZDA MOTORS CORP.

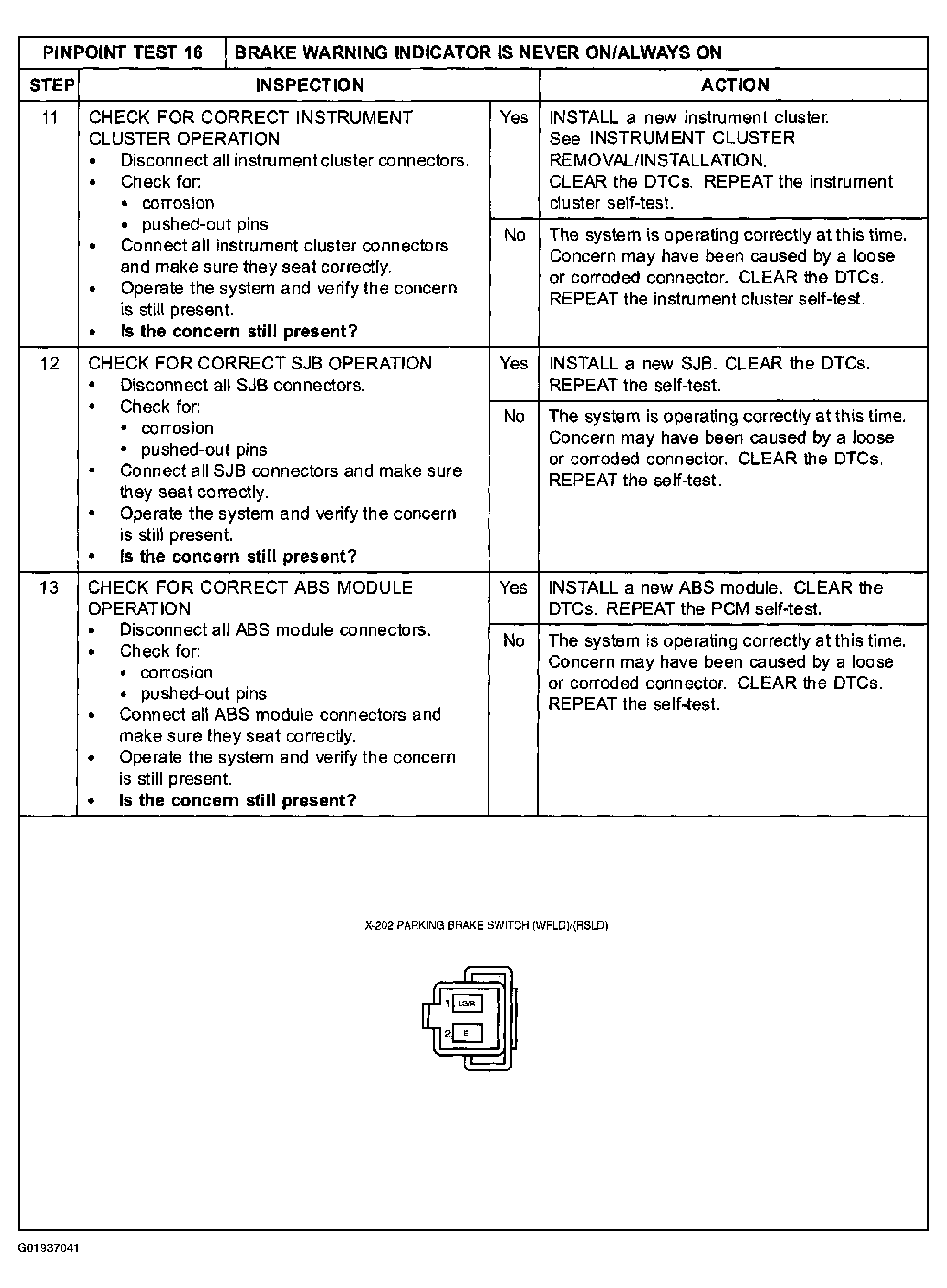

Fig 3: Instrument Cluster Pinpoint Test 16: Brake Warning Indicator Is Never On/Always On (Steps 11-16 & X202 Parking Brake Switch Connector Terminals Wire Color)

Courtesy of MAZDA MOTORS CORP.

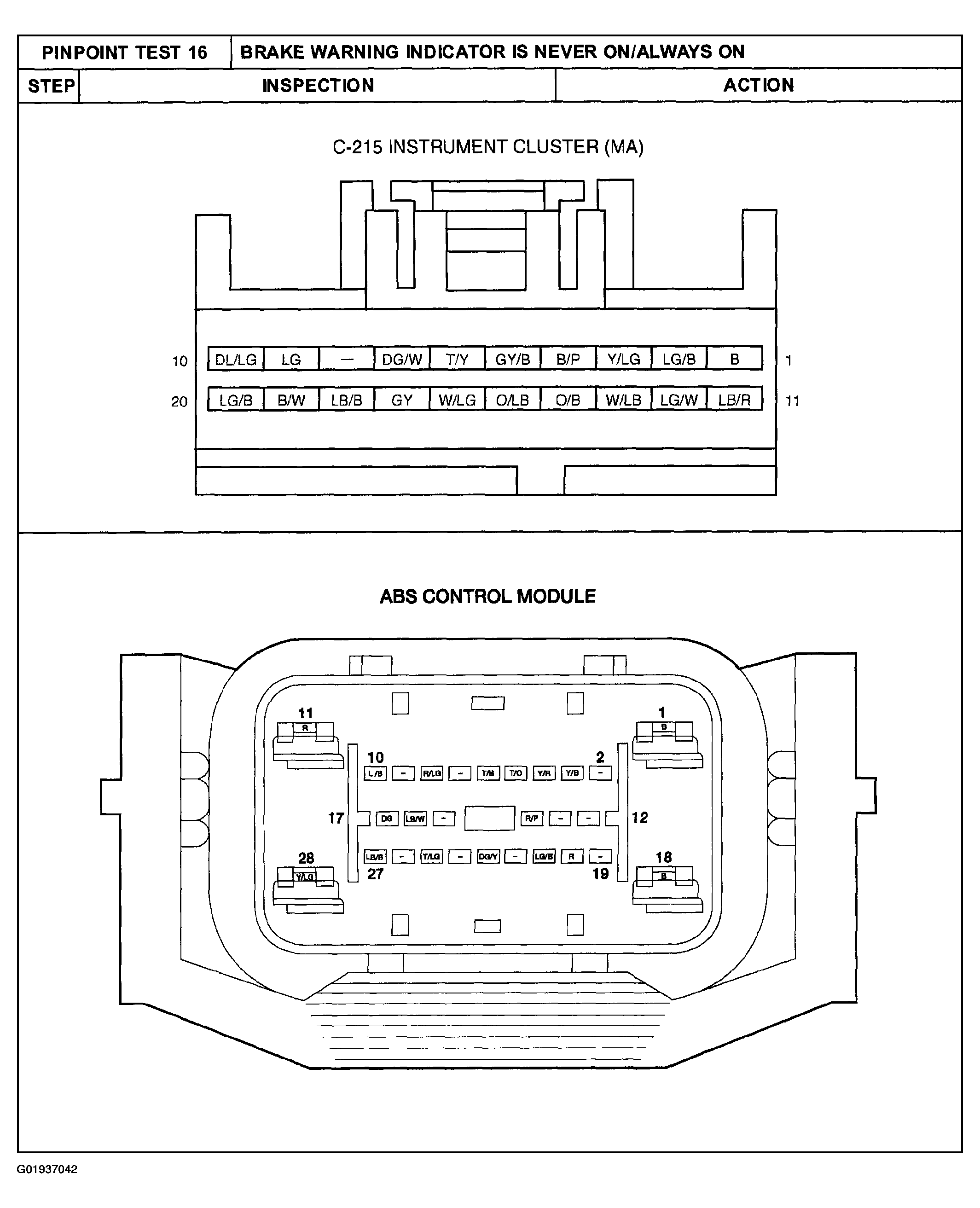

Fig 4: Identifying ABS Control Module & C-215 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
