Instrument Cluster Pinpoint Test 8: Anti-Lock Brake Warning Indicator Is Never On/Always On

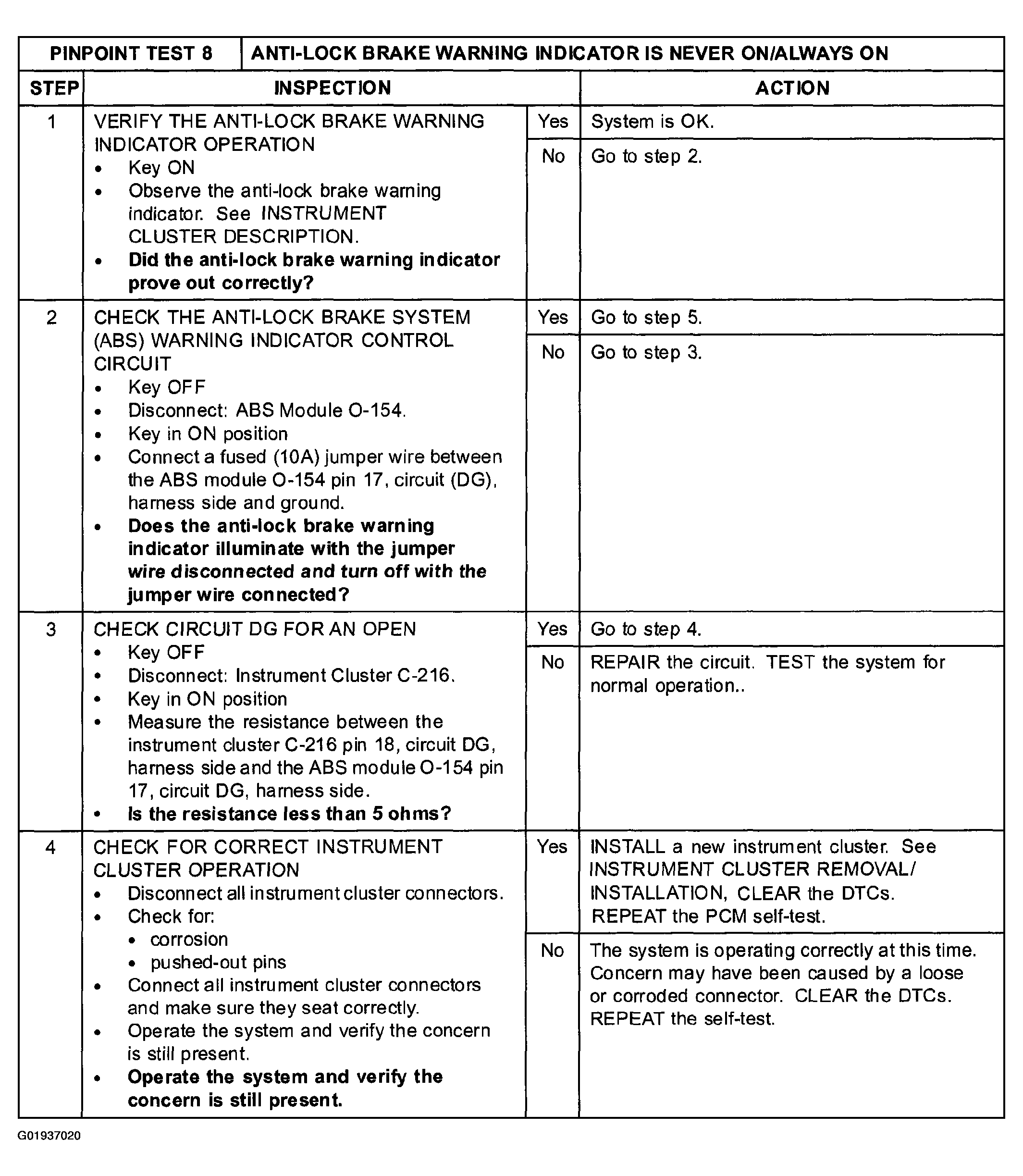

Fig 1: Instrument Cluster Pinpoint Test 8: Anti-Lock Brake Warning Indicator Is Never On/Always On (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

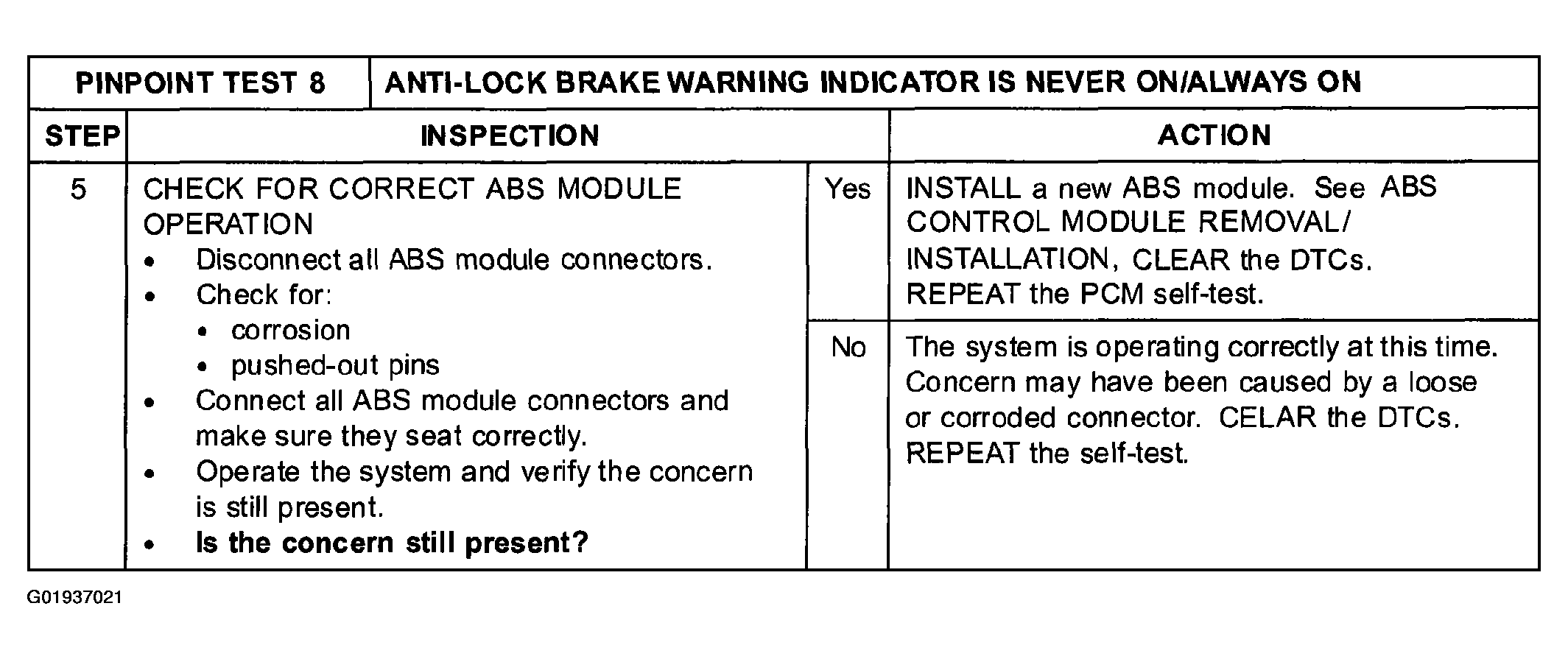

Fig 2: Instrument Cluster Pinpoint Test 8: Anti-Lock Brake Warning Indicator Is Never On/Always On (Step 5)

Courtesy of MAZDA MOTORS CORP.

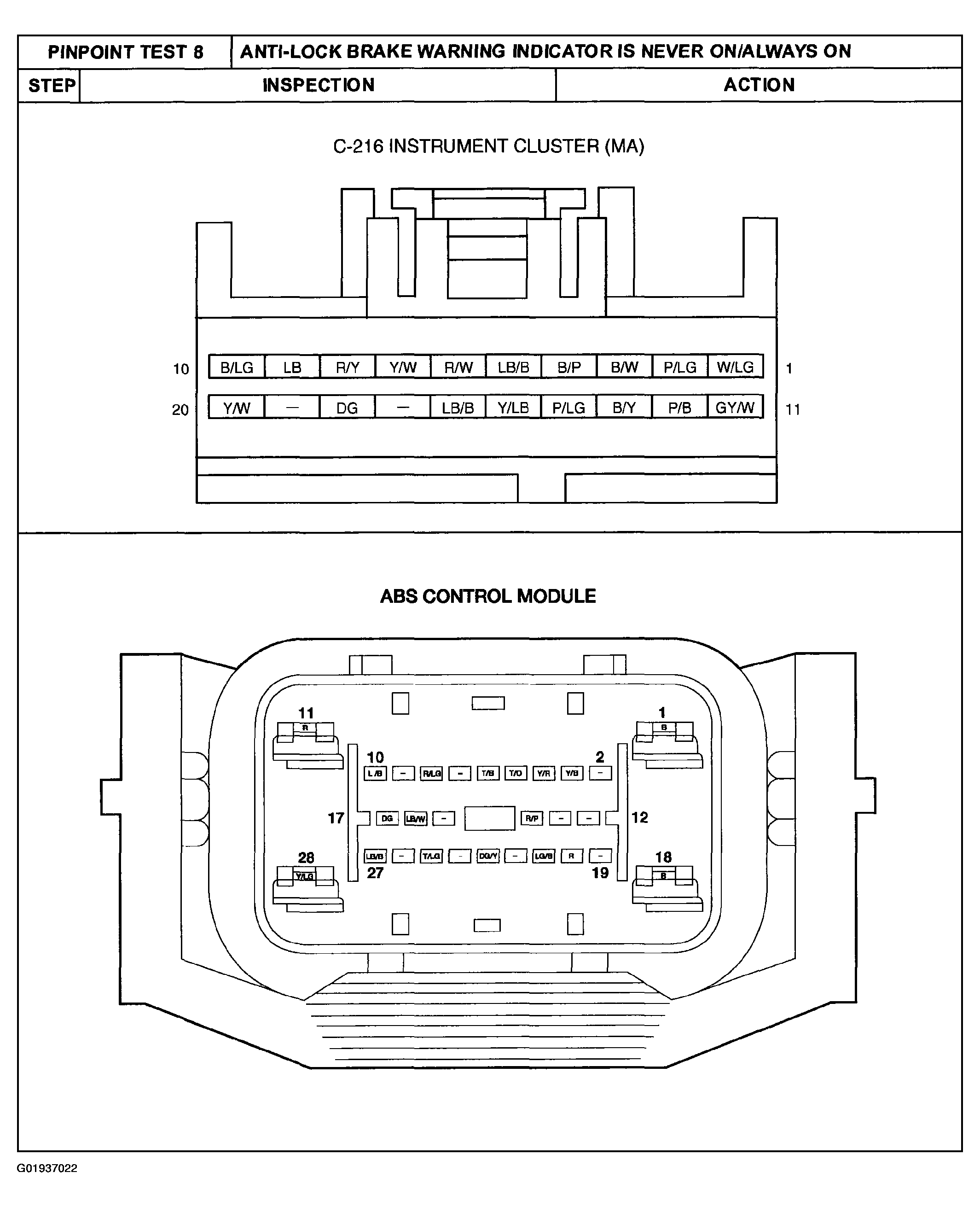

Fig 3: Identifying ABS Control Module & C-216 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
