Instrument Cluster Pinpoint Test 19: 4X4 High And 4X4 Low Indicator Is Never On

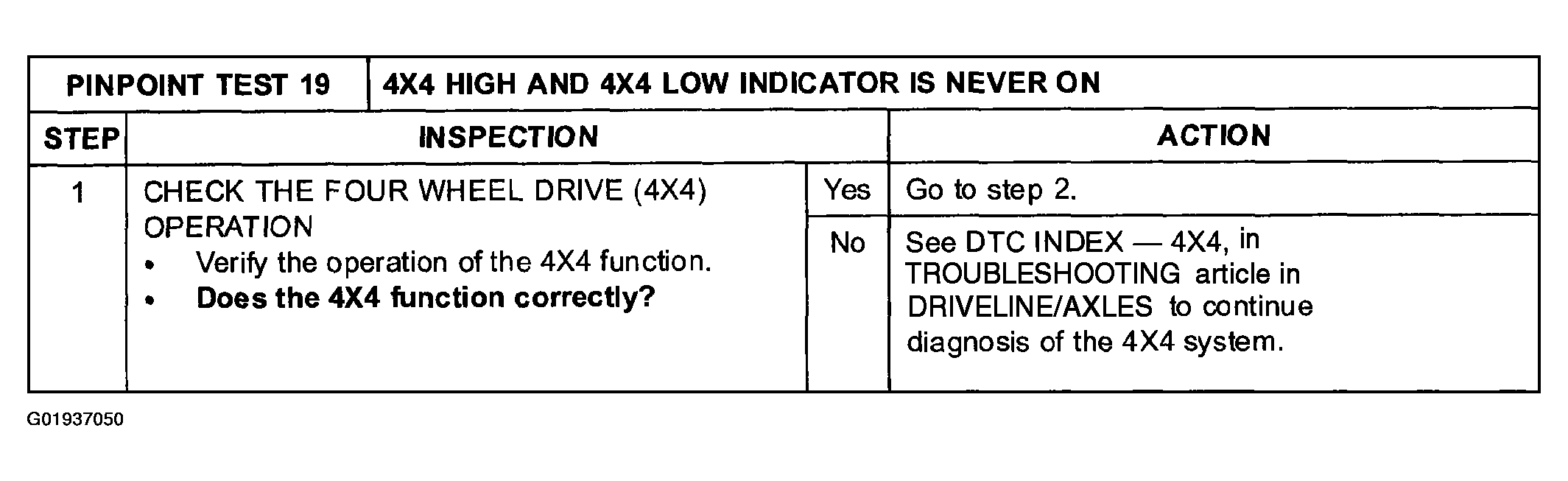

Fig 1: Instrument Cluster Pinpoint Test 19: 4X4 High And 4X4 Low Indicator Is Never On (Step 1)

Courtesy of MAZDA MOTORS CORP.

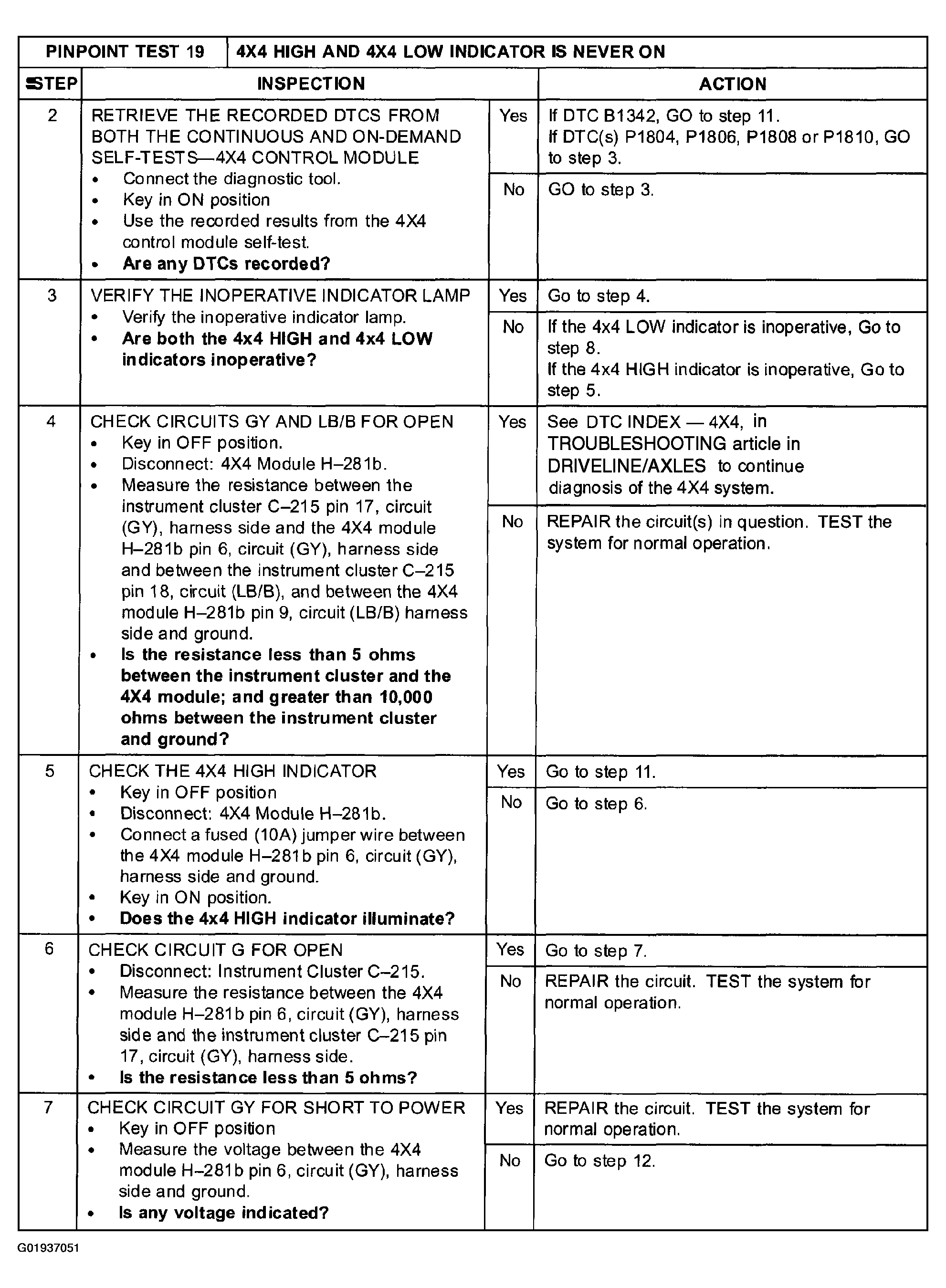

Fig 2: Instrument Cluster Pinpoint Test 19: 4X4 High And 4X4 Low Indicator Is Never On (Steps 2-7)

Courtesy of MAZDA MOTORS CORP.

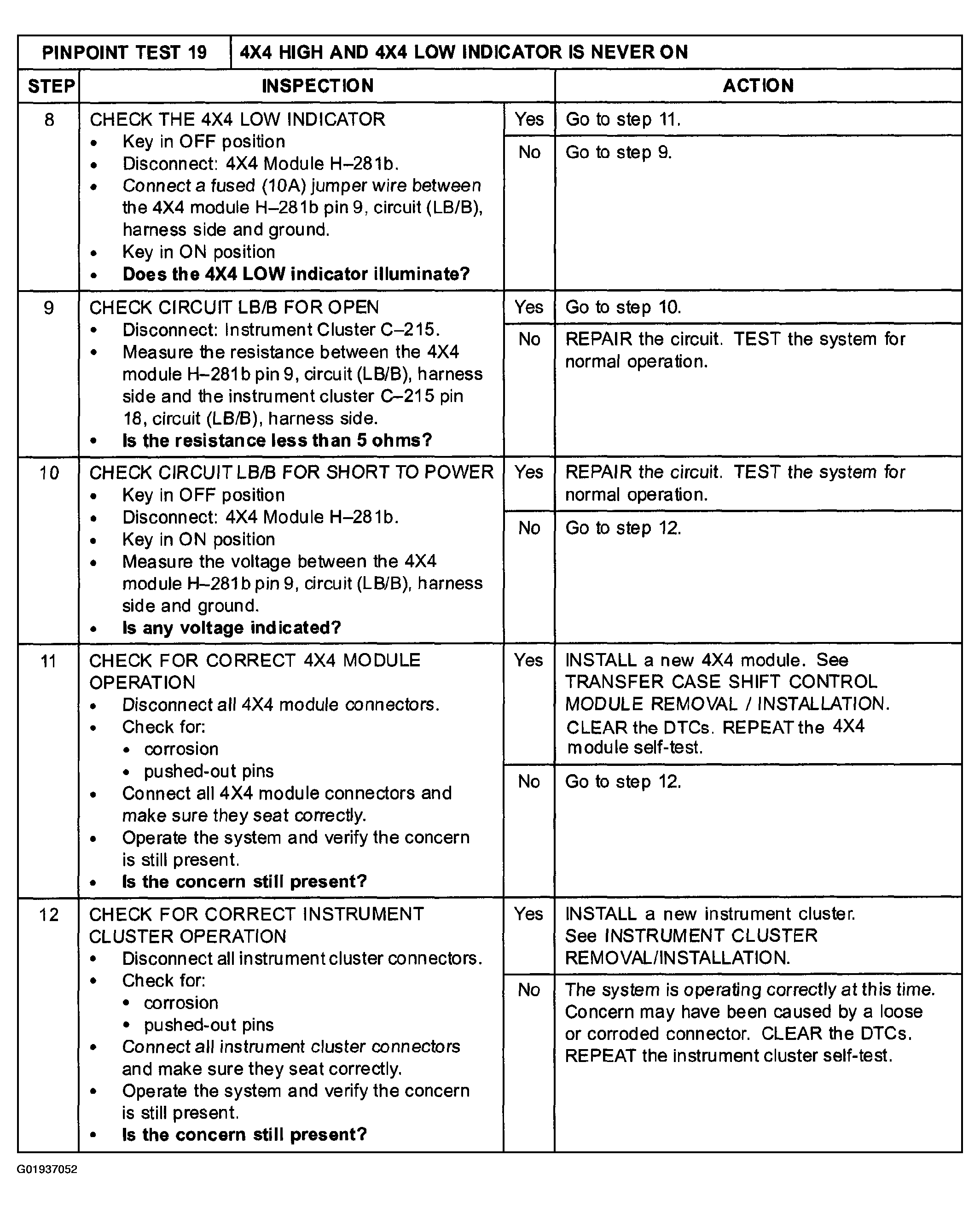

Fig 3: Instrument Cluster Pinpoint Test 19: 4X4 High And 4X4 Low Indicator Is Never On (Steps 8-12)

Courtesy of MAZDA MOTORS CORP.

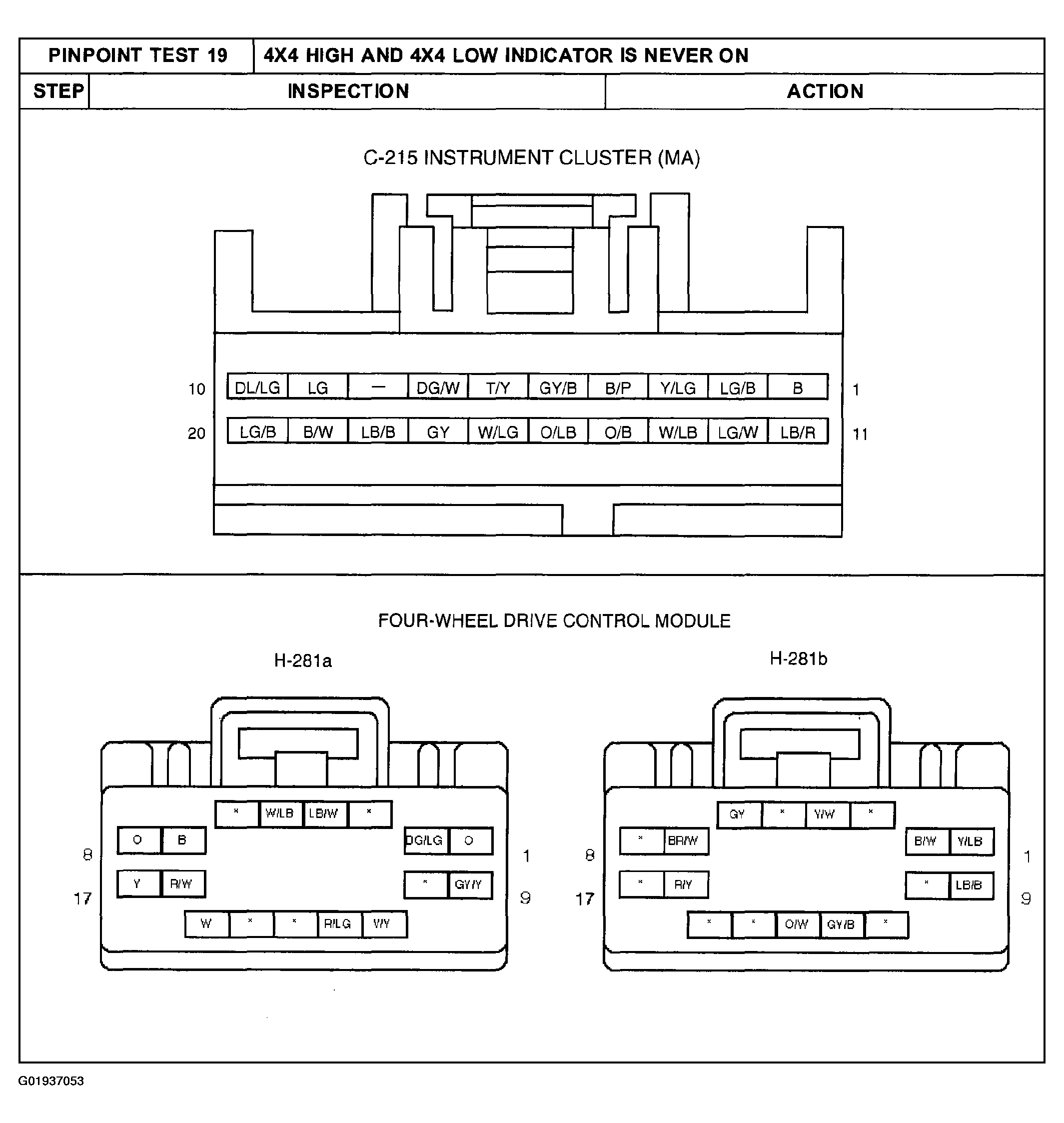

Fig 4: Identifying Four Wheel Drive Control Module & C-215 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
