Instrument Cluster Pinpoint Test 7: Charge System Warning Indicator Is Never On

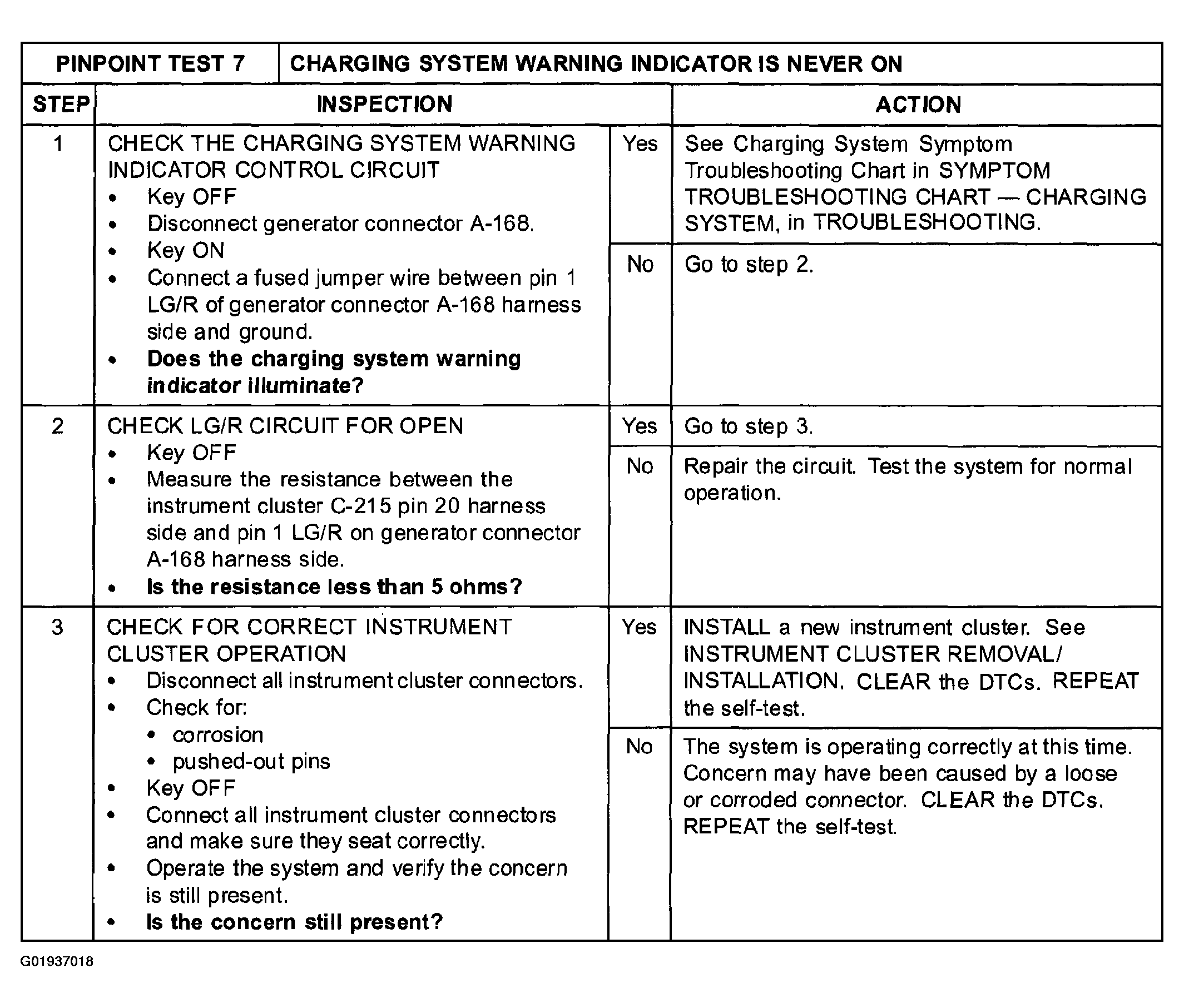

Fig 1: Instrument Cluster Pinpoint Test 7: Charge System Warning Indicator Is Never On

Courtesy of MAZDA MOTORS CORP.

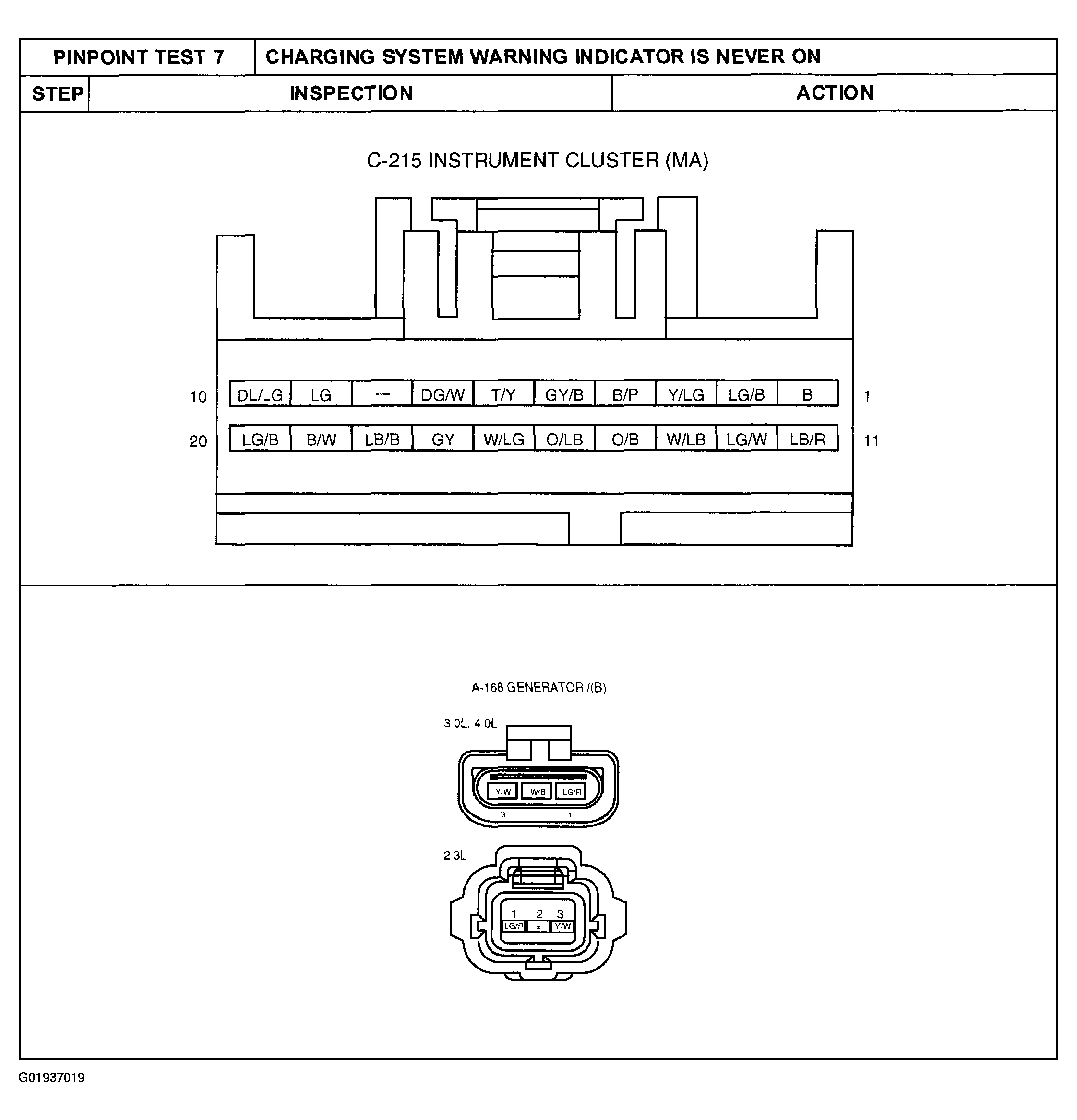

Fig 2: Identifying A-168 Generator & C-215 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
