Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

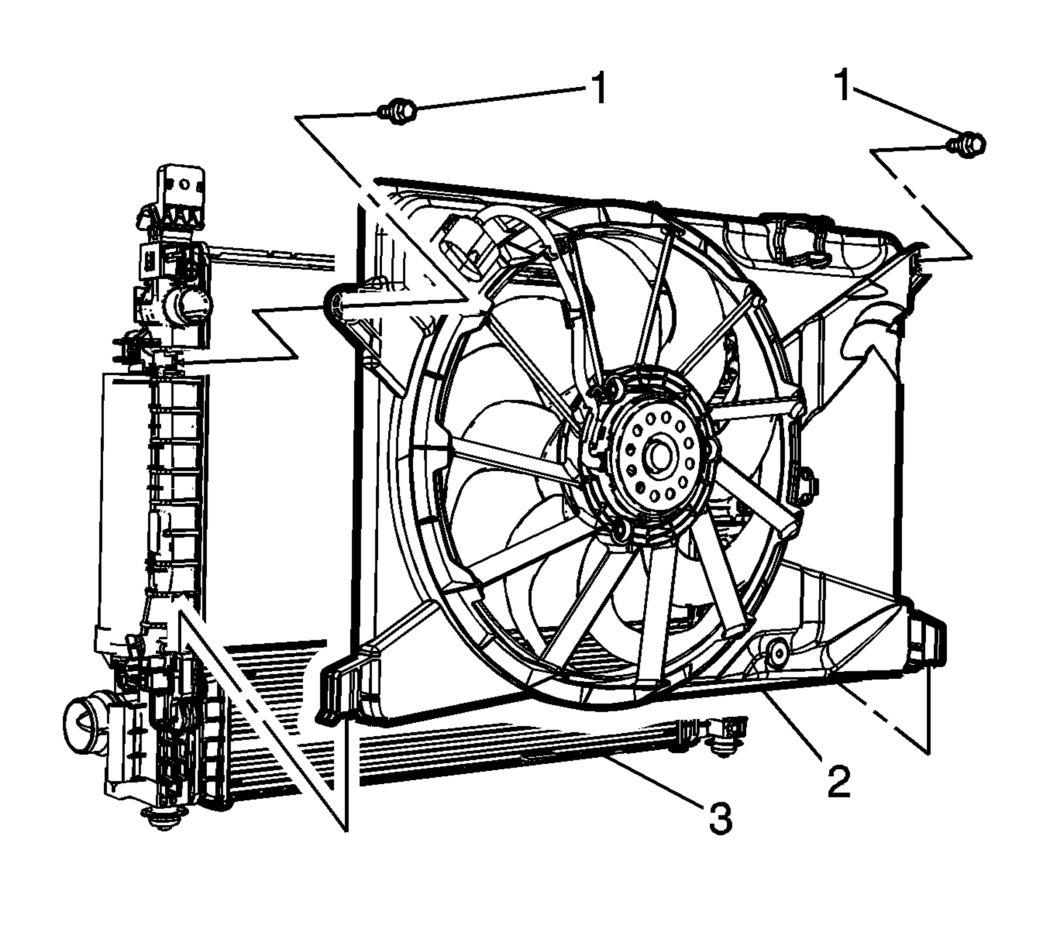

- Position the engine cooling fan (2) to the radiator (3).
- Install the engine cooling fan retaining bolts (1) and tighten to 10 N.m (89 lb in).

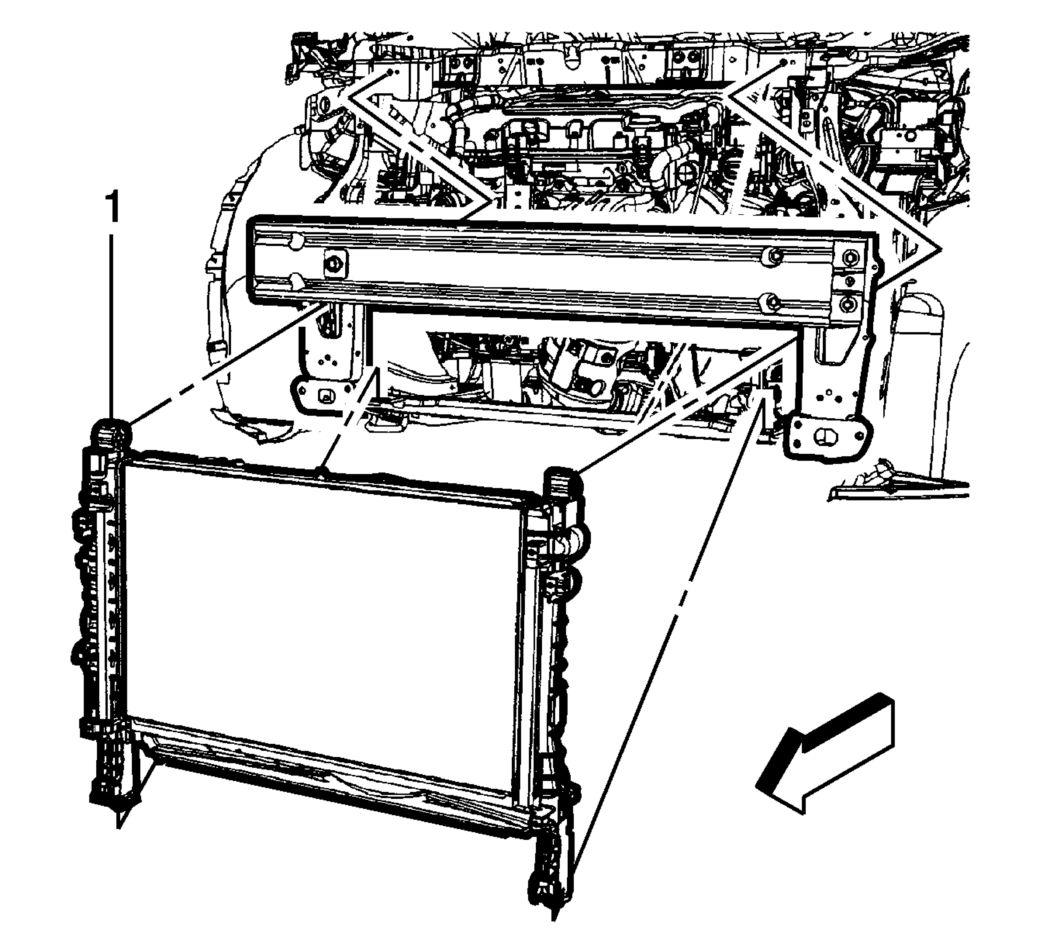

- Reposition the radiator, and install both radiator upper brackets. Refer to Radiator Upper Bracket Replacement (LUV) .
- Install the temperature sensor to the radiator. Refer to Engine Coolant Temperature Sensor Replacement (Water Outlet)Engine Coolant Temperature Sensor Replacement (Radiator) .

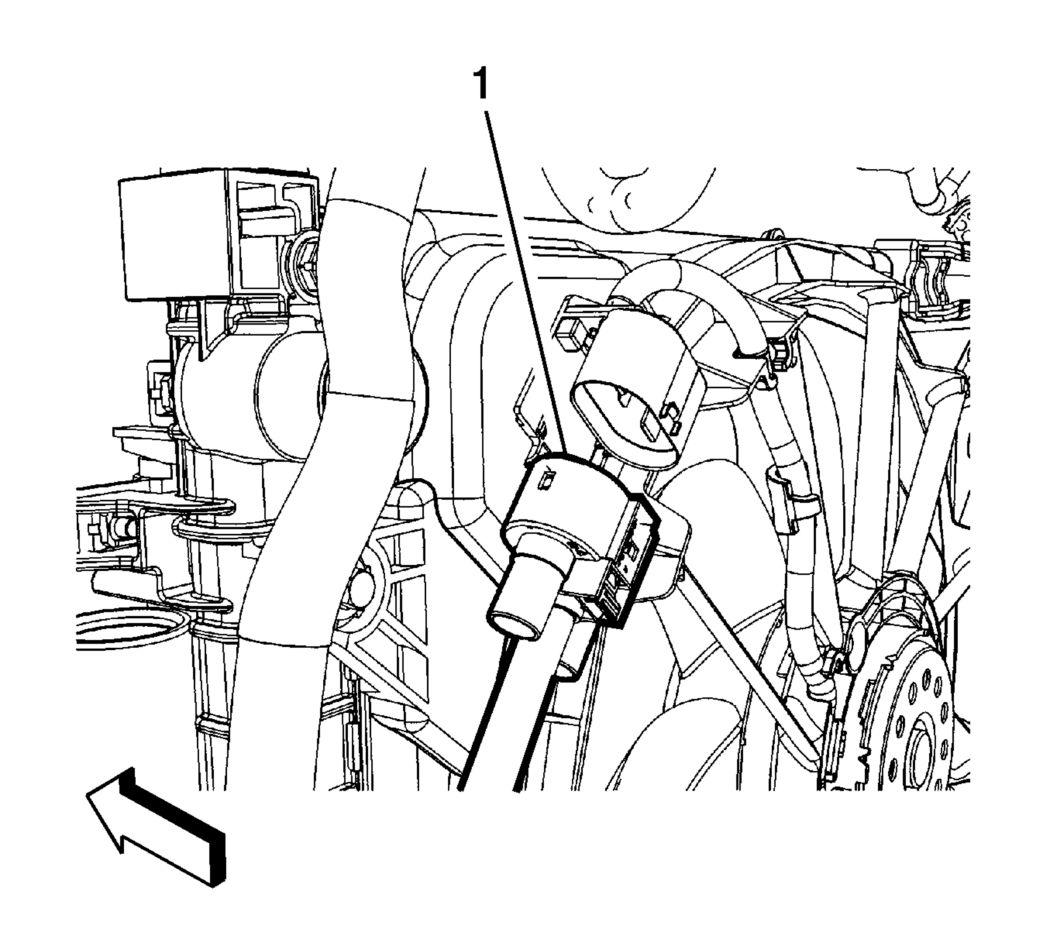

- Connect the coolant fan wiring harness connector (1).
- Install the condenser. Refer to Air Conditioning Condenser Replacement (LUV) .
- Install the charge air cooler. Refer to Charge Air Cooler Replacement .
- Install the radiator air lower baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement (LUV) .
- Install the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (LUV) .
- Install the front bumper lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Trax) .
- Install the center support bracket. Refer to Front Bumper Fascia Center Support Replacement .
- Install the radiator inlet hose to the radiator. Refer to Radiator Outlet Hose Replacement (LUV) .
- Install the radiator outlet hose to the radiator. Refer to Radiator Outlet Hose Replacement (LUV) .
- Fill the air conditioning refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
- Fill the coolant fluid. Refer to Cooling System Draining and Filling .
- Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
CAUTION:
Refer to Fastener Caution .
