Air Conditioning Condenser Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

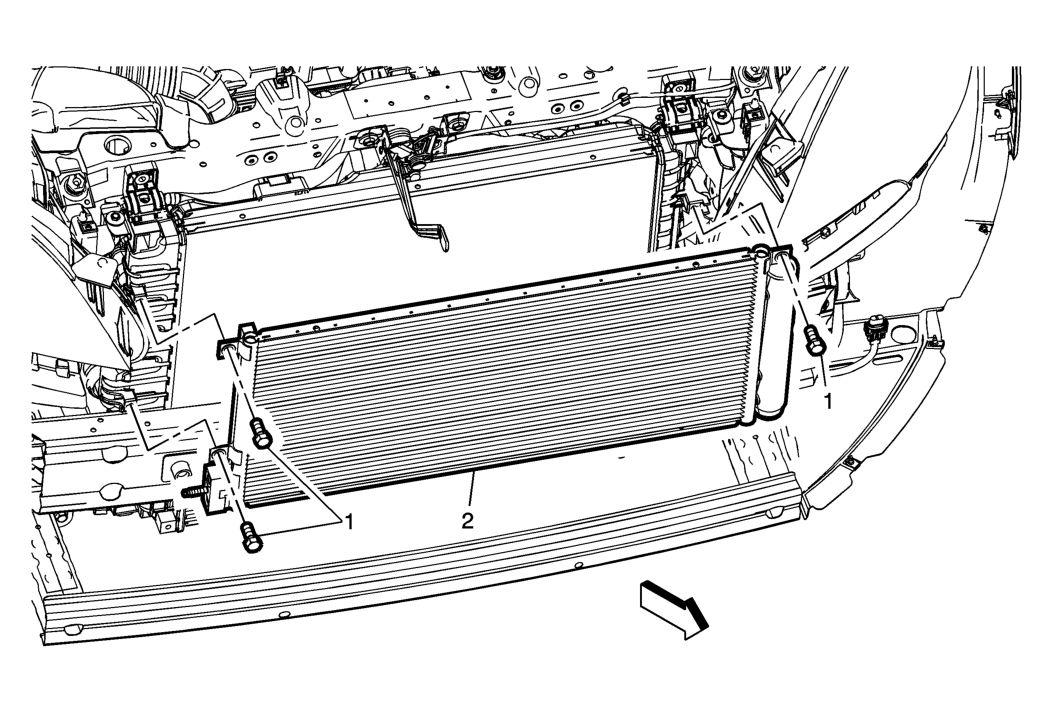

Fig 1: Air Conditioning Condenser

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) . Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) . Remove the radiator air lower and upper baffles. Refer to Radiator Air Lower Baffle and Deflector Replacement (LUV) , and Radiator Air Upper Baffle and Deflector Replacement (LUV) . Remove air conditioning condenser hose assembly from the condenser and position out of the way. Refer to Air Conditioning Condenser Hose Replacement (LUV) .
1	Air Conditioning Condenser Assembly Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Air Conditioning Condenser Assembly Procedure Transfer all necessary components.

Callout

Component Name

Preliminary Procedure

Recover refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
Remove the radiator air lower and upper baffles. Refer to Radiator Air Lower Baffle and Deflector Replacement (LUV) , and Radiator Air Upper Baffle and Deflector Replacement (LUV) .
Remove air conditioning condenser hose assembly from the condenser and position out of the way. Refer to Air Conditioning Condenser Hose Replacement (LUV) .

Air Conditioning Condenser Assembly Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Air Conditioning Condenser Assembly
Procedure
Transfer all necessary components.
