Engine Coolant Temperature Sensor Replacement (Water Outlet)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

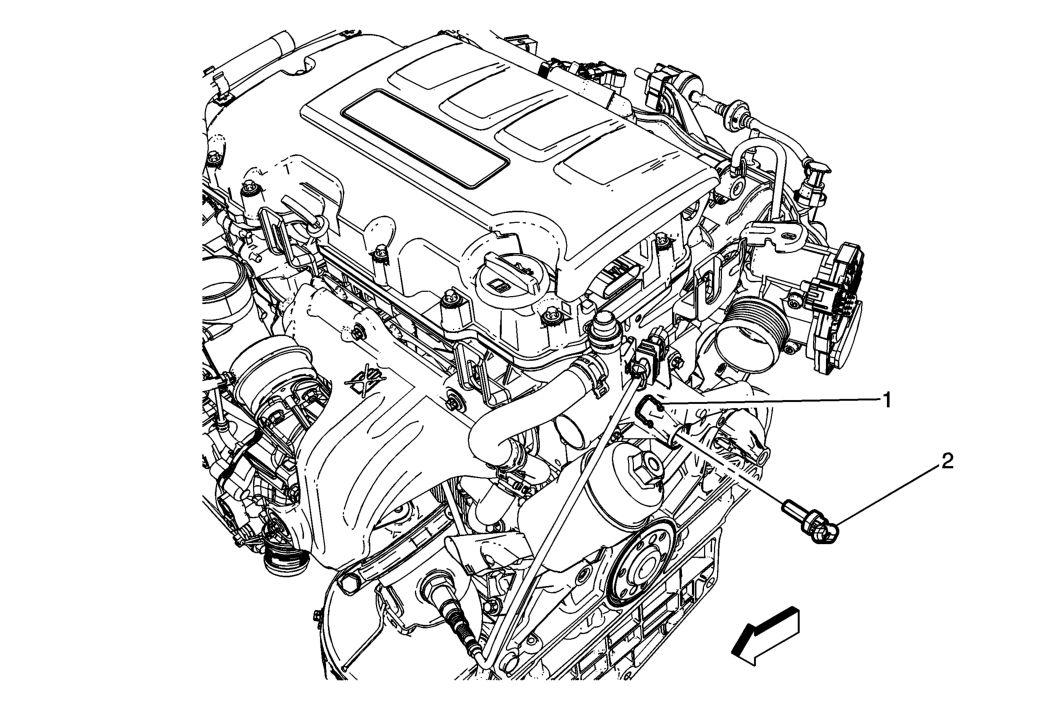

Fig 1: Engine Coolant Temperature Sensor (Water Outlet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling . Remove the charge air cooler outlet air hose. Refer to Charge Air Cooler Outlet Air Hose Replacement .
1	Engine Coolant Temperature Sensor Retainer
2	Engine Coolant Temperature Sensor Procedure Disconnect the engine coolant temperature sensor electrical connector.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling .
Remove the charge air cooler outlet air hose. Refer to Charge Air Cooler Outlet Air Hose Replacement .

Engine Coolant Temperature Sensor Retainer

Engine Coolant Temperature Sensor
Procedure
Disconnect the engine coolant temperature sensor electrical connector.
